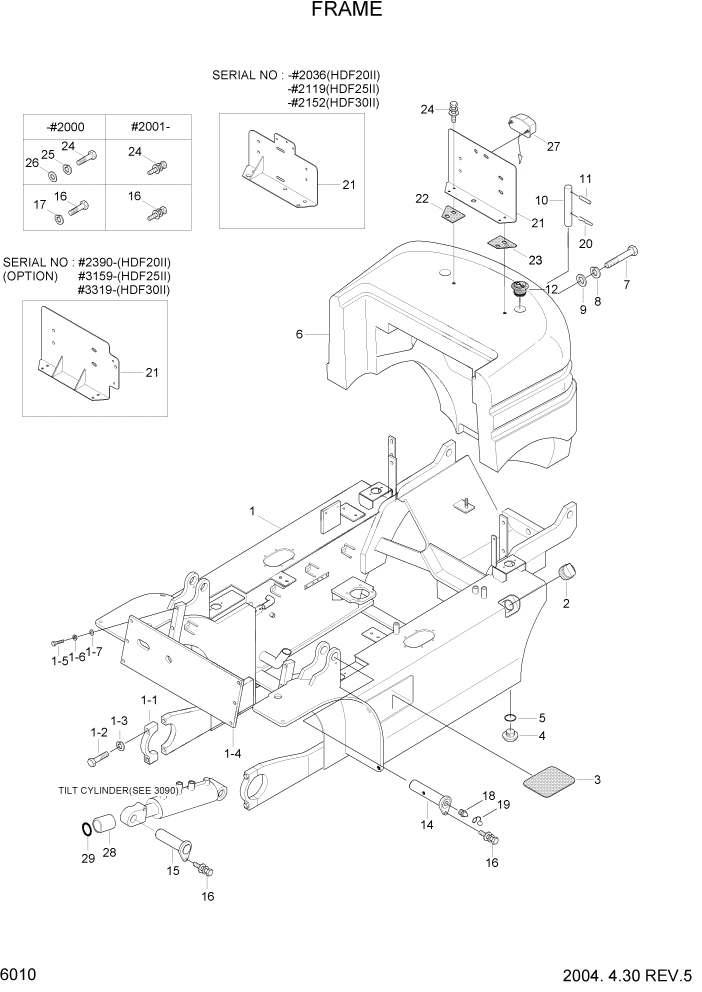

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 6010 FRAME СТРУКТУРА

1

F12100205Y

FRAME ASSY

HDF20/25-2 #1457

1шт.

1

F12100206Y

FRAME ASSY

HDF20/25-2 #1458 - #1494

1шт.

1

F12100207Y

FRAME ASSY

HDF20/25-2 #1495 - #1558

1шт.

1

F12100208Y

FRAME ASSY

HDF20/25-2 #1559 - #1584

1шт.

1

F12100209Y

FRAME ASSY

HDF20/25-2 #1585 - #1646

1шт.

1

F12100010Y

FRAME ASSY

HDF20/25-2 #1647 - #1704

1шт.

1

F12100011Y

FRAME ASSY

HDF20-2 #1705 - #2002

1шт.

1

F12100011H

FRAME ASSY

HDF20-2 #2003 - #2020

1шт.

1

F12100012H

FRAME ASSY

HDF20-2 #2021 - #2047

1шт.

1

F12100013H

FRAME ASSY

HDF20-2 #2048 - #2303

1шт.

1

F12100014

FRAME ASSY

HDF20-2 #2304 - #2308

1шт.

1

F12100015

FRAME ASSY

HDF20-2 #2309 - #2359

1шт.

1

F12100016

FRAME ASSY

HDF20-2 #2360

1шт.

1

F12100011Y

FRAME ASSY

HDF25-2 #1705 - #2020

1шт.

1

F12100011H

FRAME ASSY

HDF25-2 #2021 - #2023

1шт.

1

F12100012H

FRAME ASSY

HDF25-2 #2024 - #2142

1шт.

1

F12100013H

FRAME ASSY

HDF25-2 #2143 - #2806

1шт.

1

F12100014

FRAME ASSY

HDF25-2 #2807 - #2833

1шт.

1

F12100015

FRAME ASSY

HDF25-2 #2834 - #3063

1шт.

1

F12100016

FRAME ASSY

HDF25-2 #3064

1шт.

1

F12100205Y

FRAME ASSY

HDF30-2 #1413

1шт.

1

F12100206Y

FRAME ASSY

HDF30-2 #1414 - #1438

1шт.

1

F12100207Y

FRAME ASSY

HDF30-2 #1439 - #1486

1шт.

1

F12100208Y

FRAME ASSY

HDF30-2 #1487 - #1526

1шт.

1

F12100209Y

FRAME ASSY

HDF30-2 #1527 - #1576

1шт.

1

F12100010Y

FRAME ASSY

HDF30-2 #1577 - #1618

1шт.

1

F12100011Y

FRAME ASSY

HDF30-2 #1619 - #2026

1шт.

1

F12100011H

FRAME ASSY

HDF30-2 #2027 - #2030

1шт.

1

F12100012H

FRAME ASSY

HDF30-2 #2031 - #2170

1шт.

1

F12100013H

FRAME ASSY

HDF30-2 #2171 - #2909

1шт.

1

F12100014

FRAME ASSY

HDF30-2 #2910 - #2959

1шт.

1

F12100015

FRAME ASSY

HDF30-2 #2960 - #3189

1шт.

1

F12100016

FRAME ASSY

HDF30-2 #3190

1шт.

1-1

FAC0700130

CAP

2шт.

1-2

201514075

BOLT-HEX

4шт.

1-3

233314000

WASHER-SPRING

4шт.

1-4

F23120801Y

PLATE-DASH

HDF20/25-2 #1585 - #1704

1шт.

1-4

F12120240Y

PLATE-DASH

HDF20-2 #1705 - #2002

1шт.

1-4

F12120240H

PLATE-DASH

HDF20-2 #2003

1шт.

1-4

F12120240Y

PLATE-DASH

HDF25-2 #1705 - #2023

1шт.

1-4

F12120240H

PLATE-DASH

HDF25-2 #1724

1шт.

1-4

F23120801Y

PLATE-DASH

HDF30-2 #1527 - #1618

1шт.

1-4

F12120240Y

PLATE-DASH

HDF30-2 #1619 - #2026

1шт.

1-4

F12120240H

PLATE-DASH

HDF30-2 #2027

1шт.

1-5

211512040

BOLT-HEX

HDF20/25-2 #1585 - #1704

4шт.

1-5

211512040

BOLT-HEX

HDF20/25-2 #1705

6шт.

1-5

211512040

BOLT-HEX

HDF30-2 #1527 - #1618

4шт.

1-5

211512040

BOLT-HEX

HDF30-2 #1619

6шт.

1-6

233312000

WASHER-SPRING

HDF20/25-2 #1585 - #1704

4шт.

1-6

233312000

WASHER-SPRING

HDF20/25-2 #1705

6шт.

1-6

233312000

WASHER-SPRING

HDF30-2 #1527 - #1618

4шт.

1-6

233312000

WASHER-SPRING

HDF30-2 #1619

6шт.

1-7

231112000

WASHER-PLAIN

HDF20/25-2 #1585 - #1704

4шт.

1-7

231112000

WASHER-PLAIN

HDF20/25-2 #1705

6шт.

1-7

231112000

WASHER-PLAIN

HDF30-2 #1527 - #1618

4шт.

1-7

231112000

WASHER-PLAIN

HDF30-2 #1619

6шт.

2

ED10040000

CAP-FUEL

1шт.

3

F12100640

STEP MAT

2шт.

4

FAC0700590-03

PLUG-MAGNETIC

#2001

2шт.

5

P392-240000

WASHER-COPPER

#2001

2шт.

6

F12110012Y

COUNTER WEIGHT

HDF20-2 #2002

1шт.

6

F12110013H

COUNTER WEIGHT

HDF20-2 #2003

1шт.

6

F12110022Y

COUNTER WEIGHT

HDF25-2 #2023

1шт.

6

F12110023H

COUNTER WEIGHT

HDF25-2 #2024

1шт.

6

F12110032Y

COUNTER WEIGHT

HDF30-2 #2026

1шт.

6

F12110033H

COUNTER WEIGHT

HDF30-2 #2027

1шт.

7

FAC0701210

BOLT-HEX

HDF20-2

1шт.

7

F12100651

BOLT-HEX

HDF25-2

1шт.

7

F12100661

BOLT-HEX

HDF30-2

1шт.

8

233330000

WASHER-SPRING

1шт.

9

3004631321-01

WASHER

1шт.

10

F13100050

BAR

HDF20-2 #2334

1шт.

10

F13100051

BAR

HDF20-2 #2335

1шт.

10

F13100050

BAR

HDF25-2 #2951

1шт.

10

F13100051

BAR

HDF25-2 #2952

1шт.

10

F13100050

BAR

HDF30-2 #3088

1шт.

10

F13100051

BAR

HDF30-2 #3089

1шт.

11

245312050

PIN-SPRING

1шт.

12

F12110090Y

CAP

2шт.

14

FAC0700610Y-01

PIN

HDF20-2 #2002

2шт.

14

FAC0700610H-01

PIN

HDF20-2 #2003

2шт.

14

FAC0700610Y-01

PIN

HDF20-2 #2023

2шт.

14

FAC0700610H-01

PIN

HDF20-2 #2024

2шт.

14

FAC0700610Y-01

PIN

HDF20-2 #2026

2шт.

14

FAC0700610H-01

PIN

HDF20-2 #2027

2шт.

15

FHC1002200

PIN

2шт.

16

201510025

BOLT-HEX

#2000

4шт.

16

S037-102522

BOLT-W/WASHER

#2001

4шт.

17

233310000

WASHER-SPRING

#2000

4шт.

18

2G1110000

NIPPLE-GREASE

2шт.

19

450400146

CAP-GREASE NIPPLE

#2000

15шт.

20

248814000

PIN-SPLIT

1шт.

21

F12110100Y

NUMBER PLATE

HDF20-2,DOM #2036

1шт.

21

Q101207000H-03

BRACKET-NUMBER PLATE

HDF20-2,DOM #2037 - #2389

1шт.

21

Q101207000H-03

BRACKET-NUMBER PLATE

HDF20-2,DOM,STD #2390

1шт.

21

F12110100Y

NUMBER PLATE

HDF25-2,DOM #2119

1шт.

21

Q101207000H-03

BRACKET-NUMBER PLATE

HDF25-2,DOM #2120 - #3158

1шт.

21

Q101207000H-03

BRACKET-NUMBER PLATE

HDF25-2,DOM,STD #3159

1шт.

21

F12110100Y

NUMBER PLATE

HDF30-2,DOM #2052

1шт.

21

Q101207000H-03

BRACKET-NUMBER PLATE

HDF30-2,DOM #2053 - #3318

1шт.

21

Q101207000H-03

BRACKET-NUMBER PLATE

HDF30-2,DOM,STD #3319

1шт.

22

F12110070

RUBBER CUSHON

DOMESTIC

1шт.

23

F12110080

RUBBER CUSHON

DOMESTIC

1шт.

24

201508015

BOLT-HEX

DOMESTIC #2000

2шт.

24

S035-081522

BOLT-W/WASHER

#2001

2шт.

25

233308000

WASHER-SPRING

DOMESTIC #2000

2шт.

26

231108000

WASHER-PLAIN

DOMESTIC #2000

2шт.

27

320004320

LICENSE LAMP

HDF20-2,DOM #2256

1шт.

27

21FG-10040

LAMP-LICENSE(12V)

HDF20-2,DOM #2257

1шт.

27

320004320

LICENSE LAMP

HDF25-2,DOM #2657

1шт.

27

21FG-10040

LAMP-LICENSE(12V)

HDF25-2,DOM #2658

1шт.

27

320004320

LICENSE LAMP

HDF30-2,DOM #2695

1шт.

27

21FG-10040

LAMP-LICENSE(12V)

HDF30-2,DOM #2696

1шт.

28

31FE-70040

SPACER-TILT CYL

#2110

2шт.

28

31FE-70040

SPACER-TILT CYL

#2353

2шт.

28

31FE-70040

SPACER-TILT CYL

#2375

2шт.

29

S631-030004

O-RING

#2110

2шт.

29

S631-030004

O-RING

#2353

2шт.

29

S631-030004

O-RING

#2375

2шт.

30

F12160200

NUMBER PLATE BRACKET

HDF20-2,DOM,OPT #2390

1шт.

30

F12160200

NUMBER PLATE BRACKET

HDF25-2,DOM,OPT #3159

1шт.

30

F12160200

NUMBER PLATE BRACKET

HDF30-2,DOM,OPT #3319

1шт.
