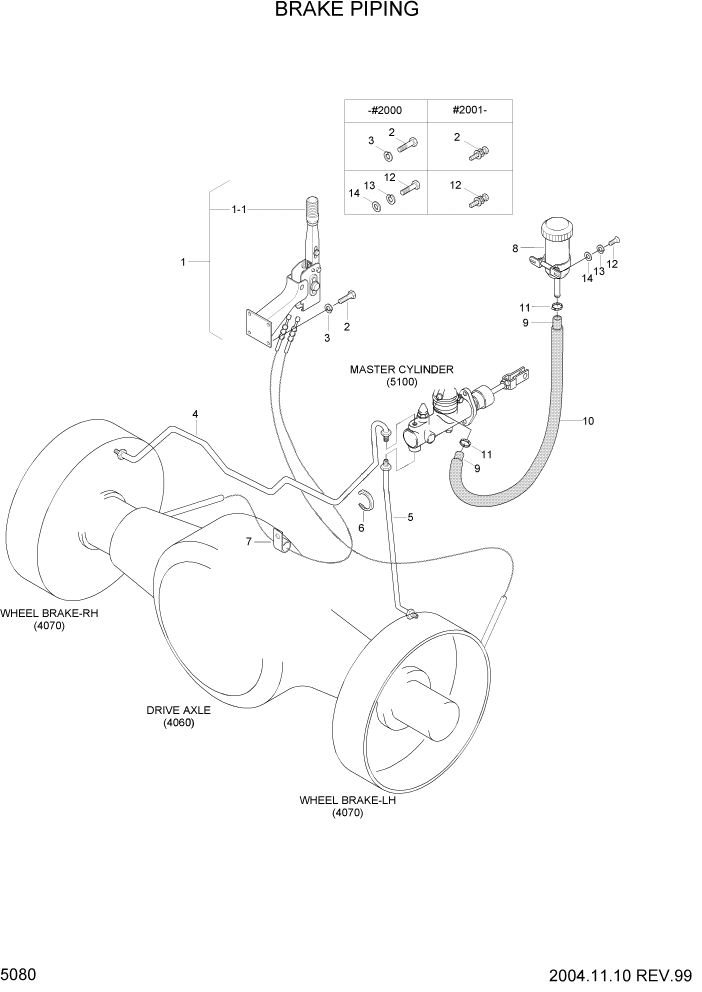

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 5080 BRAKE PIPING СИСТЕМА УПРАВЛЕНИЯ

1

FAC0600620-01

LEVER-PARKING

HDF20-2 #2134

1шт.

1

FAC0600621

P/LEVER ASSY

HDF20-2 #2135 - #2468

1шт.

1

FAC0600622

P/LEVER ASSY

HDF20-2 #2469

1шт.

1

FAC0600620-01

LEVER-PARKING

HDF25-2 #2435

1шт.

1

FAC0600621

P/LEVER ASSY

HDF25-2 #2436 - #3400

1шт.

1

FAC0600622

P/LEVER ASSY

HDF25-2 #3401

1шт.

1

FAC0600620-01

LEVER-PARKING

HDF30-2 #2434

1шт.

1

FAC0600621

P/LEVER ASSY

HDF30-2 #2435 - #3636

1шт.

1

FAC0600622

P/LEVER ASSY

HDF30-2 #3637

1шт.

1-1

F53331200

GRIP

1шт.

2

201508015

BOLT-HEX

#2000

4шт.

2

S035-082022

BOLT-W/WASHER

#2001

4шт.

3

233308000

WASHER-SPRING

#2000

4шт.

4

F12350040

PIPE-BRAKE/RH

1шт.

5

F12350050

PIPE-BRAKE/LH

1шт.

6

FAC0600600

TIE-WRAP

1шт.

7

2E3226000

CLIP

1шт.

8

F11333030

RESERVOIR TANK ASSY

HDF20/25-2 #1457

1шт.

8

F11333031

RESERVOIR TANK ASSY

HDF20/25-2 #1458

1шт.

8

F11333030

RESERVOIR TANK ASSY

HDF30-2 #1413

1шт.

8

F11333031

RESERVOIR TANK ASSY

HDF30-2 #1414

1шт.

9

F12350060

HOSE-MASTER CYL

HDF20-2 #2422

1шт.

9

F12350061

HOSE-MASTER CYL

HDF20-2 #2423

1шт.

9

F12350060

HOSE-MASTER CYL

HDF25-2 #3263

1шт.

9

F12350061

HOSE-MASTER CYL

HDF25-2 #3264

1шт.

9

F12350060

HOSE-MASTER CYL

HDF30-2 #3430

1шт.

9

F12350061

HOSE-MASTER CYL

HDF30-2 #3431

1шт.

10

F12350070

HOSE-COVER

HDF20-2 #2422

1шт.

10

F12350071

HOSE-COVER

HDF20-2 #2423

1шт.

10

F12350070

HOSE-COVER

HDF25-2 #3263

1шт.

10

F12350071

HOSE-COVER

HDF25-2 #3264

1шт.

10

F12350070

HOSE-COVER

HDF30-2 #3430

1шт.

10

F12350071

HOSE-COVER

HDF30-2 #3431

1шт.

11

FAC0600450

CLAMP

2шт.

12

20C106012

SCREW-ROUND HEAD

#2000

2шт.

12

S035-061522

BOLT-W/WASHER

#2001

2шт.

13

233306000

WASHER-SPRING

#2000

2шт.

14

231106000

WASHER-PLAIN

#2000

2шт.
