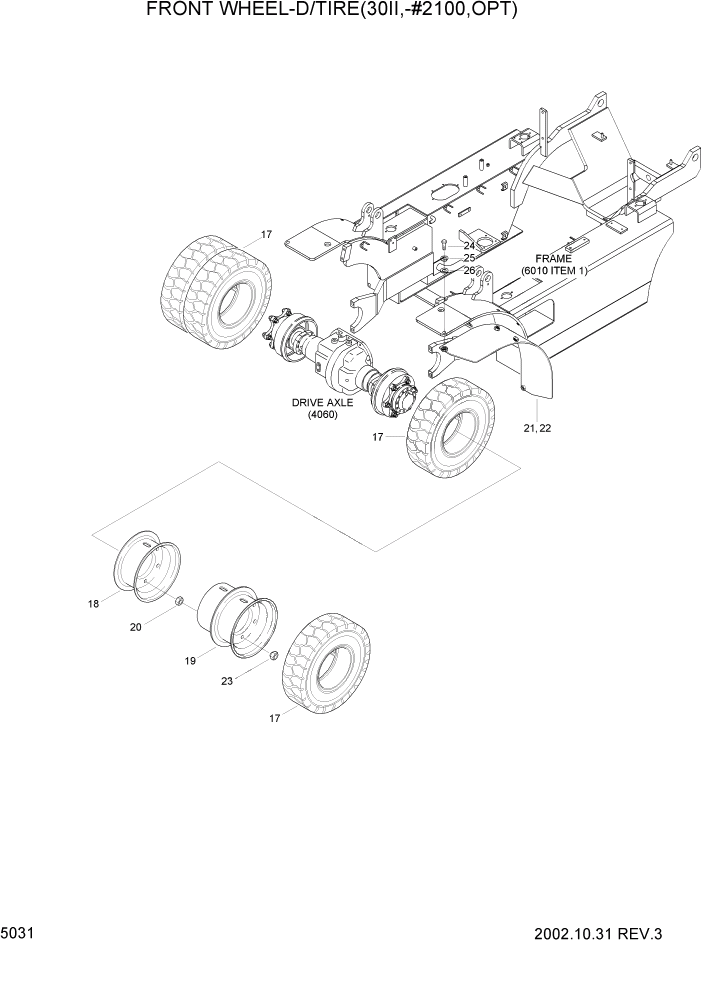

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 5031 FRONT WHEEL-D/TIRE(30II,-#2100,OPT) СИСТЕМА УПРАВЛЕНИЯ

*

@

FRONT WHEEL ASSY

NOT #2100

1шт.

17

FAC0400180

TIRE ASSY(6.00-15-10PR)

4шт.

17

Q101259000

TIRE-PNEUMATIC

1шт.

17

Q101260000

TUBE

1шт.

17

Q101261000

FLAP

1шт.

17

F42400040

TIRE-SOLID(6-15/4.5)

4шт.

18

FAC0400230

RIM-WHEEL

2шт.

19

FAC0400240

RIM-WHEEL

2шт.

20

FAC0400250

NUT-HEX

#2303

12шт.

21

F12930020Y

COVER-FENDER,LH

2шт.

21

F12930020G

COVER-FENDER,LH

2шт.

22

F12930030Y

COVER-FENDER,RH

2шт.

22

F12930030G

COVER-FENDER,RH

2шт.

23

FAC0400260

NUT-HEX

#2303

12шт.

24

201510035

BOLT-HEX

8шт.

25

233310000

WASHER-SPRING

8шт.

26

231110000

WASHER-PLAIN

8шт.
