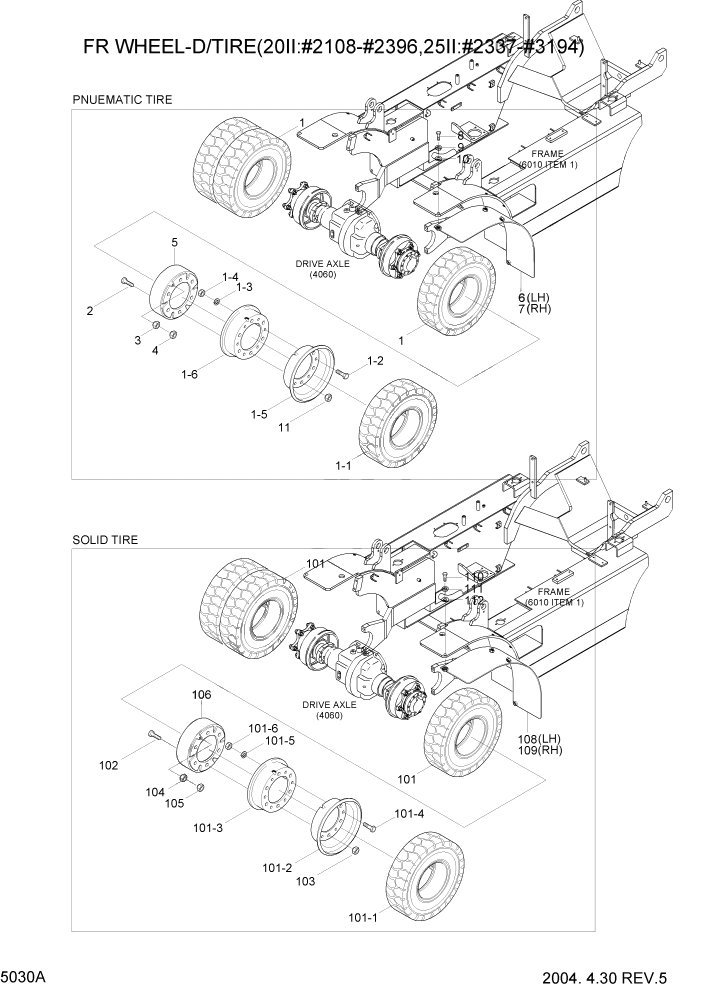

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 5030A FR WHEEL-D/TIRE(20II:-#2396,25II:-#3194) СИСТЕМА УПРАВЛЕНИЯ

*

@

DOUBLE TIRE ASSY

NOT #2108 - #2396

4шт.

*

@

DOUBLE TIRE ASSY

NOT #2337 - #3194

4шт.

1

FAC0400360

FRONT WHEEL ASSY

4шт.

1-1

81FA-21300

TIRE ASSY

1шт.

1-1-1

81FA-21310

TIRE

NOT SHOWN

1шт.

1-1-2

81FA-21320

TUBE

NOT SHOWN

1шт.

1-1-3

81FA-21330

FLAP

NOT SHOWN

1шт.

1-2

S017-160302

BOLT-HEX

6шт.

1-3

S411-160002

WASHER-SPRING

6шт.

1-4

221316001

NUT-HEX

6шт.

1-5

FAC0400020B

RIM-WHEEL

1шт.

1-6

FAC0400030B

RIM-WHEEL

1шт.

2

FAC0400300

BOLT-SERRATION

12шт.

3

83FA-10200

NUT-INNER

12шт.

4

83FA-10210

NUT-OUTER

12шт.

5

34B2732310

SPACER

2шт.

6

FAC0400320H

COVER-FENDER,LH

1шт.

7

FAC0400310H

COVER-FENDER,RH

1шт.

8

S017-100352

BOLT-HEX

8шт.

9

S411-100002

WASHER-SPRING

8шт.

10

S403-101002

WASHER-PLAIN

8шт.

11

FAC0400330

NUT-HEX

12шт.

*

@

DOUBLE TIRE ASSY

NOT #2108 - #2396

1шт.

*

@

DOUBLE TIRE ASSY

NOT #2337 - #3194

1шт.

101

F42400010

FRONT WHEEL ASSY

1шт.

101-1

3631006900

TIRE-SOLID

1шт.

101-2

FAC0400020B

RIM-WHEEL

1шт.

101-3

FAC0400030B

RIM-WHEEL

1шт.

101-4

S017-160302

BOLT-HEX

6шт.

101-5

S411-160002

WASHER-SPRING

6шт.

101-6

221316001

NUT-HEX

6шт.

102

FAC0400300

BOLT-SERRATION

12шт.

103

FAC0400330

NUT-HEX

12шт.

104

83FA-10200

NUT-INNER

12шт.

105

83FA-10210

NUT-OUTER

12шт.

106

34B2732310

SPACER

2шт.

108

FAC0400320H

COVER-FENDER,LH

1шт.

109

FAC0400310H

COVER-FENDER,RH

1шт.

110

S017-100352

BOLT-HEX

8шт.

111

S411-100002

WASHER-SPRING

8шт.

112

S403-101002

WASHER-PLAIN

8шт.
