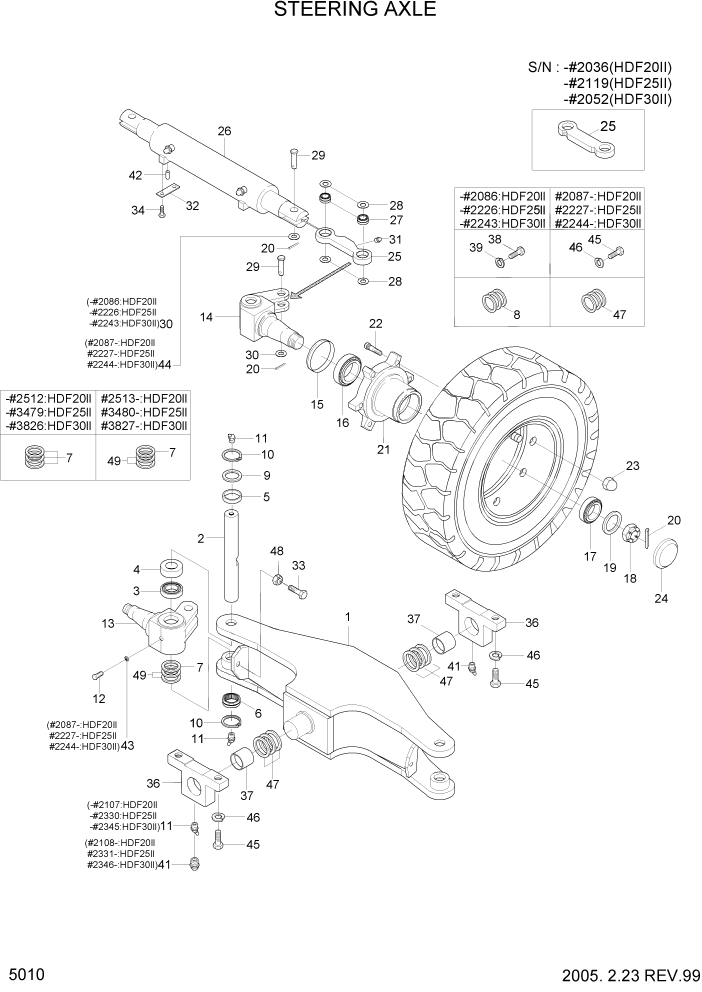

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 5010 STEERING AXLE СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
*
F12411003
STEERING AXLE ASSY
HDF20/25-2 #1584
1шт.
*
F12411004
STEERING AXLE ASSY
HDF20/25-2 #1585 - #1646
1шт.
*
F12411005
STEERING AXLE ASSY
HDF20/25-2 #1647 - #2036
1шт.
*
F12411006
STEERING AXLE ASSY
HDF20-2 #2037 - #2086
1шт.
*
F12411007
STEERING AXLE ASSY
HDF20-2 #2087 - #2131
1шт.
*
F12411008
STEERING AXLE ASSY
HDF20-2 #2132 - #2132
1шт.
*
F12411009
STEERING AXLE ASSY
HDF20-2 #2132 - #2299
1шт.
*
F12411010
STEERING AXLE ASSY
HDF20-2 #2300
1шт.
*
F12411005
STEERING AXLE ASSY
HDF20/25-2 #1647 - #2119
1шт.
*
F12411006
STEERING AXLE ASSY
HDF25-2 #2120 - #2226
1шт.
*
F12411007
STEERING AXLE ASSY
HDF25-2 #2227 - #2421
1шт.
*
F12411008
STEERING AXLE ASSY
HDF25-2 #2422 - #2422
1шт.
*
F12411009
STEERING AXLE ASSY
HDF25-2 #2422 - #2768
1шт.
*
F12411010
STEERING AXLE ASSY
HDF25-2 #2769
1шт.
*
F12411003
STEERING AXLE ASSY
HDF30-2 #1511
1шт.
*
F12411004
STEERING AXLE ASSY
HDF30-2 #1512 - #1576
1шт.
*
F12411005
STEERING AXLE ASSY
HDF30-2 #1577 - #2152
1шт.
*
F12411006
STEERING AXLE ASSY
HDF30-2 #2153 - #2243
1шт.
*
F12411007
STEERING AXLE ASSY
HDF30-2 #2244 - #2425
1шт.
*
F12411008
STEERING AXLE ASSY
HDF30-2 #2426 - #2426
1шт.
*
F12411009
STEERING AXLE ASSY
HDF30-2 #2426 - #2841
1шт.
*
F12411010
STEERING AXLE ASSY
HDF30-2 #2842
1шт.
1
FHC0501100B
STEERING AXLE
HDF20/25-2 #1584
1шт.
1
F12410100B
STEERING AXLE
HDF20/25-2 #1585 - #1646
1шт.
1
F12410101B
STEERING AXLE
HDF20/25-2 #1647 - #2131
1шт.
1
F12410102
STEERING AXLE
HDF20-2 #2132 - #2512
1шт.
1
F12410103
STEERING AXLE
HDF20-2 #2513
1шт.
1
F12410101B
STEERING AXLE
HDF20/25-2 #1647 - #2421
1шт.
1
F12410102
STEERING AXLE
HDF25-2 #2422 - #3479
1шт.
1
F12410103
STEERING AXLE
HDF25-2 #3480
1шт.
1
FHC0501100B
STEERING AXLE
HDF30-2 #1511
1шт.
1
F12410100B
STEERING AXLE
HDF30-2 #1512 - #1576
1шт.
1
F12410101B
STEERING AXLE
HDF30-2 #1577 - #2425
1шт.
1
F12410102
STEERING AXLE
HDF30-2 #2426 - #3826
1шт.
1
F12410103
STEERING AXLE
HDF30-2 #3827
1шт.
2
FHC0503000
PIN-KING
HDF20-2 #2086
2шт.
2
FHC0503001
PIN-KING
HDF20-2 #2087 - #2512
2шт.
2
FHC0503002
PIN-KING
HDF20-2 #2513
2шт.
2
FHC0503000
PIN-KING
HDF25-2 #2226
2шт.
2
FHC0503001
PIN-KING
HDF25-2 #2227 - #3479
2шт.
2
FHC0503002
PIN-KING
HDF25-2 #3480
2шт.
2
FHC0503000
PIN-KING
HDF30-2 #2243
2шт.
2
FHC0503001
PIN-KING
HDF30-2 #2244 - #3826
2шт.
2
FHC0503002
PIN-KING
HDF30-2 #3827
2шт.
3
81F6-52200
BEARING-THRUST
HDF20-2 #2513
2шт.
3
81F6-52200
BEARING-THRUST
HDF25-2 #3480
2шт.
3
81F6-52200
BEARING-THRUST
HDF30-2 #3827
2шт.
4
3555001800-01
CAP-BEARING THRUST
HDF20-2 #2512
2шт.
4
3555001800-01
CAP-BEARING THRUST
HDF25-2 #3479
2шт.
4
3555001800-01
CAP-BEARING THRUST
HDF30-2 #3826
2шт.
6
9022900007
BEARING-NEEDLE
HDF20-2 #2131
4шт.
6
81FH-50600
BEARING-NEEDLE
HDF20-2 #2513
4шт.
6
9022900007
BEARING-NEEDLE
HDF25-2 #2421
4шт.
6
81FH-50600
BEARING-NEEDLE
HDF25-2 #3480
4шт.
6
9022900007
BEARING-NEEDLE
HDF30-2 #2425
4шт.
6
81FH-50600
BEARING-NEEDLE
HDF30-2 #3827
4шт.
7
81FG-50800
SHIM(0.2T)
HDF20-2 #2513
2шт.
7
81FG-50800
SHIM(0.2T)
HDF25-2 #3480
2шт.
7
81FG-50800
SHIM(0.2T)
HDF30-2 #3827
2шт.
8
3591000800-01
SHIM(0.5T)
HDF20-2 #2086
6шт.
8
3591000800-01
SHIM(0.5T)
HDF25-2 #2226
6шт.
8
3591000800-01
SHIM(0.5T)
HDF30-2 #2243
6шт.
9
81FG-50400
PLUG-PLATE
HDF20-2 #2513
4шт.
9
81FG-50400
PLUG-PLATE
HDF25-2 #3480
4шт.
9
81FG-50400
PLUG-PLATE
HDF30-2 #3827
4шт.
10
S601-030004
RING-RETAINING
HDF20-2 #2512
4шт.
10
S602-050004
RING-RETAINING
HDF20-2 #2513
4шт.
10
S601-030004
RING-RETAINING
HDF25-2 #3479
4шт.
10
S602-050004
RING-RETAINING
HDF25-2 #3480
4шт.
10
S601-030004
RING-RETAINING
HDF30-2 #3826
4шт.
10
S602-050004
RING-RETAINING
HDF30-2 #3827
4шт.
11
2G3110000
NIPPLE-GREASE
HDF20-2 #2107
4шт.
11
S652-810008
NIPPLE-GREASE
HDF20-2 #2108 - #2512
6шт.
11
S652-810008
NIPPLE-GREASE
HDF20-2 #2513
2шт.
11
2G3110000
NIPPLE-GREASE
HDF25-2 #2330
4шт.
11
S652-810008
NIPPLE-GREASE
HDF25-2 #2331 - #3479
6шт.
11
S652-810008
NIPPLE-GREASE
HDF25-2 #3480
2шт.
11
2G3110000
NIPPLE-GREASE
HDF30-2 #2345
4шт.
11
S652-810008
NIPPLE-GREASE
HDF30-2 #2346 - #3826
6шт.
11
S652-810008
NIPPLE-GREASE
HDF30-2 #3827
2шт.
12
6600350000
SCREW SET
HDF20-2 #2086
2шт.
12
FAD0500150
BOLT-SPECIAL
HDF20-2 #2087
2шт.
12
6600350000
SCREW SET
HDF25-2 #2226
2шт.
12
FAD0500150
BOLT-SPECIAL
HDF25-2 #2227
2шт.
12
6600350000
SCREW SET
HDF30-2 #2243
2шт.
12
FAD0500150
BOLT-SPECIAL
HDF30-2 #2244
2шт.
13
FHC0502010
KNUCKLE-RH
HDF20-2 #2086
1шт.
13
FHC0502011
KNUCKLE-RH
HDF20-2 #2087 - #2512
1шт.
13
FHC0502012
KNUCKLE-RH
HDF20-2 #2513
1шт.
13
FHC0502010
KNUCKLE-RH
HDF25-2 #2226
1шт.
13
FHC0502011
KNUCKLE-RH
HDF25-2 #2227 - #3479
1шт.
13
FHC0502012
KNUCKLE-RH
HDF25-2 #3480
1шт.
13
FHC0502010
KNUCKLE-RH
HDF30-2 #2243
1шт.
13
FHC0502011
KNUCKLE-RH
HDF30-2 #2244 - #3826
1шт.
13
FHC0502012
KNUCKLE-RH
HDF30-2 #3827
1шт.
14
FHC0502020
KNUCKLE-LH
HDF20-2 #2086
1шт.
14
FHC0502021
KNUCKLE-LH
HDF20-2 #2087 - #2512
1шт.
14
FHC0502022
KNUCKLE-LH
HDF20-2 #2513
1шт.
14
FHC0502020
KNUCKLE-LH
HDF25-2 #2226
1шт.
14
FHC0502021
KNUCKLE-LH
HDF25-2 #2227 - #3479
1шт.
14
FHC0502022
KNUCKLE-LH
HDF25-2 #3480
1шт.
14
FHC0502020
KNUCKLE-LH
HDF30-2 #2243
1шт.
14
FHC0502021
KNUCKLE-LH
HDF30-2 #2244 - #3826
1шт.
14
FHC0502022
KNUCKLE-LH
HDF30-2 #3827
1шт.
16
9022106208
BEARING-TAPER ROLLER
2шт.
17
9022106206
BEARING-TAPER ROLLER
2шт.
18
22B124000
NUT-LOW CASTLE
2шт.
19
S403-241002
WASHER-PLAIN
2шт.
20
S461-500452
PIN-SPLIT
6шт.
21
ED08020000B
HUB
2шт.
22
3677012900-01
BOLT-HUB
12шт.
23
3678003000-02
NUT-HUB
12шт.
24
Q100881000
CAP-HUB
HDF20/25-2 #1457
2шт.
24
Q100881001
CAP-HUB
HDF20/25-2 #1458
2шт.
24
Q100881000
CAP-HUB
HDF30-2 #1413
2шт.
24
Q100881000
CAP-HUB
HDF30-2 #1414
2шт.
25
ED08030000B-03
LINK-STEERING
HDF20-2 #2036
2шт.
25
ED08030001
LINK-STEERING
HDF20-2 #2037
2шт.
25
ED08030000B-03
LINK-STEERING
HDF25-2 #2119
2шт.
25
ED08030001
LINK-STEERING
HDF25-2 #2120
2шт.
25
ED08030000B-03
LINK-STEERING
HDF30-2 #2052
2шт.
25
ED08030001
LINK-STEERING
HDF30-2 #2053
2шт.
26
@
STEERING CYL ASSY
NOT
1шт.
28
Q100338000
WASHER-THRUST
8шт.
29
Q100325000
PIN-STEER LINK
4шт.
30
231120000
WASHER-PLAIN
HDF20-2 #2086
4шт.
30
S403-201002
WASHER-PLAIN
HDF20-2 #2087
2шт.
30
231120000
WASHER-PLAIN
HDF25-2 #2226
4шт.
30
S403-201002
WASHER-PLAIN
HDF25-2 #2227
2шт.
30
231120000
WASHER-PLAIN
HDF30-2 #2243
4шт.
30
S403-201002
WASHER-PLAIN
HDF30-2 #2244
2шт.
31
S651-060008
NIPPLE-GREASE
HDF20-2 #2512
4шт.
31
S651-060008
NIPPLE-GREASE
HDF20-2 #2513
8шт.
31
S651-060008
NIPPLE-GREASE
HDF25-2 #3479
4шт.
31
S651-060008
NIPPLE-GREASE
HDF25-2 #3480
8шт.
31
S651-060008
NIPPLE-GREASE
HDF30-2 #3826
4шт.
31
S651-060008
NIPPLE-GREASE
HDF30-2 #3827
8шт.
32
Q100327000
PLATE-LOCK
2шт.
33
201512050
BOLT-HEX
HDF20/25-2 #1584
2шт.
33
206514060
BOLT-HEX
HDF20/25-2 #1585
2шт.
33
201512050
BOLT-HEX
HDF30-2 #1511
2шт.
33
206514060
BOLT-HEX
HDF30-2 #1512
2шт.
34
211516035
BOLT-HEX
HDF20-2 #2086
4шт.
34
S018-160452
BOLT-HEX
HDF20-2 #2087
4шт.
34
211516035
BOLT-HEX
HDF25-2 #2226
4шт.
34
S018-160452
BOLT-HEX
HDF25-2 #2227
4шт.
34
211516035
BOLT-HEX
HDF30-2 #2243
4шт.
34
S018-160452
BOLT-HEX
HDF30-2 #2244
4шт.
35
221112001
NUT-HEX
HDF20/25-2 #1584
2шт.
35
221114000
NUT-HEX
HDF20-2 #1585 - #2086
2шт.
35
221114000
NUT-HEX
HDF25-2 #1585 - #2226
2шт.
35
221112001
NUT-HEX
HDF30-2 #1511
2шт.
35
221114000
NUT-HEX
HDF30-2 #1512 - #2243
2шт.
36
F12410010
BLOCK-TRUNNION
HDF20-2 #2107
2шт.
36
F12410011
BLOCK-TRUNNION
HDF20-2 #2108
2шт.
36
F12410010
BLOCK-TRUNNION
HDF25-2 #2330
2шт.
36
F12410011
BLOCK-TRUNNION
HDF25-2 #2331
2шт.
36
F12410010
BLOCK-TRUNNION
HDF30-2 #2345
2шт.
36
F12410011
BLOCK-TRUNNION
HDF30-2 #2346
2шт.
37
FAC0500160
BUSHING
2шт.
38
201520055
BOLT-HEX
HDF20-2 #2086
4шт.
38
201520055
BOLT-HEX
HDF25-2 #2226
4шт.
38
201520055
BOLT-HEX
HDF30-2 #2243
4шт.
39
233320000
WASHER-SPRING
HDF20-2 #2086
4шт.
39
233320000
WASHER-SPRING
HDF25-2 #2226
4шт.
39
233320000
WASHER-SPRING
HDF30-2 #2243
4шт.
41
2G3107000
NIPPLE-GREASE
HDF20-2 #2107
2шт.
41
2G3107000
NIPPLE-GREASE
HDF25-2 #2330
2шт.
41
2G3107000
NIPPLE-GREASE
HDF30-2 #2345
2шт.
42
6600366100
PIN-PS CYLINDER
HDF20/25-2 #1585
1шт.
42
6600366100
PIN-PS CYLINDER
HDF30-2 #1512
1шт.
43
S411-100002
WASHER-SPRING
HDF20-2 #2087
2шт.
43
S411-100002
WASHER-SPRING
HDF25-2 #2227
2шт.
43
S411-100002
WASHER-SPRING
HDF30-2 #2244
2шт.
45
S017-200552
BOLT-HEX
HDF20-2 #2087
4шт.
45
S017-200552
BOLT-HEX
HDF25-2 #2227
4шт.
45
S017-200552
BOLT-HEX
HDF30-2 #2244
4шт.
47
3591000800-01
SHIM(0.5T)
HDF20-2 #2087
3шт.
47
3591000800-01
SHIM(0.5T)
HDF25-2 #2227
3шт.
47
3591000800-01
SHIM(0.5T)
HDF30-2 #2244
3шт.
48
S205-141002
NUT-HEX
HDF20-2 #2087
2шт.
48
S205-141002
NUT-HEX
HDF25-2 #2227
2шт.
48
S205-141002
NUT-HEX
HDF30-2 #2244
2шт.
49
81FG-50900
SHIM(0.5T)
HDF20-2 #2087
4шт.
49
81FG-50900
SHIM(0.5T)
HDF25-2 #2227
4шт.
49
81FG-50900
SHIM(0.5T)
HDF30-2 #2244
4шт.
Выбрано товаров: 212
