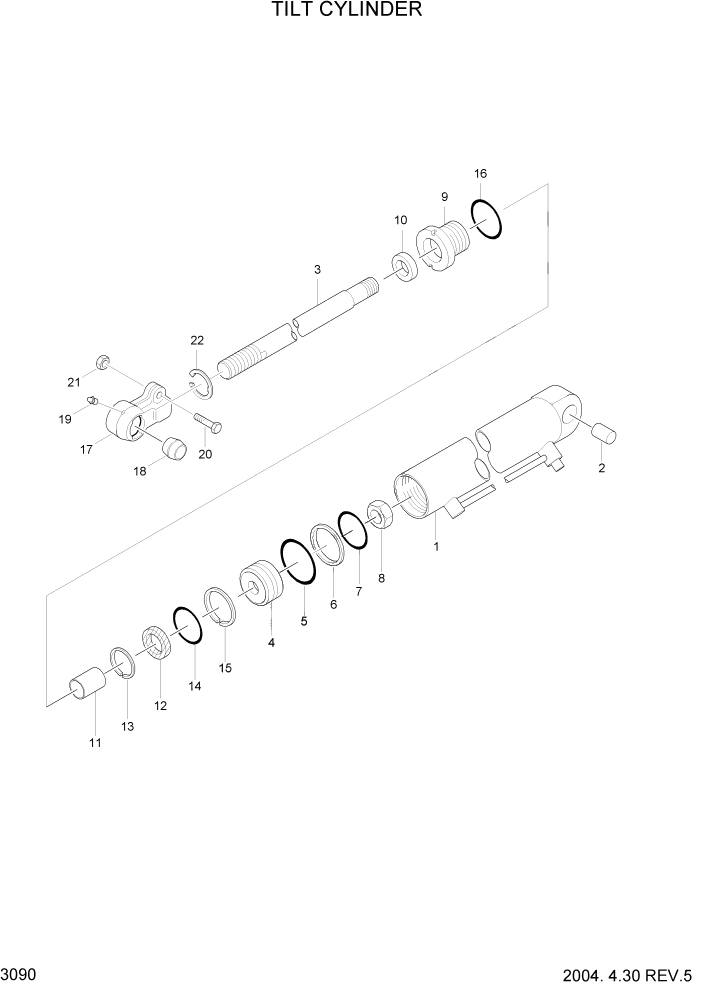

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 3090 TILT CYLINDER ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

F23620111Y

TILT CYLINDER ASSY

HDF20-2,6/12 #2002

2шт.

F23620111H

TILT CYLINDER ASSY

HDF20-2,6/12 #2003 - #2109

2шт.

F23620111H

TILT CYLINDER ASSY

HDF20-2,6/12 #2110 - #2250

2шт.

F23620112H

TILT CYLINDER ASSY

HDF20-2,6/12 #2251

2шт.

F23620111Y

TILT CYLINDER ASSY

HDF25-2,6/12 #2023

2шт.

F23620111H

TILT CYLINDER ASSY

HDF25-2,6/12 #2024 - #2352

2шт.

F23620111H

TILT CYLINDER ASSY

HDF25-2,6/12 #2353 - #2639

2шт.

F23620112H

TILT CYLINDER ASSY

HDF25-2,6/12 #2640

2шт.

F23620111Y

TILT CYLINDER ASSY

HDF30-2,6/12 #2026

2шт.

F23620111H

TILT CYLINDER ASSY

HDF30-2,6/12 #2027 - #2374

2шт.

F23620111H

TILT CYLINDER ASSY

HDF30-2,6/12 #2375 - #2674

2шт.

F23620112H

TILT CYLINDER ASSY

HDF30-2,6/12 #2675

2шт.

F23620121Y

TILT CYLINDER ASSY

HDF20-2,6/6 #2002

2шт.

F23620121H

TILT CYLINDER ASSY

HDF20-2,6/6 #2003 - #2109

2шт.

F23620121Y

TILT CYLINDER ASSY

HDF25-2,6/6 #2023

2шт.

F23620121H

TILT CYLINDER ASSY

HDF25-2,6/6 #2024 - #2352

2шт.

F23620121Y

TILT CYLINDER ASSY

HDF30-2,6/6 #2026

2шт.

F23620121H

TILT CYLINDER ASSY

HDF30-2,6/6 #2027 - #2374

2шт.

N1

@

TUBE ASSY

NOT

1шт.

2

S731-035040

BUSHING-DU

1шт.

N3

@

ROD ASSY

NOT

1шт.

4

13T247-0

PISTON

HDF20-2 #2250

1шт.

4

31Y3-16720

PISTON

HDF20-2 #2251

1шт.

4

13T247-0

PISTON

HDF25-2 #2639

1шт.

4

31Y3-16720

PISTON

HDF25-2 #2640

1шт.

4

13T247-0

PISTON

HDF30-2 #2674

1шт.

4

31Y3-16720

PISTON

HDF30-2 #2675

1шт.

K5

S631-060004

O-RING

#2250

1шт.

K5

Y430-070022

SEAL-PISTON

#2251

1шт.

K5

S631-060004

O-RING

#2639

1шт.

K5

Y430-070022

SEAL-PISTON

#2640

1шт.

K5

S631-060004

O-RING

#2674

1шт.

K5

Y430-070022

SEAL-PISTON

#2675

1шт.

NK6

E6611240

RING WEAR

NOT #2250

1шт.

NK6

E6611240

RING WEAR

NOT #2639

1шт.

NK6

E6611240

RING WEAR

NOT #2674

1шт.

K7

S631-022004

O-RING

1шт.

8

E2021083

NUT-HEX

HDF20-2 #2250

1шт.

8

31YC-65130

NUT-NYLON

HDF20-2 #2251

1шт.

8

E2021083

NUT-HEX

HDF25-2 #2639

1шт.

8

31YC-65130

NUT-NYLON

HDF25-2 #2640

1шт.

8

E2021083

NUT-HEX

HDF30-2 #2674

1шт.

8

31YC-65130

NUT-NYLON

HDF30-2 #2675

1шт.

9

31Y3-16730

GLAND

1шт.

K10

Y120-030011

WIPER-DUST

1шт.

11

S731-030030

BUSHING-DU

1шт.

K12

Y200-030011

SEAL-ROD

1шт.

K13

Y180-030020

RING-BACK UP

1шт.

K14

S632-065004

O-RING

1шт.

K15

S642-065003

RING-BACK UP

1шт.

K16

S632-070004

O-RING

1шт.

17

31Y3-16740

ROD-EYE

1шт.

18

31Y3-16750

BUSHING

1шт.

19

S651-810002

NIPPLE-GREASE

1шт.

20

S015-120502

BOLT-HEX

1шт.

21

S205-121002

NUT-HEX

1шт.

22

31FE-70210

SHIM(1.0T)

#2001

1шт.

K

FAC10150K

SEAL KIT(5-7,10,12-16)

#2250

1шт.

K

31Y3-16760

SEAL KIT

#2251

1шт.

K

FAC10150K

SEAL KIT(5-7,10,12-16)

#2639

1шт.

K

31Y3-16760

SEAL KIT

#2640

1шт.

K

FAC10150K

SEAL KIT(5-7,10,12-16)

#2674

1шт.

K

31Y3-16760

SEAL KIT

#2675

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
