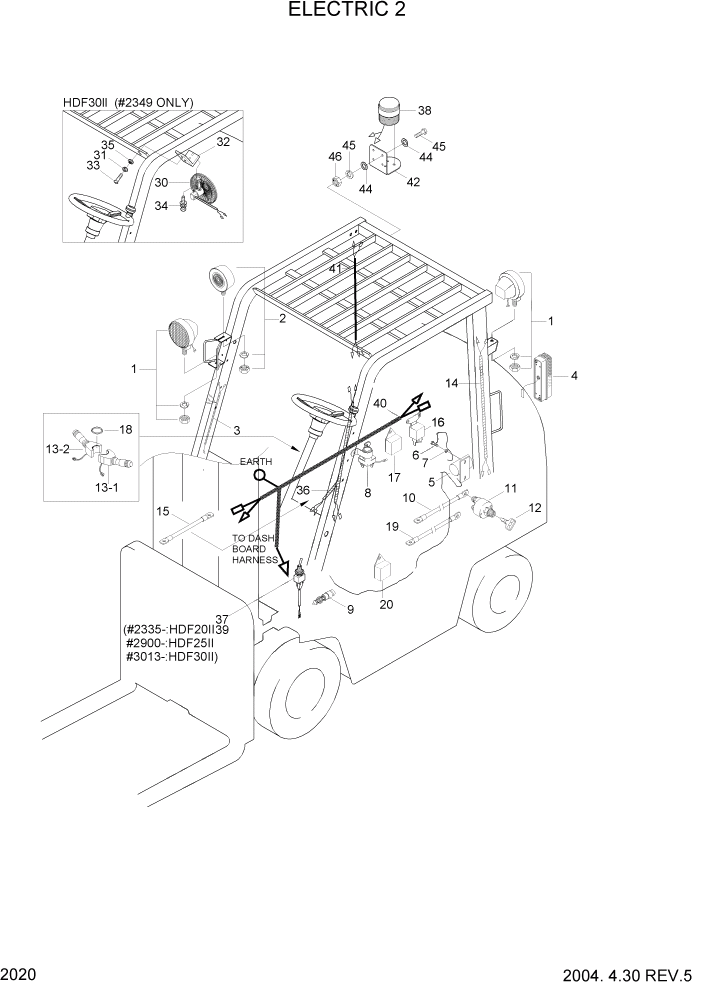

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 2020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

F12840010

LAMP SUB ASSY-WORK

HDF20-2 #2314

3шт.

1

F12840010

LAMP SUB ASSY-WORK

HDF25-2 #2859

3шт.

1

F12840010

LAMP SUB ASSY-WORK

HDF30-2 #2998

3шт.

2

F12840020

LAMP-FLASHER

HDF20-2 #2314

2шт.

2

F12840020

LAMP-FLASHER

HDF25-2 #2859

2шт.

2

F12840020

LAMP-FLASHER

HDF30-2 #2998

2шт.

3

F53800030

HARNESS-SUPPORT/RH

HDF20-2 #2000

1шт.

3

F32800030

HARNESS-SUPPORT(RH)

HDF20-2 #2001 - #2314

1шт.

3

F53800030

HARNESS-SUPPORT/RH

HDF25-2 #2000

1шт.

3

F32800030

HARNESS-SUPPORT(RH)

HDF25-2 #2001 - #2859

1шт.

3

F53800030

HARNESS-SUPPORT/RH

HDF30-2 #2000

1шт.

3

F32800030

HARNESS-SUPPORT(RH)

HDF30-2 #2001 - #2998

1шт.

3

F53800040

HARNESS-SUPPORT/LH

HDF20-2 #2000

1шт.

3

F32800040

HARNESS-SUPPORT(LH)

HDF20-2 #2001 - #2314

1шт.

3

F53800040

HARNESS-SUPPORT/LH

HDF25-2 #2000

1шт.

3

F32800040

HARNESS-SUPPORT(LH)

HDF25-2 #2001 - #2859

1шт.

3

F53800040

HARNESS-SUPPORT/LH

HDF30-2 #2000

1шт.

3

F32800040

HARNESS-SUPPORT(LH)

HDF30-2 #2001 - #2998

1шт.

4

320004350

COMB LAMP ASSY-RR

HDF20-2 #1509

2шт.

4

F12840050

COMB LAMP ASSY-RR

HDF20-2 #1510 - #2314

2шт.

4

320004350

COMB LAMP ASSY-RR

HDF25-2 #1509

2шт.

4

F12840050

COMB LAMP ASSY-RR

HDF25-2 #1510 - #2859

2шт.

4

320004350

COMB LAMP ASSY-RR

HDF30-2 #1453

2шт.

4

F12840050

COMB LAMP ASSY-RR

HDF30-2 #1454 - #2998

2шт.

5

320008080

HORN-BACK

12V

1шт.

6

201506010

BOLT-HEX

2шт.

7

233306000

WASHER-SPRING

2шт.

8

320019180

START RELAY

HDF20-2 #2332

1шт.

8

320019181

START RELAY

HDF20-2 #2333

1шт.

8

320019180

START RELAY

HDF25-2 #2884

1шт.

8

320019181

START RELAY

HDF25-2 #2885

1шт.

8

320019180

START RELAY

HDF30-2 #3035

1шт.

8

320019181

START RELAY

HDF30-2 #3036

1шт.

9

320019170

SWITCH-STOP

1шт.

10

F12810031

CABLE(M/S-EARTH)

HDF20/25-2 #1457

1шт.

10

F12810050

CABLE

HDF20/25-2 #1458

1шт.

10

F12810031

CABLE(M/S-EARTH)

HDF30-2 #1413

1шт.

10

F12810050

CABLE

HDF30-2 #1414

1шт.

11

F12200070

MASTER SW ASSY

#2000

1шт.

11

79073031

SWITCH-MASTER

#2001

1шт.

12

79073033

KEY-MASTER LOCK

2шт.

12

79073033

KEY-MASTER LOCK

2шт.

13

F23830010

COMBINATION SW ASSY

HDF20-2 #2529

1шт.

13

F23830011

COMBINATION SW ASSY

HDF20-2 #2530

1шт.

13

F23830010

COMBINATION SW ASSY

HDF25-2 #3547

1шт.

13

F23830011

COMBINATION SW ASSY

HDF25-2 #3548

1шт.

13

F23830010

COMBINATION SW ASSY

HDF30-2 #3899

1шт.

13

F23830011

COMBINATION SW ASSY

HDF30-2 #3900

1шт.

13-1

01507500AA

GEAR SELECTOR(F/R 1)

HDF20-2 #2001 - #2529

1шт.

13-1

21FJ-10320

GEAR SELECTOR

HDF20-2 #2530

1шт.

13-1

01507500AA

GEAR SELECTOR(F/R 1)

HDF25-2 #2001 - #3547

1шт.

13-1

21FJ-10320

GEAR SELECTOR

HDF25-2 #3548

1шт.

13-1

01507500AA

GEAR SELECTOR(F/R 1)

HDF30-2 #2001 - #3899

1шт.

13-1

21FJ-10320

GEAR SELECTOR

HDF30-2 #3900

1шт.

13-2

01507600AB

T/S,LIGHT,HORN

HDF20-2 #2001 - #2529

1шт.

13-2

21FJ-10330

COMBINATION SWITCH

HDF20-2 #2530

1шт.

13-2

01507600AB

T/S,LIGHT,HORN

HDF25-2 #2001 - #3547

1шт.

13-2

21FJ-10330

COMBINATION SWITCH

HDF25-2 #3548

1шт.

13-2

01507600AB

T/S,LIGHT,HORN

HDF30-2 #2001 - #3899

1шт.

13-2

21FJ-10330

COMBINATION SWITCH

HDF30-2 #3900

1шт.

14

F13800080

HARNESS-WORKING LAMP

HDF20-2 #1457

1шт.

14

F13800140

HARNESS-WORK LAMP

HDF20-2 #1458 - #2314

1шт.

14

F13800080

HARNESS-WORKING LAMP

HDF25-2 #1457

1шт.

14

F13800140

HARNESS-WORK LAMP

HDF25-2 #1458 - #2859

1шт.

14

F13800080

HARNESS-WORKING LAMP

HDF30-2 #1413

1шт.

14

F13800140

HARNESS-WORK LAMP

HDF30-2 #1414 - #2998

1шт.

15

320031230

CABLE-GROUND

#2000

1шт.

15

320031200-01

CABLE-ENGINE/FRAME

#2001

1шт.

16

F12200040

RELAY-GLOW PLUG

1шт.

13

F23830011

COMBINATION SW ASSY

1шт.

17

F12200050

TIMER-GLOW PLUG

1шт.

18

FAC0701100-01

GROMMET

HDF20/25-2 #1382

2шт.

18

F12140020

GROMMET

HDF20/25-2 #1383

2шт.

18

FAC0701100-01

GROMMET

HDF30-2 #1353

2шт.

18

F12140020

GROMMET

HDF30-2 #1354

2шт.

19

F12810050

CABLE

#2001

1шт.

20

F12860010

DETECTOR

#2001

1шт.

30

21M1-3001

MINI FAN ASSY

HDF30-2 #2349

1шт.

31

S411-050002

WASHER-SPRING

HDF30-2 #2349

2шт.

32

71FE-00110

BRACKET-FAN

HDF30-2 #2349

1шт.

33

S161-050252

SCREW-CROSS R/ROUND

HDF30-2 #2349

2шт.

34

S131-051546

SCREW-W/WASHER

HDF30-2 #2349

2шт.

35

S403-052002

WASHER-PLAIN

HDF30-2 #2349

2шт.

36

21FE-19010

HARNESS-FAN

HDF30-2 #2349

1шт.

37

F12830040

SWITCH-TOGGLE

HDF30-2 #2349

1шт.

38

F23842010

STROBE LAMP-RED

HDF20-2 #2335

1шт.

38

F23842010

STROBE LAMP-RED

HDF25-2 #2900

1шт.

38

F23842010

STROBE LAMP-RED

HDF30-2 #3013

1шт.

39

F12830040

SWITCH-TOGGLE

HDF20-2 #2335

1шт.

39

F12830040

SWITCH-TOGGLE

HDF25-2 #2900

1шт.

39

F12830040

SWITCH-TOGGLE

HDF30-2 #3013

1шт.

40

F23802010

HARNESS-B/LAMP SW

HDF20-2 #2335

1шт.

40

F23802010

HARNESS-B/LAMP SW

HDF25-2 #2900

1шт.

40

F23802010

HARNESS-B/LAMP SW

HDF30-2 #3013

1шт.

41

21FE-10520

HARNESS-BEACON LAMP

HDF20-2 #2335

1шт.

41

21FE-10520

HARNESS-BEACON LAMP

HDF25-2 #2900

1шт.

41

21FE-10520

HARNESS-BEACON LAMP

HDF30-2 #3013

1шт.

42

F12110120

BRACKET-BEACON

HDF20-2 #2335

1шт.

42

F12110120

BRACKET-BEACON

HDF25-2 #2900

1шт.

42

F12110120

BRACKET-BEACON

HDF30-2 #3013

1шт.

43

S017-100552

BOLT-HEX

HDF20-2 #2335

2шт.

43

S017-100552

BOLT-HEX

HDF25-2 #2900

2шт.

43

S017-100552

BOLT-HEX

HDF30-2 #3013

2шт.

44

S403-102002

WASHER-PLAIN

HDF20-2 #2335

4шт.

44

S403-102002

WASHER-PLAIN

HDF25-2 #2900

4шт.

44

S403-102002

WASHER-PLAIN

HDF30-2 #3013

4шт.

45

S411-100002

WASHER-SPRING

HDF20-2 #2335

2шт.

45

S411-100002

WASHER-SPRING

HDF25-2 #2900

2шт.

45

S411-100002

WASHER-SPRING

HDF30-2 #3013

2шт.

46

S205-101002

NUT-HEX

HDF20-2 #2335

2шт.

46

S205-101002

NUT-HEX

HDF25-2 #2900

2шт.

46

S205-101002

NUT-HEX

HDF30-2 #3013

2шт.
