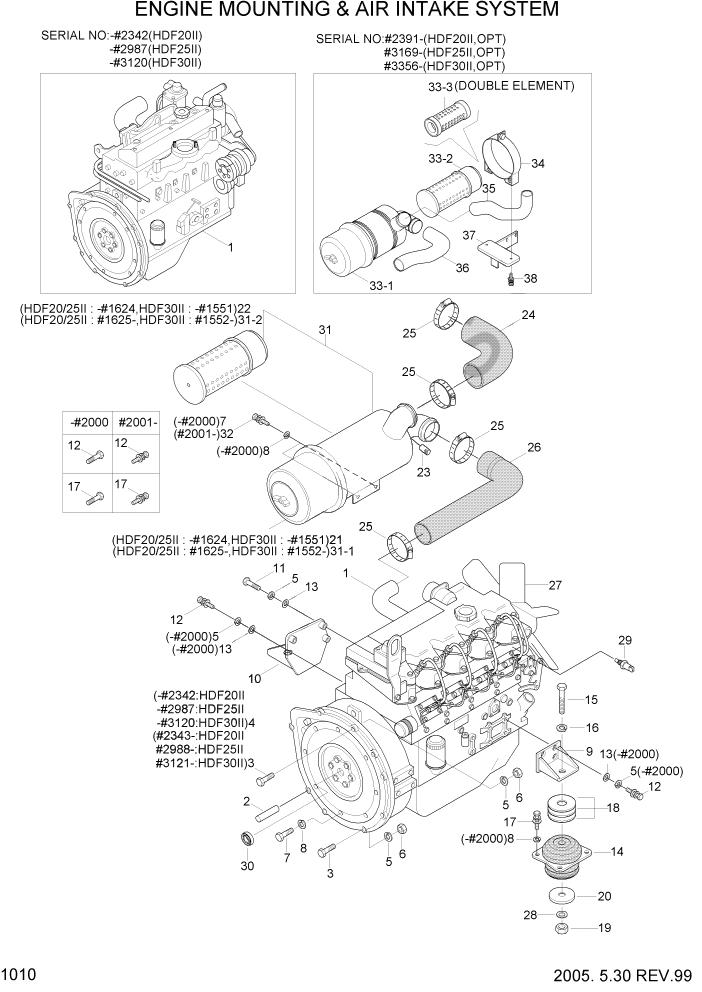

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 1010 ENGINE MOUNTING & AIR INTAKE SYSTEM СИСТЕМА ДВИГАТЕЛЯ
№
Артикул
Название
Примечание
Количество
1
F12200011
ENGINE ASSY
HDF20-2 #2024
1шт.
1
F12200012
ENGINE-EMISSIONIZED
HDF20-2 #2025 - #2342
1шт.
1
F12200013
ENGINE-EMISSIONIZED
HDF20-2 #2343
1шт.
1
F12200011
ENGINE ASSY
HDF25-2 #2094
1шт.
1
F12200012
ENGINE-EMISSIONIZED
HDF25-2 #2095 - #2987
1шт.
1
F12200013
ENGINE-EMISSIONIZED
HDF25-2 #2988
1шт.
1
F12200011
ENGINE ASSY
HDF30-2 #2115
1шт.
1
F12200012
ENGINE-EMISSIONIZED
HDF30-2 #2116 - #3120
1шт.
1
F12200013
ENGINE-EMISSIONIZED
HDF30-2 #3121
1шт.
2
FAC0100260
PIN-DOWEL
2шт.
3
201510045
BOLT-HEX
HDF20-2 #2342
5шт.
3
S017-100452
BOLT-HEX
HDF20-2 #2343
7шт.
3
201510045
BOLT-HEX
HDF25-2 #2987
5шт.
3
S017-100452
BOLT-HEX
HDF25-2 #2988
7шт.
3
201510045
BOLT-HEX
HDF30-2 #3120
5шт.
3
S017-100452
BOLT-HEX
HDF30-2 #3121
7шт.
4
211510020
BOLT-HEX
HDF20-2 #2342
2шт.
4
211510020
BOLT-HEX
HDF25-2 #2987
2шт.
4
211510020
BOLT-HEX
HDF30-2 #3120
2шт.
5
233310000
WASHER-SPRING
#2000
15шт.
5
S411-100002
WASHER-SPRING
#2001
10шт.
6
221310001
NUT-HEX
HDF20-2 #2342
5шт.
6
S205-101002
NUT-HEX
HDF20-2 #2343
7шт.
6
221310001
NUT-HEX
HDF25-2 #2987
5шт.
6
S205-101002
NUT-HEX
HDF25-2 #2988
7шт.
6
221310001
NUT-HEX
HDF30-2 #3120
5шт.
6
S205-101002
NUT-HEX
HDF30-2 #3121
7шт.
7
201508015
BOLT-HEX
#2000
10шт.
7
S015-080152
BOLT-HEX
#2001
8шт.
8
233308000
WASHER-SPRING
#2000
18шт.
8
S411-080002
WASHER-SPRING
#2001
8шт.
9
F12210020
BRACKET-ENG MTG,L/H
1шт.
10
F12210030
BRACKET-ENG MTG,R/H
1шт.
11
201510040
BOLT-HEX
#2000
3шт.
11
S017-100402
BOLT-HEX
#2001
3шт.
12
201510025
BOLT-HEX
#2000
5шт.
12
S037-102522
BOLT-W/WASHER
#2001
5шт.
13
232110000
WASHER-PLAIN
#2000
8шт.
13
232110000
WASHER-PLAIN
#2001
3шт.
14
F14300200
RUBBER-MOUNTING
HDF20/25-2 #1673
2шт.
14
F12200180
RUBBER-MOUNTING
HDF20/25-2 #1674 - #2000
2шт.
14
F12200170
RUBBER-MOUNTING
HDF20/25-2 #2001
2шт.
14
F14300200
RUBBER-MOUNTING
HDF30-2 #1596
2шт.
14
F12200180
RUBBER-MOUNTING
HDF30-2 #1597 - #2000
2шт.
14
F12200170
RUBBER-MOUNTING
HDF30-2 #2001
2шт.
15
201516120
BOLT-HEX
2шт.
16
233316000
WASHER-SPRING
#2000
2шт.
17
201508020
BOLT-HEX
#2000
8шт.
17
S035-082522
BOLT-W/WASHER
#2001
8шт.
18
5261027300-02
SHIM(1.0T)
HDF20-2 #2342
6шт.
18
F31330010
SHIM(1.0T)
HDF20-2 #2343
4шт.
18
5261027300-02
SHIM(1.0T)
HDF25-2 #2987
6шт.
18
F31330010
SHIM(1.0T)
HDF25-2 #2988
4шт.
18
5261027300-02
SHIM(1.0T)
HDF30-2 #3120
6шт.
18
F31330010
SHIM(1.0T)
HDF30-2 #3121
4шт.
19
FBC0100300
U-NUT
2шт.
20
FBC0100330
PLATE
HDF20/25/30-2 #2000
2шт.
20
FDE0100120
WASHER-REBOUND
HDF20-2 #2001 - #2128
2шт.
20
FDE0100110
WASHER-OVERLOAD
HDF20-2 #2129
2шт.
20
FDE0100120
WASHER-REBOUND
HDF25-2 #2001 - #2405
2шт.
20
FDE0100110
WASHER-OVERLOAD
HDF25-2 #2406
2шт.
20
FDE0100120
WASHER-REBOUND
HDF30-2 #2001 - #2414
2шт.
20
FDE0100110
WASHER-OVERLOAD
HDF30-2 #2415
2шт.
21
F12210011
AIR CLEANER HOUSING
HDF20/25-2 #1624
1шт.
21
F12210011
AIR CLEANER HOUSING
HDF30-2 #1551
1шт.
22
FHC0103201
ELEMENT-AIR CLEANER
HDF20/25-2 #1624
1шт.
22
FHC0103201
ELEMENT-AIR CLEANER
HDF30-2 #1551
1шт.
23
330003050
SENSOR-AIR CLEANER
HDF20-2 #2543
1шт.
23
330003050
SENSOR-AIR CLEANER
HDF25-2 #3549
1шт.
23
330003050
SENSOR-AIR CLEANER
HDF30-2 #3936
1шт.
24
F12220200
HOSE-AIR SUCTION
HDF20-2 #2390
1шт.
24
F12220200
HOSE-AIR SUCTION
HDF20-2,STD #2391
1шт.
24
F12220200
HOSE-AIR SUCTION
HDF25-2 #3168
1шт.
24
F12220200
HOSE-AIR SUCTION
HDF25-2,STD #3169
1шт.
24
F12220200
HOSE-AIR SUCTION
HDF30-2 #3355
1шт.
24
F12220200
HOSE-AIR SUCTION
HDF30-2,STD #3356
1шт.
25
2C5306900
CLAMP
#2000
4шт.
25
S520-065000
CLAMP-HOSE
#2001
4шт.
26
F12220100
HOSE-AIR INTAKE
HDF20-2 #2342
1шт.
26
F12220101
HOSE-AIR INTAKE
HDF20-2 #2343 - #2390
1шт.
26
F12220100
HOSE-AIR INTAKE
HDF20-2,STD #2391
1шт.
26
F12220100
HOSE-AIR INTAKE
HDF25-2 #2987
1шт.
26
F12220101
HOSE-AIR INTAKE
HDF25-2 #2988 - #3168
1шт.
26
F12220100
HOSE-AIR INTAKE
HDF25-2,STD #3169
1шт.
26
F12220100
HOSE-AIR INTAKE
HDF30-2 #3120
1шт.
26
F12220101
HOSE-AIR INTAKE
HDF30-2 #3121 - #3355
1шт.
26
F12220100
HOSE-AIR INTAKE
HDF30-2,STD #3356
1шт.
27
F12200110
FAN-COOLING
HDF20-2 #2342
1шт.
27
F12200112
FAN-COOLING
HDF20-2 #2343
1шт.
27
F12200110
FAN-COOLING
HDF25-2 #2987
1шт.
27
F12200112
FAN-COOLING
HDF25-2 #2988
1шт.
27
F12200110
FAN-COOLING
HDF30-2 #3120
1шт.
27
F12200112
FAN-COOLING
HDF30-2 #3121
1шт.
28
232116000
WASHER-PLAIN
#2000
2шт.
28
S403-161002
WASHER-PLAIN
#2001
2шт.
29
F12830060
SENSOR-WATER TEMP
1шт.
30
8971752640
BEARING-PILOT
1шт.
31
FHC0103000
AIR CLEANER
HDF20-2 #1625 - #2390
1шт.
31
FHC0103000
AIR CLEANER
HDF20-2,STD #2391
1шт.
31
FHC0103000
AIR CLEANER
HDF25-2 #1625 - #3168
1шт.
31
FHC0103000
AIR CLEANER
HDF25-2,STD #3169
1шт.
31
FHC0103000
AIR CLEANER
HDF30-2 #1552 - #3355
1шт.
31
FHC0103000
AIR CLEANER
HDF30-2,STD #3356
1шт.
31-1
F12210011
AIR CLEANER HOUSING
HDF20-2 #1625 - #2390
1шт.
31-1
F12210011
AIR CLEANER HOUSING
HDF20-2,STD #2391
1шт.
31-1
F12210011
AIR CLEANER HOUSING
HDF25-2 #1625 - #3168
1шт.
31-1
F12210011
AIR CLEANER HOUSING
HDF25-2,STD #3169
1шт.
31-1
F12210011
AIR CLEANER HOUSING
HDF30-2 #1552 - #3355
1шт.
31-1
F12210011
AIR CLEANER HOUSING
HDF30-2,STD #3356
1шт.
31-2
FHC0103202
ELEMENT-AIR CLEANER
HDF20-2 #1625 - #2390
1шт.
31-2
FHC0103202
ELEMENT-AIR CLEANER
HDF20-2,STD #2391
1шт.
31-2
FHC0103202
ELEMENT-AIR CLEANER
HDF25-2 #1625 - #3168
1шт.
31-2
FHC0103202
ELEMENT-AIR CLEANER
HDF25-2,STD #3169
1шт.
31-2
FHC0103202
ELEMENT-AIR CLEANER
HDF30-2 #1552 - #3355
1шт.
31-2
FHC0103202
ELEMENT-AIR CLEANER
HDF30-2,STD #3356
1шт.
32
S035-082022
BOLT-W/WASHER
#2001
2шт.
33
11FK-20060
AIR CLEANER ASSY
HDF20-2,OPT #2391
1шт.
33
11FK-20060
AIR CLEANER ASSY
HDF25-2,OPT #3169
1шт.
33
11FK-20060
AIR CLEANER ASSY
HDF30-2,OPT #3356
1шт.
33-1
11FK-20070
BODY ASSY
HDF20-2,OPT #2391
1шт.
33-1
11FK-20070
BODY ASSY
HDF25-2,OPT #3169
1шт.
33-1
11FK-20070
BODY ASSY
HDF30-2,OPT #3356
1шт.
34
F12220410
CLAMP-A/CLEANER
HDF20-2,OPT #2391
1шт.
34
F12220410
CLAMP-A/CLEANER
HDF25-2,OPT #3169
1шт.
34
F12220410
CLAMP-A/CLEANER
HDF30-2,OPT #3356
1шт.
35
F12220150
HOSE-A/C
HDF20-2,OPT #2391
1шт.
35
F12220150
HOSE-A/C
HDF25-2,OPT #3169
1шт.
35
F12220150
HOSE-A/C
HDF30-2,OPT #3356
1шт.
36
F12220160
HOSE-A/C
HDF20-2,OPT #2391
1шт.
36
F12220160
HOSE-A/C
HDF25-2,OPT #3169
1шт.
36
F12220160
HOSE-A/C
HDF30-2,OPT #3356
1шт.
37
F12220172
BRACKET WA
HDF20-2,OPT #2391
1шт.
37
F12220172
BRACKET WA
HDF25-2,OPT #3169
1шт.
37
F12220172
BRACKET WA
HDF30-2,OPT #3356
1шт.
38
S035-082022
BOLT-W/WASHER
HDF20-2,OPT #2391
2шт.
38
S035-082022
BOLT-W/WASHER
HDF25-2,OPT #3169
2шт.
38
S035-082022
BOLT-W/WASHER
HDF30-2,OPT #3356
2шт.
Выбрано товаров: 147
