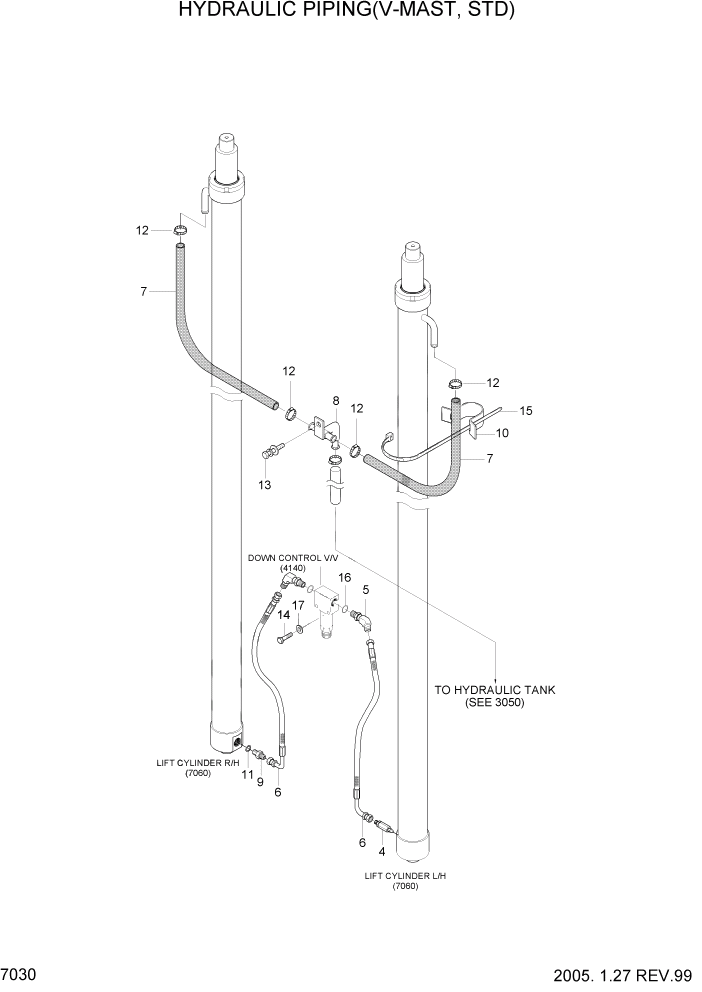

Запчасти Hyundai HDF50/HDF70-3 PAGE 7030 HYDRAULIC PIPING(V-MAST,STD) РАБОЧЕЕ ОБОРУДОВАНИЕ

4

F14500490

DOWN SAFETY V/V

1шт.

5

P030-310009

ELBOW-45

2шт.

6

P620-124010

HOSE ASSY-THD 0X90

2шт.

7

31FC-10640

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81010

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10640

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81010

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10650

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81040

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10650

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81040

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10660

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81070

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10660

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81070

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10400

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81090

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10400

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81090

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10670

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81110

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10670

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81110

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10300

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81170

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10300

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81170

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10620

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81220

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10620

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81220

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10450

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81310

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10450

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81310

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10460

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81360

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10460

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81360

HOSE-RUBBER

HDF70-3 #0189

2шт.

7

31FC-10470

BULK HOSE

HDF50-3 #0161

2шт.

7

31FF-81410

HOSE-RUBBER

HDF50-3 #0162

2шт.

7

31FC-10470

BULK HOSE

HDF70-3 #0188

2шт.

7

31FF-81410

HOSE-RUBBER

HDF70-3 #0189

2шт.

8

31FF-80031

TEE

HDF50-3 #0161

1шт.

8

31FF-80032

TEE

HDF50-3 #0162 - #0423

1шт.

8

31FQ-80010

TEE-RETURN

HDF50-3 #0424

1шт.

8

31FF-80031

TEE

HDF70-3 #0188

1шт.

8

31FF-80032

TEE

HDF70-3 #0189 - #0494

1шт.

8

31FQ-80010

TEE-RETURN

HDF70-3 #0495

1шт.

9

P010-110005

CONNECTOR

1шт.

10

31FB-80080

CLAMP-HOSE

6шт.

11

S631-024004

O-RING

1шт.

12

S572-250002

CLAMP-HOSE WIRE TYPE

4шт.

13

S037-102022

BOLT-W/WASHER

1шт.

14

S017-120752

BOLT-HEX

2шт.

15

S552-102370

CLAMP-HOSE

6шт.

16

S611-023001

O-RING

2шт.

17

S441-120002

WASHER-HARDENED

2шт.
