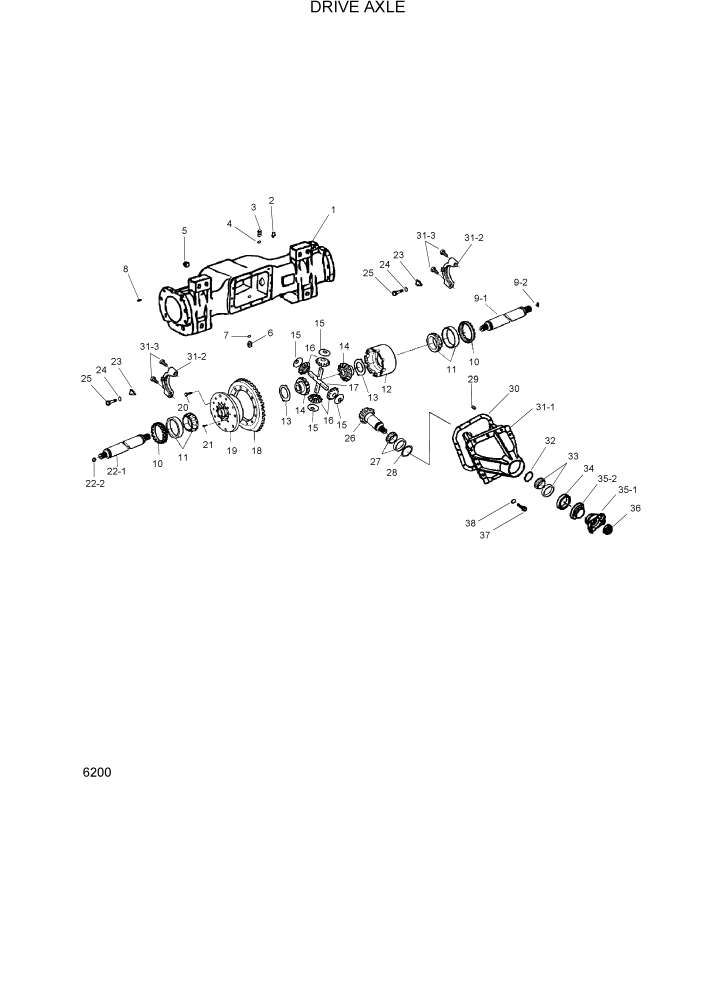

Запчасти Hyundai HDF50/HDF70-3 PAGE 6200 DRIVE AXLE СИЛОВАЯ СИСТЕМА

1

DI0560A0-3S

AXLE HOUSING

1шт.

2

DI0280A3-5M

AIR BREATHER

1шт.

3

7040-12412

PLUG

1шт.

4

FAC0311050

GASKET

1шт.

5

7043-70211

PLUG

1шт.

6

325-22-21290

PLUG

1шт.

7

7002-02434

O-RING

1шт.

8

22312-08028

PIN

2шт.

9

DI0620A3-3S

DRIVE SHAFT ASSY(RH)

1шт.

9-1

DI0621A3-3S

DRIVE SHAFT(RH)

1шт.

9-2

DI0622A4-5M

BUSHING

1шт.

10

DI0100A3-5M

ADJUST NUT

2шт.

11

DI0110A4-5M

TAPER ROLLER B/G

2шт.

12

DI0150A2-5M

DIFF CASE(RH)

1шт.

13

DI0180A4-5M

THRUST WASHER

2шт.

14

DI0170A3-5M

SIDR GEAR

2шт.

15

DI0190A4-5M

THRUST WASHER

4шт.

16

DI0200A3-5M

PINION GEAR

4шт.

17

DI0220A3-5M

SPIDER

1шт.

18

DI0210A2-3S

RING GEAR

1шт.

19

DI0160A2-5M

DIFF CASE(LH)

1шт.

20

DI00090A3-5M

WHEEL BOLT

16шт.

21

1010-5107

BOLT

12шт.

22

DI0630A3-3S

DRIVE SHAFT ASSY(LH)

1шт.

22-1

DI0631A3-3S

DRIVE SHAFT(LH)

1шт.

22-2

DI0622A4-5M

BUSHING

1шт.

23

DI0120A4-5M

PLATE

2шт.

24

22217-06

SPRING WASHER 6

4шт.

25

C12312

BOLT-HEX

4шт.

26

DI0230A2-3S

PINION SHAFT

1шт.

27

DI0070A4-5M

TAPER ROLLER B/G

1шт.

28

DI0060A4-5M

SHIM SET

1шт.

28-1

DSD5021A4

SHIM(0.2T)

1шт.

28-2

3ED-21-11171

SHIM(0.15T)

1шт.

28-3

DI0062A4-5M

SHIM(0.25T)

1шт.

29

4020-01434

PIN-DOWEL

2шт.

30

DI0084A3-3S

GASKET

1шт.

31

DI0080A2-3S

CARRIER HOUSING ASSY

1шт.

31-1

DI0081A2-3S

CARRIER HOUSING

1шт.

31-2

DI0082A3-3S

CAP

2шт.

31-3

DI0083A4-5M

REAMER BOLT

4шт.

32

DI0050A4-5M

SPACER SET

1шт.

32-1

DI0051A4-5M

SPACER(5.37T)

1шт.

32-2

DI0052A4-5M

SPACER(5.40T)

1шт.

32-3

DI0053A4-5M

SPACER(5.43T)

1шт.

33

DI0040A4-5M

TAPER ROLLER B/G

1шт.

34

DI0640A0-Z

OIL SEAL

1шт.

35

DI0010A2-3S

INPUT FLANGE ASSY

1шт.

35-1

DI0011A2-3S

INPUT FLANGE

1шт.

35-2

DI0012A4-5M

DUST COVER

1шт.

36

DI0020A4-5M

NUT

1шт.

37

1010-5144

BOLT

12шт.

38

1602-21442

WASHER-SPRING

12шт.
