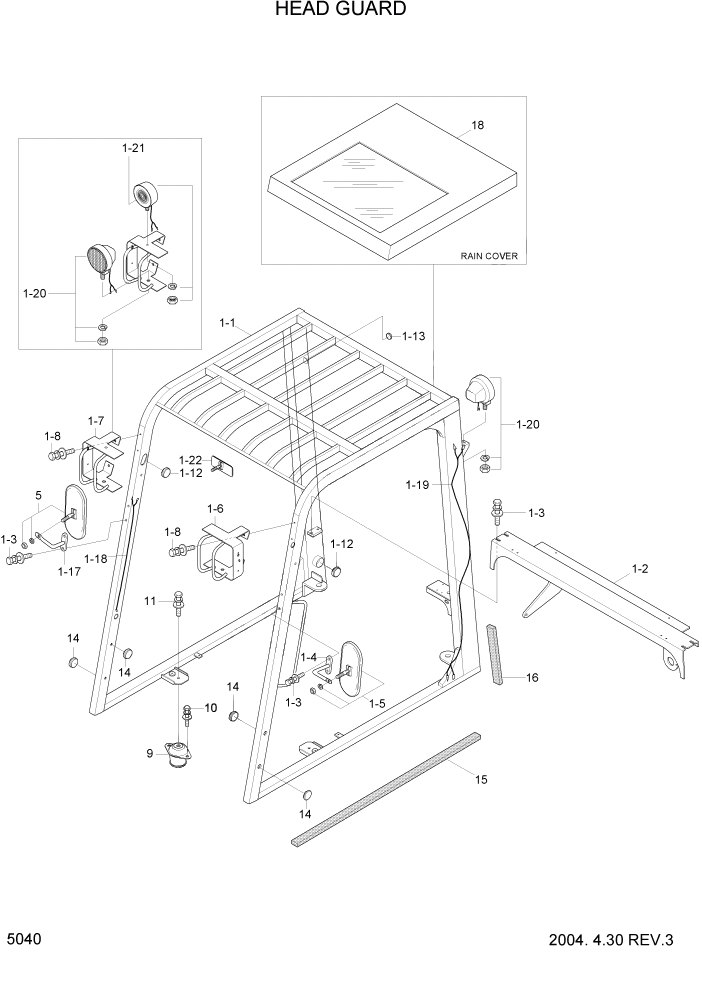

Запчасти Hyundai HDF50/HDF70-3 PAGE 5040 HEAD GUARD СТРУКТУРА

1

71FF-30011

HEAD GUARD

HDF50-3,LOW,STD #0038 - #0119

1шт.

1

71FF-31000

HEAD GUARD SUB ASSY

HDF50-3,LOW,STD #0120 - #0141

1шт.

1

71FF-31001

HEAD GUARD SUB ASSY

HDF50-3,LOW,STD #0142

1шт.

1

71FF-30011

HEAD GUARD

HDF70-3,LOW,STD #0049 - #0142

1шт.

1

71FF-31000

HEAD GUARD SUB ASSY

HDF70-3,LOW,STD #0143 - #0170

1шт.

1

71FF-31001

HEAD GUARD SUB ASSY

HDF70-3,LOW,STD #0171

1шт.

1

72FF-30010

HEAD GUARD WA

HDF50-3,HI,OPT #0038 - #0119

1шт.

1

72FF-31000

HEAD GUARD SUB ASSY

HDF50-3,HI,OPT #0120 - #0141

1шт.

1

72FF-31001

HEAD GUARD SUB ASSY

HDF50-3,HI,OPT #0142

1шт.

1

72FF-30010

HEAD GUARD WA

HDF70-3,HI,OPT #0049 - #0142

1шт.

1

72FF-31000

HEAD GUARD SUB ASSY

HDF70-3,HI,OPT #0143 - #0170

1шт.

1

72FF-31001

HEAD GUARD SUB ASSY

HDF70-3,HI,OPT #0171

1шт.

1-1

71FF-30011

HEAD GUARD

STD

1шт.

1-1

72FF-30010

HEAD GUARD WA

OPT

1шт.

1-2

71FF-30021

SUPPORT-CROSS

1шт.

1-3

S035-082022

BOLT-W/WASHER

8шт.

1-4

71FF-30090

STAY-MIRROR,LH

HDF50-3 #0010

1шт.

1-4

71FF-30091

STAY-MIRROR,LH

HDF50-3 #0011

1шт.

1-4

71FF-30090

STAY-MIRROR,LH

HDF70-3 #0012

1шт.

1-4

71FF-30091

STAY-MIRROR,LH

HDF70-3 #0013

1шт.

1-5

71N8-46000

MIRROR

2шт.

1-6

71FF-30470

PROTECTOR-LH

1шт.

1-7

71FF-30460

PROTECTOR-RH

1шт.

1-8

S035-081522

BOLT-W/WASHER

4шт.

1-12

S681-190400

GROMMET

5шт.

1-13

ED03020000

GROMMET

1шт.

1-17

71FF-30100

STAY-MIRROR,RH

HDF50-3 #0010

1шт.

1-17

71FF-30101

STAY-MIRROR,RH

HDF50-3 #0011

1шт.

1-17

71FF-30100

STAY-MIRROR,RH

HDF70-3 #0012

1шт.

1-17

71FF-30101

STAY-MIRROR,RH

HDF70-3 #0013

1шт.

1-18

F14800050

HARNESS-SUPPORT,LH

#0143

2шт.

1-19

F13800140

HARNESS-WORK LAMP

#0173

1шт.

1-2

21FF-10130

LAMP-HEAD

3шт.

1-21

21FF-10120

LAMP-FLASHER

2шт.

1-22

E371-1128

MIRROR-ROOM

HDF50-3 #0142

1шт.

1-22

E371-1128

MIRROR-ROOM

HDF70-3 #0171

1шт.

9

Q101968000

RUBBER-MOUNTING

4шт.

10

S037-102522

BOLT-W/WASHER

8шт.

11

S037-122522

BOLT-W/WASHER

4шт.

14

9064201053

GROMMET

4шт.

15

F14130110

SEAL-RUBBER

2шт.

16

F14130100

SEAL-RUBBER

2шт.

18

71FF-35000

RAIN COVER

HDF50-3 #0146

1шт.

18

71FF-35000

RAIN COVER

HDF70-3 #0173

1шт.
