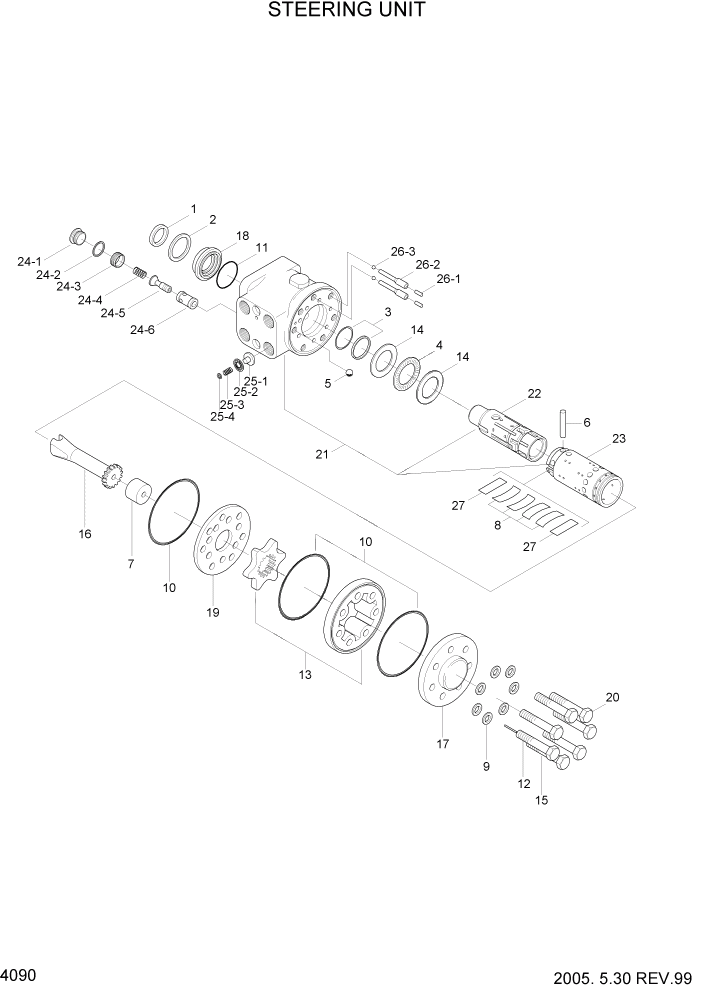

Запчасти Hyundai HDF50/HDF70-3 PAGE 4090 STEERING UNIT ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ
№
Артикул
Название
Примечание
Количество
*
31FF-04000
STEERING UNIT
HDF50-3 #0075
1шт.
*
31FF-04500
STEERING UNIT
HDF50-3 #0076 - #0450
1шт.
*
31FF-04501
STEERING UNIT
HDF50-3 #0451
1шт.
*
31FF-04000
STEERING UNIT
HDF70-3 #0085
1шт.
*
31FF-04500
STEERING UNIT
HDF70-3 #0086 - #0531
1шт.
*
31FF-04501
STEERING UNIT
HDF70-3 #0532
1шт.
NK1
XKAU-00001
DUST SEAL
NOT #0450
1шт.
NK1
XKAU-00075
SEAL-DUST
NOT #0451
1шт.
NK1
XKAU-00001
DUST SEAL
NOT #0531
1шт.
NK1
XKAU-00075
SEAL-DUST
NOT #0532
1шт.
N2
XKAU-00042
SEAL-RETAINING
NOT #0075
1шт.
N2
XKAU-00002
RETAINING RING
NOT #0076 - #0450
1шт.
N2
XKAU-00042
SEAL-RETAINING
NOT #0451
1шт.
N2
XKAU-00042
SEAL-RETAINING
NOT #0085
1шт.
N2
XKAU-00002
RETAINING RING
NOT #0086 - #0531
1шт.
N2
XKAU-00042
SEAL-RETAINING
NOT #0532
1шт.
NK3
XKAU-00003
SEAL-CAP
NOT
1шт.
NS4
XKAU-00004
BEARING-THRUST
NOT
1шт.
N5
XKAU-00005
BALL
NOT
1шт.
N6
XKAU-00006
PIN
NOT
1шт.
N7
208068
SPACER
NOT #0075
1шт.
N7
XKAU-00076
SPACER
NOT #0076
1шт.
N7
208068
SPACER
NOT #0085
1шт.
N7
XKAU-00076
SPACER
NOT #0086
1шт.
N8
XKAU-00008
SPRING-CENTERING
NOT #0075
6шт.
N8
XKAU-00008
SPRING-CENTERING
NOT #0076
4шт.
N8
XKAU-00008
SPRING-CENTERING
NOT #0085
6шт.
N8
XKAU-00008
SPRING-CENTERING
NOT #0086
4шт.
NK9
XKAU-00009
WASHER
NOT #0001
7шт.
NK10
XKAU-00043
O-RING
NOT #0075
3шт.
NK10
XKAU-00010
O-RING
NOT #0076
3шт.
NK10
XKAU-00043
O-RING
NOT #0085
3шт.
NK10
XKAU-00010
O-RING
NOT #0086
3шт.
NK11
XKAU-00044
SEAL
NOT #0075
1шт.
NK11
XKAU-00011
O-RING
NOT #0076
1шт.
NK11
XKAU-00044
SEAL
NOT #0085
1шт.
NK11
XKAU-00011
O-RING
NOT #0086
1шт.
N12
421216
ROLLED SCREW
NOT #0075
1шт.
N12
XKAU-00077
ROLLED SCREW
NOT #0076
1шт.
N12
421216
ROLLED SCREW
NOT #0085
1шт.
N12
XKAU-00077
ROLLED SCREW
NOT #0086
1шт.
N13
211417L
GEROTOR SET
NOT #0075
1шт.
N13
XKAU-00078
GEROTOR SET
NOT #0076
1шт.
N13
211417L
GEROTOR SET
NOT #0085
1шт.
N13
XKAU-00078
GEROTOR SET
NOT #0086
1шт.
NS14
XKAU-00047
RACE-BEARING
NOT #0075
2шт.
NS14
XKAU-00014
BEARING RACE
NOT #0076 - #0450
2шт.
NS14
XKAU-00047
RACE-BEARING
NOT #0451
2шт.
NS14
XKAU-00047
RACE-BEARING
NOT #0085
2шт.
NS14
XKAU-00014
BEARING RACE
NOT #0086 - #0531
2шт.
NS14
XKAU-00047
RACE-BEARING
NOT #0532
2шт.
N15
XKAU-00015
SCREW-BORE
NOT
1шт.
N16
XKAU-00079
DRIVE
NOT #0075
1шт.
N16
XKAU-00016
DRIVE
NOT #0076 - #0450
1шт.
N16
XKAU-00079
DRIVE
NOT #0451
1шт.
N16
XKAU-00079
DRIVE
NOT #0085
1шт.
N16
XKAU-00016
DRIVE
NOT #0086 - #0531
1шт.
N16
XKAU-00079
DRIVE
NOT #0532
1шт.
N17
XKAU-00017
CAP-END
NOT
1шт.
N18
XKAU-00049
GLAND BUSHING
NOT #0075
1шт.
N18
XKAU-00018
GLAND BUSHING
NOT #0076 - #0450
1шт.
N18
XKAU-00080
BUSHING-GLAND
NOT #0451
1шт.
N18
XKAU-00049
GLAND BUSHING
NOT #0085
1шт.
N18
XKAU-00049
GLAND BUSHING
NOT #0086 - #0531
1шт.
N18
XKAU-00080
BUSHING-GLAND
NOT #0532
1шт.
N19
XKAU-00019
PLATE
NOT
1шт.
N20
401216
CAP SCREW
NOT #0075
6шт.
N20
XKAU-00081
CAP SCREW
NOT #0076
6шт.
N20
401216
CAP SCREW
NOT #0085
6шт.
N20
XKAU-00081
CAP SCREW
NOT #0086
6шт.
N21
OP0111212
HOUSING
NOT #0075
1шт.
N21
XKAU-00021
HOUSING
NOT #0076 - #0450
1шт.
N21
XKAU-00101
HOUSING
NOT #0451
1шт.
N21
OP0111212
HOUSING
NOT #0085
1шт.
N21
XKAU-00021
HOUSING
NOT #0086 - #0531
1шт.
N21
XKAU-00101
HOUSING
NOT #0532
1шт.
N22
XKAU-00052
SPOOL
NOT #0075
1шт.
N22
XKAU-00022
SPOOL
NOT #0076 - #0450
1шт.
N22
XKAU-00052
SPOOL
NOT #0451
1шт.
N22
XKAU-00052
SPOOL
NOT #0085
1шт.
N22
XKAU-00022
SPOOL
NOT #0086 - #0531
1шт.
N22
XKAU-00052
SPOOL
NOT #0532
1шт.
N23
XKAU-00053
SLEEVE
NOT #0075
1шт.
N23
XKAU-00023
SLEEVE
NOT #0076 - #0450
1шт.
N23
XKAU-00083
SLEEVE
NOT #0451
1шт.
N23
XKAU-00053
SLEEVE
NOT #0085
1шт.
N23
XKAU-00023
SLEEVE
NOT #0086 - #0531
1шт.
N23
XKAU-00083
SLEEVE
NOT #0532
1шт.
N24
XKAU-00054
RELIEF VALVE
NOT #0075
1шт.
N24
XKAU-00054
RELIEF VALVE
NOT #0076 - #0450
1шт.
N24
XKAU-00084
RELIEF VALVE
NOT #0451
1шт.
N24
XKAU-00054
RELIEF VALVE
NOT #0085
1шт.
N24
XKAU-00054
RELIEF VALVE
NOT #0086 - #0531
1шт.
N24
XKAU-00084
RELIEF VALVE
NOT #0532
1шт.
N24-1
XKAU-00025
PLUG
NOT
1шт.
NK24-2
XKAU-00026
O-RING
NOT
1шт.
N24-3
XKAU-00063
SPRING SEAT
NOT #0075
1шт.
N24-3
XKAU-00027
SPRING SEAT
NOT #0076 - #0450
1шт.
N24-3
XKAU-00063
SPRING SEAT
NOT #0451
1шт.
N24-3
XKAU-00063
SPRING SEAT
NOT #0085
1шт.
N24-3
XKAU-00027
SPRING SEAT
NOT #0086 - #0531
1шт.
N24-3
XKAU-00063
SPRING SEAT
NOT #0532
1шт.
N24-4
XKAU-00056
SPRING
NOT
1шт.
N24-5
XKAU-00057
SPOOL
NOT #0075
1шт.
N24-5
XKAU-00029
SPOOL
NOT #0076 - #0450
1шт.
N24-5
XKAU-00087
SPOOL
NOT #0451
1шт.
N24-5
XKAU-00057
SPOOL
NOT #0085
1шт.
N24-5
XKAU-00029
SPOOL
NOT #0086 - #0531
1шт.
N24-5
XKAU-00087
SPOOL
NOT #0532
1шт.
N24-6
XKAU-00058
BUSHING
NOT #0075
1шт.
N24-6
XKAU-00030
BUSHING
NOT #0076 - #0450
1шт.
N24-6
XKAU-00086
BUSHING
NOT #0451
1шт.
N24-6
XKAU-00058
BUSHING
NOT #0085
1шт.
N24-6
XKAU-00030
BUSHING
NOT #0086 - #0531
1шт.
N24-6
XKAU-00086
BUSHING
NOT #0532
1шт.
N25
XKAU-00031
P-PORT CHECK V/V
NOT
1шт.
N25-1
XKAU-00032
GUIDE
NOT
1шт.
N25-2
XKAU-00034
SHIM
NOT
1шт.
N25-3
XKAU-00035
SPRING
NOT
1шт.
N25-4
XKAU-00036
WASHER
NOT
1шт.
N26
XKAU-00037
SUCTION VALVE
NOT #0450
2шт.
N26
XKAU-00037
SUCTION VALVE
NOT #0531
2шт.
N26-1
XKAU-00059
ROLL PIN
NOT #0075
2шт.
N26-1
XKAU-00038
ROLLED PIN
NOT #0076
2шт.
N26-1
XKAU-00059
ROLL PIN
NOT #0085
2шт.
N26-1
XKAU-00038
ROLLED PIN
NOT #0086
2шт.
N26-2
XKAU-00060
PIN
NOT #0075
2шт.
N26-2
XKAU-00060
PIN
NOT #0085
2шт.
N26-3
XKAU-00061
BALL
NOT #0075
2шт.
N26-3
XKAU-00039
BALL
NOT #0076
2шт.
N26-3
XKAU-00061
BALL
NOT #0085
2шт.
N26-3
XKAU-00061
BALL
NOT #0086
2шт.
N27
XKAU-00065
SPRING-PLATE
NOT #0076
2шт.
N27
XKAU-00065
SPRING-PLATE
NOT #0086
2шт.
K
XKAU-00040
SEAL KIT
1шт.
S
XKAU-00041
NEEDLE BEARING KIT
1шт.
N
@
NOT INDIVIDUALLY SUPPLIED
NOT
ARшт.
Выбрано товаров: 137
