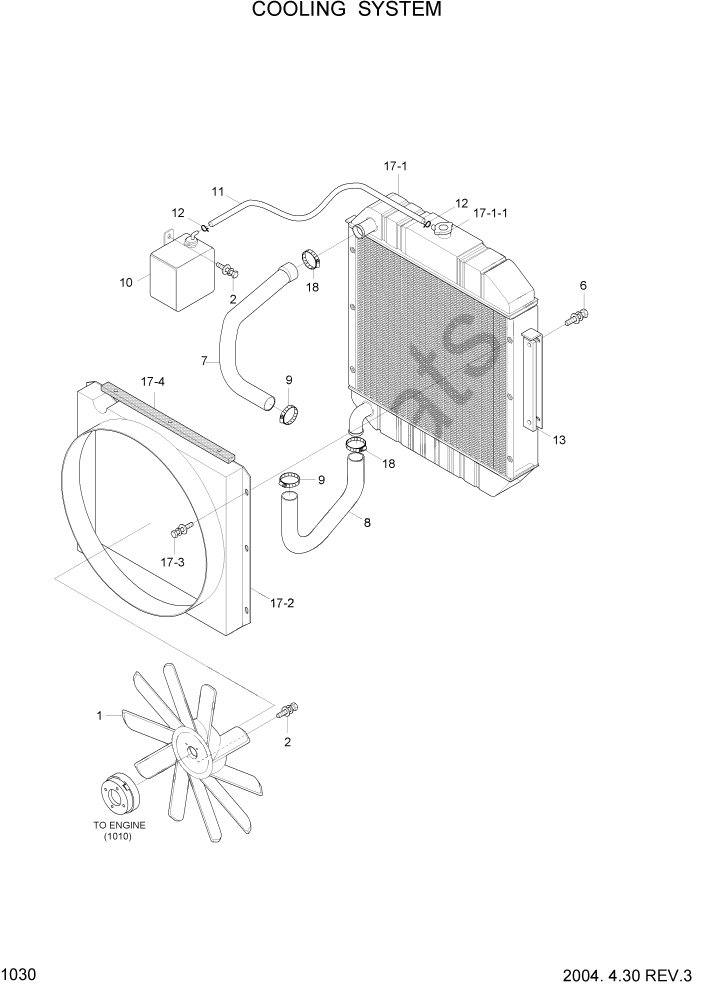

Запчасти Hyundai HDF50/HDF70-3 PAGE 1030 COOLING SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11FF-30011

FAN

1шт.

2

S035-082022

BOLT-W/WASHER

6шт.

6

S037-103022

BOLT-W/WASHER

4шт.

7

11FF-30041

HOSE-UPPER

HDF50-3 #0035

1шт.

7

11FF-30042

HOSE-UPPER

HDF50-3 #0036

1шт.

7

11FF-30041

HOSE-UPPER

HDF70-3 #0044

1шт.

7

11FF-30042

HOSE-UPPER

HDF70-3 #0045

1шт.

8

11FF-30051

HOSE-LOWER

HDF50-3 #0035

1шт.

8

11FF-30052

HOSE-LOWER

HDF50-3 #0036

1шт.

8

11FF-30051

HOSE-LOWER

HDF70-3 #0044

1шт.

8

11FF-30052

HOSE-LOWER

HDF70-3 #0045

1шт.

9

S572-590006

CLAMP-HOSE WIRE TYPE

2шт.

10

F12230100

RESERVOIR TANK ASSY

1шт.

11

11S4-30140

HOSE-OVER FLOW

HDF50-3 #0035

1шт.

11

11F8-00061

HOSE-FUEL

HDF50-3 #0036

1шт.

11

11S4-30140

HOSE-OVER FLOW

HDF70-3 #0044

1шт.

11

11F8-00061

HOSE-FUEL

HDF70-3 #0045

1шт.

12

S520-015000

CLAMP-HOSE

2шт.

13

F14230090

RUBBER-CUSHION

2шт.

17

11FF-30060

RADIATOR ASSY

HDF50-3 #0035

1шт.

17

11FF-30061

RADIATOR ASSY

HDF50-3 #0036 - #0290

1шт.

17

11FF-30062

RADIATOR ASSY

HDF50-3 #0291

1шт.

17

11FF-30060

RADIATOR ASSY

HDF70-3 #0044

1шт.

17

11FF-30061

RADIATOR ASSY

HDF70-3 #0045 - #0290

1шт.

17

11FF-30062

RADIATOR ASSY

HDF70-3 #0291

1шт.

17-1

11FF-30020

RADIATOR ASSY

1шт.

17-1-1

22101810

CAP-RADIATOR

#0001

1шт.

17-2

11FF-30031

SHROUD-FAN WA

HDF50-3 #0035

1шт.

17-2

11FF-30032

SHROUD-FAN WA

HDF50-3 #0036

1шт.

17-2

11FF-30031

SHROUD-FAN WA

HDF70-3 #0044

1шт.

17-2

11FF-30032

SHROUD-FAN WA

HDF70-3 #0045

1шт.

17-3

S035-061522

BOLT-W/WASHER

6шт.

17-4

11FE-30090

SPONGE-CUSHION

2шт.

18

S572-630006

CLAMP-HOSE,WIRE TYPE

2шт.
