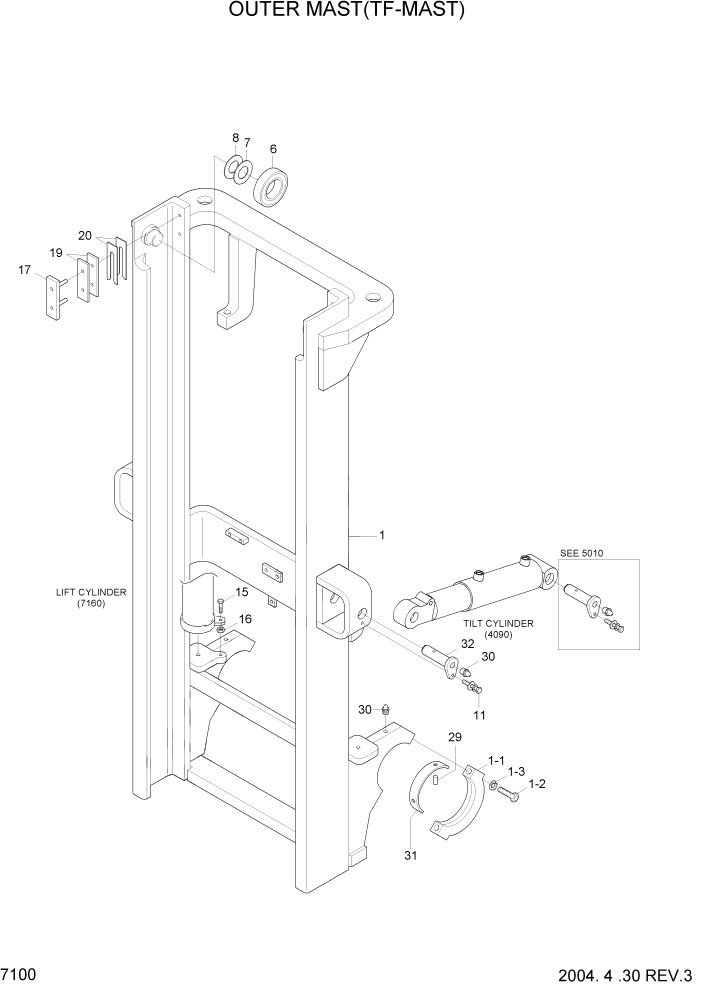

Запчасти Hyundai HDF35/HDF45-3 PAGE 7100 OUTER MAST(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

63FE-TF3700

MAST ASSY

TF370,HDF35-3 #0076

1шт.

*

63FE-TF3701

MAST ASSY

TF370,HDF35-3 #0077 - #0172

1шт.

*

63FE-TF3702

MAST ASSY

TF370,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF3703

MAST ASSY

TF370,HDF35-3 #0260

1шт.

*

63FE-TF3700

MAST ASSY

TF370,HDF45-3 #0103

1шт.

*

63FE-TF3701

MAST ASSY

TF370,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF3702

MAST ASSY

TF370,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF3703

MAST ASSY

TF370,HDF45-3 #0427

1шт.

*

63FE-TF4000

MAST ASSY

TF400,HDF35-3 #0076

1шт.

*

63FE-TF4001

MAST ASSY

TF400,HDF35-3 #0077

1шт.

*

63FE-TF4002

MAST ASSY

TF400,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF4003

MAST ASSY

TF400,HDF35-3 #0260

1шт.

*

63FE-TF4000

MAST ASSY

TF400,HDF45-3 #0103

1шт.

*

63FE-TF4001

MAST ASSY

TF400,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF4002

MAST ASSY

TF400,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF4003

MAST ASSY

TF400,HDF45-3 #0427

1шт.

*

63FE-TF4300

MAST ASSY

TF430,HDF35-3 #0076

1шт.

*

63FE-TF4301

MAST ASSY

TF430,HDF35-3 #0077 - #0172

1шт.

*

63FE-TF4302

MAST ASSY

TF430,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF4303

MAST ASSY

TF430,HDF35-3 #0260

1шт.

*

63FE-TF4300

MAST ASSY

TF430,HDF45-3 #0103

1шт.

*

63FE-TF4301

MAST ASSY

TF430,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF4302

MAST ASSY

TF430,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF4303

MAST ASSY

TF430,HDF45-3 #0427

1шт.

*

63FE-TF4500

MAST ASSY

TF450,HDF35-3 #0076

1шт.

*

63FE-TF4501

MAST ASSY

TF450,HDF35-3 #0077 - #0172

1шт.

*

63FE-TF4502

MAST ASSY

TF450,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF4503

MAST ASSY

TF450,HDF35-3 #0260

1шт.

*

63FE-TF4500

MAST ASSY

TF450,HDF45-3 #0103

1шт.

*

63FE-TF4501

MAST ASSY

TF450,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF4502

MAST ASSY

TF450,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF4503

MAST ASSY

TF450,HDF45-3 #0427

1шт.

*

63FE-TF4700

MAST ASSY

TF470,HDF35-3 #0076

1шт.

*

63FE-TF4701

MAST ASSY

TF470,HDF35-3 #0077 - #0172

1шт.

*

63FE-TF4702

MAST ASSY

TF470,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF4703

MAST ASSY

TF470,HDF35-3 #0260

1шт.

*

63FE-TF4700

MAST ASSY

TF470,HDF45-3 #0103

1шт.

*

63FE-TF4701

MAST ASSY

TF470,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF4702

MAST ASSY

TF470,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF4703

MAST ASSY

TF470,HDF45-3 #0427

1шт.

*

63FE-TF5000

MAST ASSY

TF500,HDF35-3 #0076

1шт.

*

63FE-TF5001

MAST ASSY

TF500,HDF35-3 #0077 - #0172

1шт.

*

63FE-TF5002

MAST ASSY

TF500,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF5003

MAST ASSY

TF500,HDF35-3 #0260

1шт.

*

63FE-TF5000

MAST ASSY

TF500,HDF45-3 #0103

1шт.

*

63FE-TF5001

MAST ASSY

TF500,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF5002

MAST ASSY

TF500,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF5003

MAST ASSY

TF500,HDF45-3 #0427

1шт.

*

63FE-TF5500

MAST ASSY

TF550,HDF35-3 #0076

1шт.

*

63FE-TF5501

MAST ASSY

TF550,HDF35-3 #0077 - #0172

1шт.

*

63FE-TF5502

MAST ASSY

TF550,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF5503

MAST ASSY

TF550,HDF35-3 #0260

1шт.

*

63FE-TF5500

MAST ASSY

TF550,HDF45-3 #0103

1шт.

*

63FE-TF5501

MAST ASSY

TF550,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF5502

MAST ASSY

TF550,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF5503

MAST ASSY

TF550,HDF45-3 #0427

1шт.

*

63FE-TF6000

MAST ASSY

TF600,HDF35-3 #0076

1шт.

*

63FE-TF6001

MAST ASSY

TF600,HDF35-3 #0077 - #0172

1шт.

*

63FE-TF6002

MAST ASSY

TF600,HDF35-3 #0173 - #0259

1шт.

*

63FE-TF6003

MAST ASSY

TF600,HDF35-3 #0260

1шт.

*

63FE-TF6000

MAST ASSY

TF600,HDF45-3 #0103

1шт.

*

63FE-TF6001

MAST ASSY

TF600,HDF45-3 #0104 - #0224

1шт.

*

63FE-TF6002

MAST ASSY

TF600,HDF45-3 #0225 - #0426

1шт.

*

63FE-TF6003

MAST ASSY

TF600,HDF45-3 #0427

1шт.

1

63FE-11010

OUTER MAST

TF370,HDF35-3 #0172

1шт.

1

63FE-11011

OUTER MAST

TF370,HDF35-3 #0173

1шт.

1

63FE-11010

OUTER MAST

TF370,HDF45-3 #0224

1шт.

1

63FE-11011

OUTER MAST

TF370,HDF45-3 #0225

1шт.

1

63FE-11020

OUTER MAST

TF400,HDF35-3 #0172

1шт.

1

63FE-11021

OUTER MAST

TF400,HDF35-3 #0173

1шт.

1

63FE-11020

OUTER MAST

TF400,HDF45-3 #0224

1шт.

1

63FE-11021

OUTER MAST

TF400,HDF45-3 #0225

1шт.

1

63FE-11030

OUTER MAST

TF430,HDF35-3 #0172

1шт.

1

63FE-11031

OUTER MAST

TF430,HDF35-3 #0173

1шт.

1

63FE-11030

OUTER MAST

TF430,HDF45-3 #0224

1шт.

1

63FE-11031

OUTER MAST

TF430,HDF45-3 #0225

1шт.

1

63FE-11040

OUTER MAST

TF450,HDF35-3 #0172

1шт.

1

63FE-11041

OUTER MAST

TF450,HDF35-3 #0173

1шт.

1

63FE-11040

OUTER MAST

TF450,HDF45-3 #0224

1шт.

1

63FE-11041

OUTER MAST

TF450,HDF45-3 #0173

1шт.

1

63FE-11050

OUTER MAST

TF470,HDF35-3 #0172

1шт.

1

63FE-11051

OUTER MAST

TF470,HDF35-3 #0173

1шт.

1

63FE-11050

OUTER MAST

TF470,HDF45-3 #0224

1шт.

1

63FE-11051

OUTER MAST

TF470,HDF45-3 #0225

1шт.

1

63FE-11060

OUTER MAST

TF500,HDF35-3 #0172

1шт.

1

63FE-11061

OUTER MAST

TF500,HDF35-3 #0173

1шт.

1

63FE-11060

OUTER MAST

TF500,HDF45-3 #0224

1шт.

1

63FE-11061

OUTER MAST

TF500,HDF45-3 #0225

1шт.

1

63FE-11070

OUTER MAST

TF550,HDF35-3 #0172

1шт.

1

63FE-11071

OUTER MAST

TF550,HDF35-3 #0173

1шт.

1

63FE-11070

OUTER MAST

TF550,HDF45-3 #0224

1шт.

1

63FE-11071

OUTER MAST

TF550,HDF45-3 #0225

1шт.

1

63FE-11080

OUTER MAST

TF600,HDF35-3 #0172

1шт.

1

63FE-11081

OUTER MAST

TF600,HDF35-3 #0173

1шт.

1

63FE-11080

OUTER MAST

TF600,HDF45-3 #0224

1шт.

1

63FE-11081

OUTER MAST

TF600,HDF45-3 #0225

1шт.

1-1

61FE-11360

CAP-TRUNNION

2шт.

1-2

S109-161006

BOLT-SOCKET

4шт.

1-3

S441-160002

WASHER-HARDENED

4шт.

2

@

MIDDLE MAST

NOT

1шт.

3

@

INNER MAST

NOT

1шт.

4

@

CHAIN-LIFT/BL834

NOT

2шт.

5

@

CHAIN-LIFT/BL834

NOT

2шт.

6

6625011800-01

BEARING-L/ROLLER

2шт.

7

5261101400

SHIM(0.5T)

2шт.

8

5261101500

SHIM(1.0T)

2шт.

11

S037-102522

BOLT-W/WASHER

4шт.

15

S017-100502

BOLT-HEX

2шт.

16

S205-101002

NUT-HEX

2шт.

17

6600354700

LINER-BACK UP

2шт.

19

FMC0000150

SHIM(1.0T)

2шт.

20

FMD0000110

SHIM(0.5T)

2шт.

29

S471-080162

PIN-SPRING

2шт.

30

S651-810008

NIPPLE-GREASE

4шт.

31

61FE-18400

BUSH-TRUNNION

2шт.

32

Q101191000

PIN-TILT CYL

2шт.
