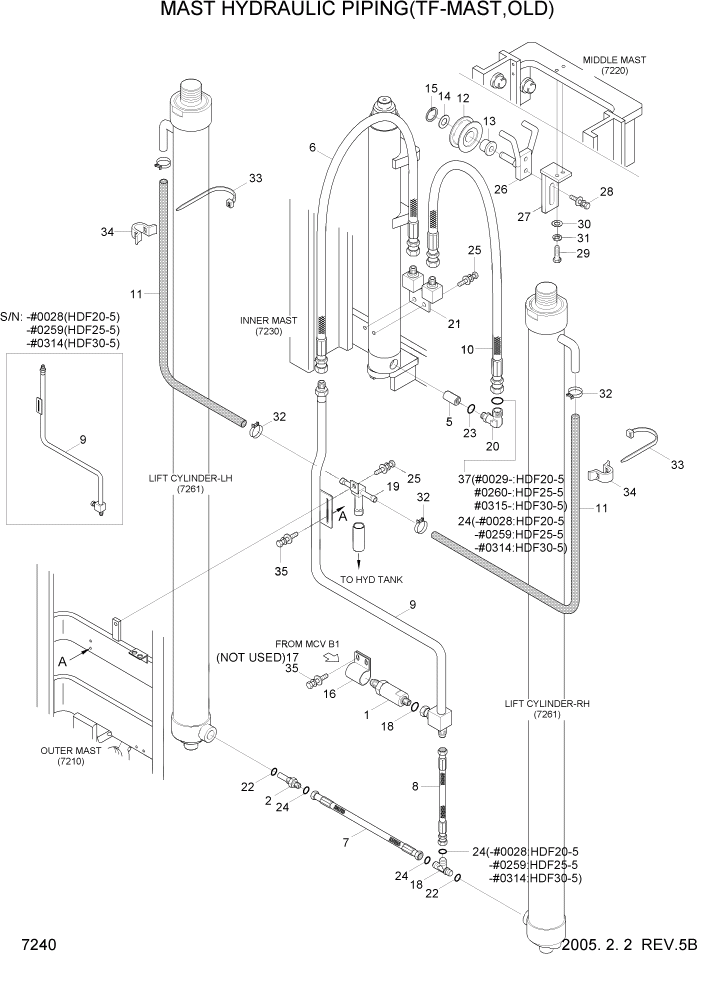

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 7240 MAST HYDRAULIC PIPING(TF-MAST,OLD) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
*
@
MAST HYERAULIC PIPING
NOT #0034
1шт.
*
@
MAST HYERAULIC PIPING
NOT #0370
1шт.
*
@
MAST HYERAULIC PIPING
NOT #0435
1шт.
1
31FG-05000
VALVE-FLOW REGULATOR
HDF20/25-5
1шт.
1
31FG-05100
VALVE-FLOW REGULATOR
HDF30-5
1шт.
5
EE19170100
DOWN SAFETY VALVE
1шт.
6
P910-104040
HOSE ASSY-ORFS 0X0
HDF20-5,TF370 #0029
1шт.
6
P910-104040
HOSE ASSY-ORFS 0X0
HDF25-5,TF370 #0260
1шт.
6
P910-104040
HOSE ASSY-ORFS 0X0
HDF30-5,TF370 #0315
1шт.
6
P910-084044
HOSE ASSY-ORFS 0X0
HDF20-5,TF400 #0028
1шт.
6
P910-104044
HOSE ASSY-ORFS 0X0
HDF20-5,TF400 #0029
1шт.
6
P910-084044
HOSE ASSY-ORFS 0X0
HDF25-5,TF400 #0259
1шт.
6
P910-104044
HOSE ASSY-ORFS 0X0
HDF25-5,TF400 #0260
1шт.
6
P910-084044
HOSE ASSY-ORFS 0X0
HDF30-5,TF400 #0314
1шт.
6
P910-104044
HOSE ASSY-ORFS 0X0
HDF30-5,TF400 #0315
1шт.
6
P910-104048
HOSE ASSY-ORFS 0X0
HDF20-5,TF430 #0029
1шт.
6
P910-104048
HOSE ASSY-ORFS 0X0
HDF25-5,TF430 #0260
1шт.
6
P910-104048
HOSE ASSY-ORFS 0X0
HDF30-5,TF430 #0315
1шт.
6
P910-084051
HOSE ASSY-ORFS 0X0
HDF20-5,TF450 #0028
1шт.
6
P910-104051
HOSE ASSY-ORFS 0X0
HDF20-5,TF450 #0029
1шт.
6
P910-084051
HOSE ASSY-ORFS 0X0
HDF25-5,TF450 #0259
1шт.
6
P910-104051
HOSE ASSY-ORFS 0X0
HDF25-5,TF450 #0260
1шт.
6
P910-084051
HOSE ASSY-ORFS 0X0
HDF30-5,TF450 #0314
1шт.
6
P910-104051
HOSE ASSY-ORFS 0X0
HDF30-5,TF450 #0315
1шт.
6
P910-084053
HOSE ASSY-ORFS 0X0
HDF20-5,TF470 #0028
1шт.
6
P910-104053
HOSE ASSY-ORFS 0X0
HDF20-5,TF470 #0029
1шт.
6
P910-084053
HOSE ASSY-ORFS 0X0
HDF25-5,TF470 #0259
1шт.
6
P910-104053
HOSE ASSY-ORFS 0X0
HDF25-5,TF470 #0260
1шт.
6
P910-084053
HOSE ASSY-ORFS 0X0
HDF30-5,TF470 #0314
1шт.
6
P910-104053
HOSE ASSY-ORFS 0X0
HDF30-5,TF470 #0315
1шт.
6
P910-084057
HOSE ASSY-ORFS 0X0
HDF20-5,TF500 #0028
1шт.
6
P910-104057
HOSE ASSY-ORFS 0X0
HDF20-5,TF500 #0029
1шт.
6
P910-084057
HOSE ASSY-ORFS 0X0
HDF25-5,TF500 #0259
1шт.
6
P910-104057
HOSE ASSY-ORFS 0X0
HDF25-5,TF500 #0260
1шт.
6
P910-084057
HOSE ASSY-ORFS 0X0
HDF30-5,TF500 #0314
1шт.
6
P910-104057
HOSE ASSY-ORFS 0X0
HDF30-5,TF500 #0315
1шт.
6
P910-084065
HOSE ASSY-ORFS 0X0
HDF20-5,TF550 #0028
1шт.
6
P910-104065
HOSE ASSY-ORFS 0X0
HDF20-5,TF550 #0029
1шт.
6
P910-084065
HOSE ASSY-ORFS 0X0
HDF25-5,TF550 #0259
1шт.
6
P910-104065
HOSE ASSY-ORFS 0X0
HDF25-5,TF550 #0260
1шт.
6
P910-084065
HOSE ASSY-ORFS 0X0
HDF30-5,TF550 #0314
1шт.
6
P910-104065
HOSE ASSY-ORFS 0X0
HDF30-5,TF550 #0315
1шт.
6
P910-084073
HOSE ASSY-ORFS 0X0
HDF20-5,TF600 #0028
1шт.
6
P910-084073
HOSE ASSY-ORFS 0X0
HDF20-5,TF600 #0029
1шт.
6
P910-084073
HOSE ASSY-ORFS 0X0
HDF25-5,TF600 #0259
1шт.
6
P910-084073
HOSE ASSY-ORFS 0X0
HDF25-5,TF600 #0260
1шт.
6
P910-084073
HOSE ASSY-ORFS 0X0
HDF30-5,TF600 #0314
1шт.
6
P910-084073
HOSE ASSY-ORFS 0X0
HDF30-5,TF600 #0315
1шт.
6
P910-084080
HOSE ASSY-ORFS 0X0
HDF20-5,TF650 #0028
1шт.
6
P910-084080
HOSE ASSY-ORFS 0X0
HDF20-5,TF650 #0029
1шт.
6
P910-084080
HOSE ASSY-ORFS 0X0
HDF25-5,TF650 #0259
1шт.
6
P910-084080
HOSE ASSY-ORFS 0X0
HDF25-5,TF650 #0260
1шт.
6
P910-084080
HOSE ASSY-ORFS 0X0
HDF30-5,TF650 #0314
1шт.
6
P910-084080
HOSE ASSY-ORFS 0X0
HDF30-5,TF650 #0315
1шт.
6
P910-084088
HOSE ASSY-ORFS 0X0
HDF20-5,TF700 #0028
1шт.
6
P910-084088
HOSE ASSY-ORFS 0X0
HDF20-5,TF700 #0029
1шт.
6
P910-084088
HOSE ASSY-ORFS 0X0
HDF25-5,TF700 #0259
1шт.
6
P910-084088
HOSE ASSY-ORFS 0X0
HDF25-5,TF700 #0260
1шт.
6
P910-084088
HOSE ASSY-ORFS 0X0
HDF30-5,TF700 #0314
1шт.
6
P910-084088
HOSE ASSY-ORFS 0X0
HDF30-5,TF700 #0315
1шт.
7
31FG-80100
HOSE ASSY
1шт.
8
33FG-83000
HOSE ASSY
1шт.
9
33FG-81000
PIPE WA
HDF20-5 #0028
1шт.
9
33FG-81001
PIPE WA
HDF20-5 #0029
1шт.
9
33FG-81000
PIPE WA
HDF25-5 #0259
1шт.
9
33FG-81001
PIPE WA
HDF25-5 #0260
1шт.
9
33FG-81000
PIPE WA
HDF30-5 #0314
1шт.
9
33FG-81001
PIPE WA
HDF30-5 #0315
1шт.
10
P910-084011
HOSE ASSY-ORFS 0X0
HDF20-5 #0028
1шт.
10
P910-104011
HOSE ASSY-ORFS 0X0
HDF20-5 #0029
1шт.
10
P910-084011
HOSE ASSY-ORFS 0X0
HDF25-5 #0259
1шт.
10
P910-104011
HOSE ASSY-ORFS 0X0
HDF25-5 #0260
1шт.
10
P910-084011
HOSE ASSY-ORFS 0X0
HDF30-5 #0314
1шт.
10
P910-104011
HOSE ASSY-ORFS 0X0
HDF30-5 #0315
1шт.
11
P760-013075
HOSE-RUBBER LOW
TF370
2шт.
11
P760-013085
HOSE-RUBBER LOW
TF400
2шт.
11
P760-013095
HOSE-RUBBER LOW
TF430
2шт.
11
P760-013105
HOSE-RUBBER LOW
TF450
2шт.
11
P760-013110
HOSE-RUBBER LOW
TF470
2шт.
11
P760-013120
HOSE-RUBBER LOW
TF500
2шт.
11
P760-013140
HOSE-RUBBER LOW
TF550
2шт.
11
P760-013160
HOSE-RUBBER LOW
TF600
2шт.
11
P760-013180
HOSE-RUBBER LOW
TF650 #0001
2шт.
11
P760-013200
HOSE-RUBBER LOW
TF700 #0001
2шт.
12
FMB0200610
PULLEY-HOSE
1шт.
13
S731-020025
DU BUSH
1шт.
14
FMC0200060
WASHER
1шт.
15
S601-020004
RING-RETAINING
1шт.
16
F12500182
CLAMP-F/REG
1шт.
17
S035-082022
BOLT-W/WASHER
NOT USED
2шт.
18
X820-085353
TEE-R/TYPE,ORFS
1шт.
19
31FG-80500
TEE-RETURN
1шт.
20
X520-110016
ELBOW-90,ORFS
HDF20-5 #0028
1шт.
20
X520-110023
ELBOW-90,ORFS
HDF20-5 #0029
1шт.
20
X520-110016
ELBOW-90,ORFS
HDF25-5 #0259
1шт.
20
X520-110023
ELBOW-90,ORFS
HDF25-5 #0260
1шт.
20
X520-110016
ELBOW-90,ORFS
HDF30-5 #0314
1шт.
20
X520-110023
ELBOW-90,ORFS
HDF30-5 #0315
1шт.
21
33FJ-80120
ELBOW WA
HDF20-5 #0028
1шт.
21
33FJ-80121
ELBOW WA
HDF20-5 #0029
1шт.
21
33FJ-80120
ELBOW WA
HDF25-5 #0259
1шт.
21
33FJ-80121
ELBOW WA
HDF25-5 #0260
1шт.
21
33FJ-80120
ELBOW WA
HDF30-5 #0314
1шт.
21
33FJ-80121
ELBOW WA
HDF30-5 #0315
1шт.
22
S631-018004
O-RING
2шт.
25
S037-102022
BOLT-W/WASHER
3шт.
26
6600343200B-01
BRACKET
1шт.
27
33FK-80220
BRACKET WA
1шт.
28
S037-123522
BOLT-W/WASHER
2шт.
29
S017-120502
BOLT-HEX
2шт.
32
S520-015000
CLAMP-HOSE
4шт.
33
S552-102370
CLAMP-HOSE
4шт.
34
31FA-80110
CLAMP-HOSE
4шт.
35
S035-082032
BOLT-W/WASHER
#0001
4шт.
Выбрано товаров: 133
