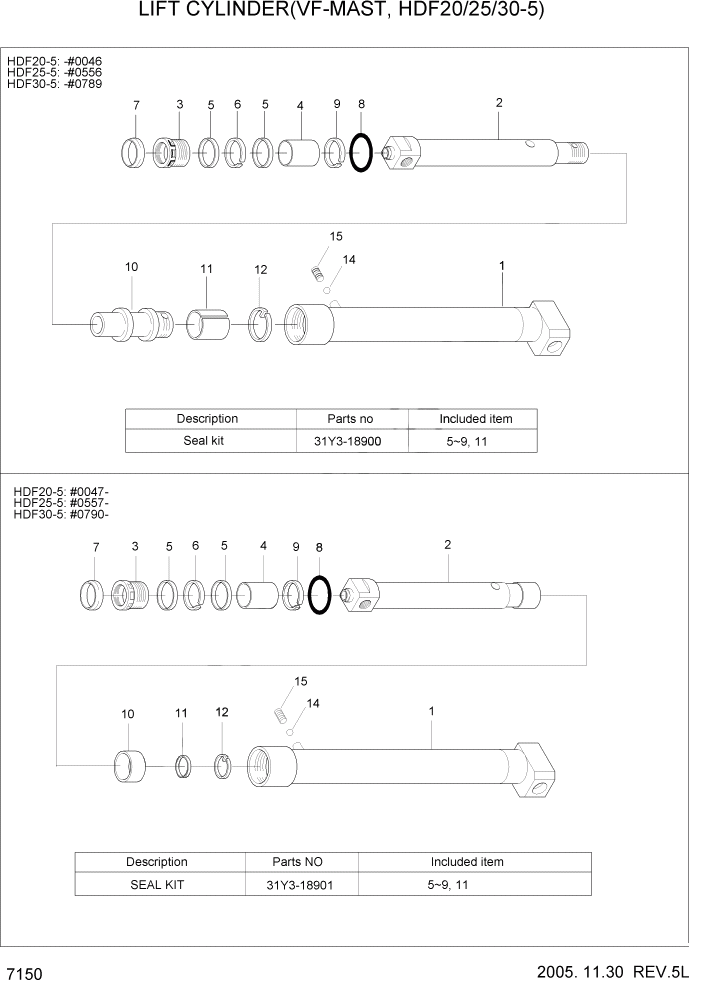

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 7150 LIFT CYLINDER(VF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

32FG-07010

CYLINDER-LIFT,VF300

VF300,20-5 #0046

1шт.

*

32FG-07011

CYLINDER-LIFT,VF300

VF300,20-5 #0047

1шт.

*

32FG-07010

CYLINDER-LIFT,VF300

VF300,25-5 #0656

1шт.

*

32FG-07011

CYLINDER-LIFT,VF300

VF300,25-5 #0657

1шт.

*

32FG-07010

CYLINDER-LIFT,VF300

VF300,30-5 #0789

1шт.

*

32FG-07011

CYLINDER-LIFT,VF300

VF300,30-5 #0790

1шт.

*

32FG-07020

CYLINDER-LIFT,VF330

VF330,20-5 #0046

1шт.

*

32FG-07021

CYLINDER-LIFT,VF330

VF330,20-5 #0047

1шт.

*

32FG-07020

CYLINDER-LIFT,VF330

VF330,25-5 #0656

1шт.

*

32FG-07021

CYLINDER-LIFT,VF330

VF330,25-5 #0657

1шт.

*

32FG-07020

CYLINDER-LIFT,VF330

VF330,30-5 #0789

1шт.

*

32FG-07021

CYLINDER-LIFT,VF330

VF330,30-5 #0790

1шт.

1

31Y3-18770

TUBE ASSY

VF300,20-5 #0046

1шт.

1

31Y3-18771

TUBE ASSY

VF300,20-5 #0047

1шт.

1

31Y3-18770

TUBE ASSY

VF300,25-5 #0656

1шт.

1

31Y3-18771

TUBE ASSY

VF300,25-5 #0657

1шт.

1

31Y3-18770

TUBE ASSY

VF300,30-5 #0789

1шт.

1

31Y3-18771

TUBE ASSY

VF300,30-5 #0790

1шт.

1

31Y3-18780

TUBE ASSY

VF330,20-5 #0046

1шт.

1

31Y3-18781

TUBE ASSY

VF330,20-5 #0047

1шт.

1

31Y3-18780

TUBE ASSY

VF330,25-5 #0656

1шт.

1

31Y3-18781

TUBE ASSY

VF330,25-5 #0657

1шт.

1

31Y3-18780

TUBE ASSY

VF330,30-5 #0789

1шт.

1

31Y3-18781

TUBE ASSY

VF330,30-5 #0790

1шт.

2

31Y3-18820

ROD

VF300,20-5 #0046

1шт.

2

31Y3-18821

ROD

VF300,20-5 #0047

1шт.

2

31Y3-18820

ROD

VF300,25-5 #0656

1шт.

2

31Y3-18821

ROD

VF300,25-5 #0657

1шт.

2

31Y3-18820

ROD

VF300,30-5 #0789

1шт.

2

31Y3-18821

ROD

VF300,30-5 #0790

1шт.

2

31Y3-18830

ROD

VF330,20-5 #0046

1шт.

2

31Y3-18831

ROD

VF330,20-5 #0047

1шт.

2

31Y3-18830

ROD

VF330,25-5 #0656

1шт.

2

31Y3-18831

ROD

VF330,25-5 #0657

1шт.

2

31Y3-18830

ROD

VF330,30-5 #0789

1шт.

2

31Y3-18831

ROD

VF330,30-5 #0790

1шт.

3

31Y3-18870

COVER-ROD

1шт.

4

S731-040030

BUSHING-DU

1шт.

K5

Y200-040011

SEAL-ROD

2шт.

K6

Y180-040020

RING-BACK UP

1шт.

K7

Y110-040011

WIPER-DUST

1шт.

K8

S632-050004

O-RING

1шт.

K9

S642-050003

RING-BACK UP

1шт.

10

31Y3-18880

PISTON

HDF20-5 #0046

1шт.

10

31Y3-27400

RING-PISTON

HDF20-5 #0047

1шт.

10

31Y3-18880

PISTON

HDF25-5 #0656

1шт.

10

31Y3-27400

RING-PISTON

HDF25-5 #0657

1шт.

10

31Y3-18880

PISTON

HDF30-5 #0789

1шт.

10

31Y3-27400

RING-PISTON

HDF30-5 #0790

1шт.

K11

Y300-055100

RING-WEAR

HDF20-5 #0046

1шт.

K11

31YC-99F60

SEAL-CUSHION

HDF20-5 #0047

1шт.

K11

Y300-055100

RING-WEAR

HDF25-5 #0656

1шт.

K11

31YC-99F60

SEAL-CUSHION

HDF25-5 #0657

1шт.

K11

Y300-055100

RING-WEAR

HDF30-5 #0789

1шт.

K11

31YC-99F60

SEAL-CUSHION

HDF30-5 #0790

1шт.

12

31YC-99G30

RING-LOCK

HDF20-5 #0046

1шт.

12

31YC-99F70

RING-RETAINING

HDF20-5 #0047

1шт.

12

31YC-99G30

RING-LOCK

HDF25-5 #0656

1шт.

12

31YC-99F70

RING-RETAINING

HDF25-5 #0357

1шт.

12

31YC-99G30

RING-LOCK

HDF30-5 #0789

1шт.

12

31YC-99F70

RING-RETAINING

HDF30-5 #0790

1шт.

14

Y890-013011

BALL-STEEL

1шт.

15

S113-060084

SCREW-SET

1шт.

K

31Y3-18900

SEAL KIT

SEE ILLUST,20-5 #0046

1шт.

K

31Y3-18901

SEAL KIT

SEE ILLUST,20-5 #0047

1шт.

K

31Y3-18900

SEAL KIT

SEE ILLUST,25-5 #0656

1шт.

K

31Y3-18901

SEAL KIT

SEE ILLUST,25-5 #0657

1шт.

K

31Y3-18900

SEAL KIT

SEE ILLUST,30-5 #0789

1шт.

K

31Y3-18901

SEAL KIT

SEE ILLUST,30-5 #0790

1шт.
