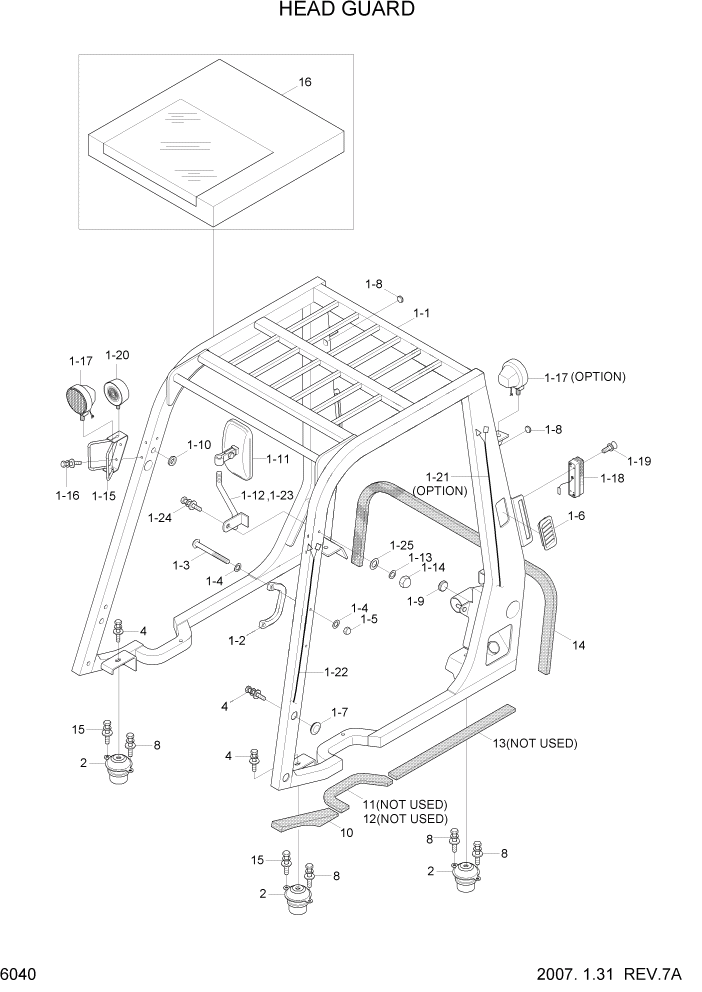

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 6040 HEAD GUARD СТРУКТУРА

1

71FG-30211

HEAD GUARD SUB ASSY

WITH WORK LAMP

1шт.

1

71FG-30230

HEAD GUARD SUB ASSY

W/O WORK LAMP

1шт.

1-1

71FG-30013

HEAD GUARD WA

1шт.

1-2

FAC0900100

GRIP-ASSIST

1шт.

1-3

20C106065

SCREW-ROUND HEAD

2шт.

1-4

S403-062002

WASHER-PLAIN

4шт.

1-5

S295-060002

NUT-DOMED CAP

2шт.

1-6

51FA-90040

COVER-AIR INTAKE

1шт.

1-7

FHC0904100

RUBBER-STAY

4шт.

1-8

S681-190400

GROMMET

2шт.

1-9

S681-290400

GROMMET

2шт.

1-1

S681-230400

GROMMET

2шт.

1-11

71FG-30220

MIRROR-BACK

2шт.

1-12

71FG-30360

BRACKET-MIRROR,LH

1шт.

1-13

S411-100002

WASHER-SPRING

2шт.

1-14

S295-100002

NUT-DOMED CAP

2шт.

1-15

F12130093B

PROTECTOR-HEAD LAMP

2шт.

1-16

S035-082022

BOLT-W/WASHER

4шт.

1-17

F12840010

LAMP SUB ASSY-WORK

WITH WORK LAMP

3шт.

1-17

F12840010

LAMP SUB ASSY-WORK

W/O WORK LAMP

2шт.

1-17-1

S866-120550

BULB

NOT SHOWN

1шт.

1-18

F12840050

COMB LAMP ASSY-RR

2шт.

1-18-1

S861-021000

BULB(12V 10W)

NOT SHOWN

1шт.

1-18-2

S861-072300

BULB

NOT SHOWN

1шт.

1-18-3

S863-072308

BULB(23/8W)

NOT SHOWN

1шт.

1-19

S131-051026

SCREW-W/WASHER

4шт.

1-2

F12840020

LAMP-FLASHER

2шт.

1-20-1

S863-072308

BULB(23/8W)

NOT SHOWN

1шт.

1-21

F13800140

HARNESS-WORK LAMP

HDF20-5 #0080

1шт.

1-21

21FJ-10080

HARNESS-REAR SUPPORT

HDF20-5 #0081

1шт.

1-21

F13800140

HARNESS-WORK LAMP

HDF25-5 #1067

1шт.

1-21

21FJ-10080

HARNESS-REAR SUPPORT

HDF25-5 #1068

1шт.

1-21

F13800140

HARNESS-WORK LAMP

HDF30-5 #1443

1шт.

1-21

21FJ-10080

HARNESS-REAR SUPPORT

HDF30-5 #1444

1шт.

1-22

21FG-10360

HARNESS(R/L)-SUPPORT

2шт.

1-23

71FG-30370

BRACKET-MIRROR,RH

1шт.

1-24

S037-104552

BOLT-W/WASHER

2шт.

1-25

S403-101002

WASHER-PLAIN

2шт.

2

Q101968000

RUBBER-MOUNTING

HDF20-5,HD:55 #0041

4шт.

2

71FV-30800

MOUNT-HEAD GUARD

HDF20-5,HD:55 #0042

4шт.

2

Q101968000

RUBBER-MOUNTING

HDF25-5,HD:55 #0530

4шт.

2

71FV-30800

MOUNT-HEAD GUARD

HDF25-5,HD:55 #0531

4шт.

2

Q101968000

RUBBER-MOUNTING

HDF30-5,HD:55 #0614

4шт.

2

71FV-30800

MOUNT-HEAD GUARD

HDF30-5,HD:55 #0615

4шт.

2

71HA-30800

MOUNT-HEAD GUARD

HD:65 #0001

4шт.

4

S037-122522

BOLT-W/WASHER

8шт.

8

S037-102522

BOLT-W/WASHER

#0001

6шт.

10

71FG-30610

SPONGE

2шт.

11

71FG-30620

SPONGE

NOT USED

1шт.

12

71FG-30630

SPONGE

NOT USED

1шт.

13

71FG-30640

SPONGE

NOT USED

2шт.

14

71FG-30650

SPONGE

1шт.

15

S037-101522

BOLT-W/WASHER

#0001

2шт.

16

71FG-35000

RAIN COVER

HDF20-5 #0044

1шт.

16

71FG-35000

RAIN COVER

HDF25-5 #0597

1шт.

16

71FG-35000

RAIN COVER

HDF30-5 #0668

1шт.
