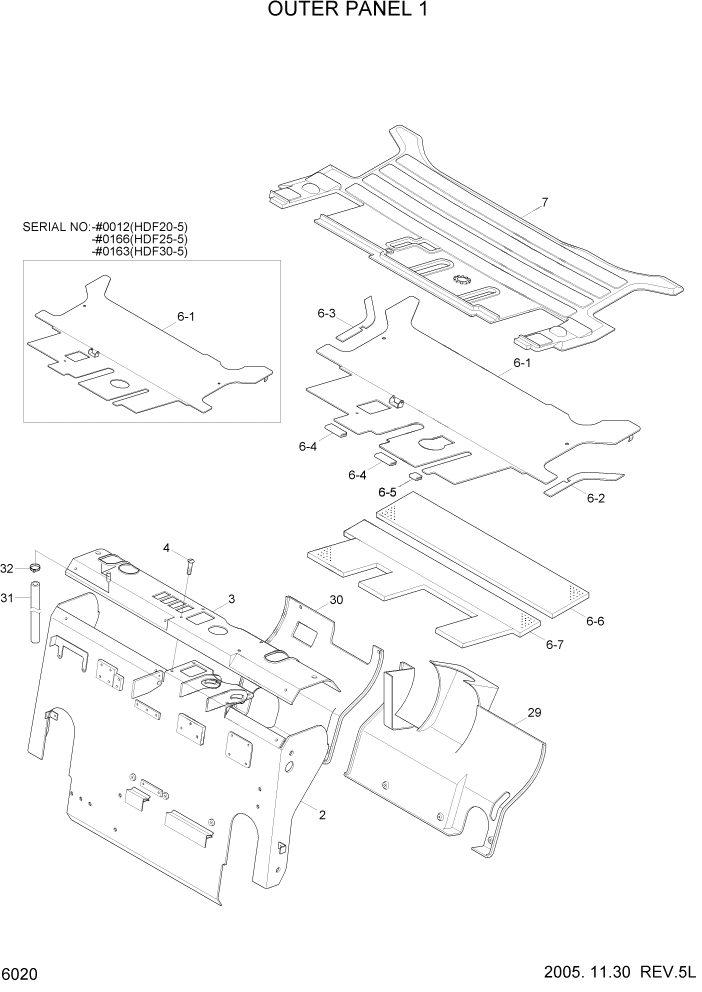

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 6020 OUTER PANEL 1 СТРУКТУРА

2

71FG-10023

DASH BOARD WA

HDF20-5 #0054

1шт.

2

71FG-10024

DASH BOARD WA

HDF20-5 #0055

1шт.

2

71FG-10023

DASH BOARD WA

HDF25-5 #0695

1шт.

2

71FG-10024

DASH BOARD WA

HDF25-5 #0696

1шт.

2

71FG-10023

DASH BOARD WA

HDF30-5 #0850

1шт.

2

71FG-10024

DASH BOARD WA

HDF30-5 #0851

1шт.

3

71FG-10032

COVER-DASH BOARD

1шт.

4

S131-061546

SCREW-W/WASHER

14шт.

6

71FG-10041

FLOOR SUB ASSY

HDF20-5 #0012

1шт.

6

71FG-10042

FLOOR SUB ASSY

HDF20-5 #0013

1шт.

6

71FG-10041

FLOOR SUB ASSY

HDF25-5 #0166

1шт.

6

71FG-10042

FLOOR SUB ASSY

HDF25-5 #0167

1шт.

6

71FG-10041

FLOOR SUB ASSY

HDF30-5 #0163

1шт.

6

71FG-10042

FLOOR SUB ASSY

HDF30-5 #0164

1шт.

6-1

71FG-10141

FLOOR PLATE WA

HDF20-5 #0012

1шт.

6-1

71FG-10142

FLOOR PLATE WA

HDF20-5 #0013

1шт.

6-1

71FG-10141

FLOOR PLATE WA

HDF25-5 #0166

1шт.

6-1

71FG-10142

FLOOR PLATE WA

HDF25-5 #0167

1шт.

6-1

71FG-10141

FLOOR PLATE WA

HDF30-5 #0163

1шт.

6-1

71FG-10142

FLOOR PLATE WA

HDF30-5 #0164

1шт.

6-2

71FG-10150

RUBBER

1шт.

6-3

71FG-10160

RUBBER

1шт.

6-4

71FG-10170

RUBBER

2шт.

6-5

71FG-10180

RUBBER

1шт.

6-6

71FG-10330

SPONGE

1шт.

6-7

71FG-10340

SPONGE

1шт.

7

71FG-10051

MAT-FLOOR

STD, OHG

1шт.

29

71FG-10080

COVER FRONT-LH

1шт.

30

71FG-10090

COVER FRONT-RH

1шт.

31

P760-011050

HOSE-RUBBER LOW

2шт.

32

S520-015000

CLAMP-HOSE

2шт.
