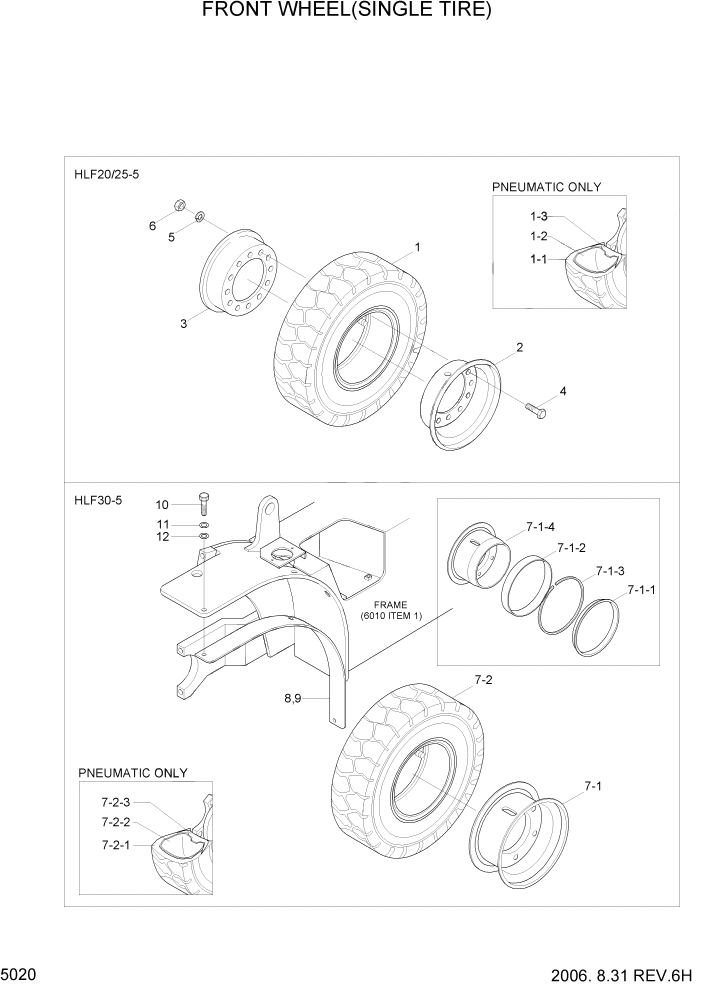

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 5020 FRONT WHEEL(SINGLE TIRE) СИСТЕМА УПРАВЛЕНИЯ

*

81FG-20010

FRONT WHEEL ASSY

P,HDF20/25-5

1шт.

*

81FG-21010

FRONT WHEEL ASSY

S,HDF20/25-5

1шт.

*

81FG-22040

FRONT WHEEL ASSY

N,HDF20/25-5

1шт.

1

81FA-21300

TIRE ASSY

PNEU,KUMHO

1шт.

1

81FA-21300H

TIRE

PNEU,HANKOOK

1шт.

1-1

81FA-21310

TIRE

PNEUMATIC

1шт.

1-2

81FA-21320

TUBE

PNEU,KUMHO

1шт.

1-2

81FA-21320H

TUBE-TIRE(7.00-12-12)

PNEU,HANKOOK

1шт.

1-3

81FA-21330

FLAP

PNEU,KUMHO

1шт.

1-3

81FA-21330H

FLAP

PNEU,HANKOOK

1шт.

1

3631006900

TIRE-SOLID

SOLID

1шт.

1

81FE-20920

TIRE-NON MARKING

NON-MARKING

1шт.

2

FAC0400020B

RIM-WHEEL

1шт.

3

FAC0400030B

RIM-WHEEL

1шт.

4

S018-160352

BOLT-HEX

6шт.

5

S411-160002

WASHER-SPRING

6шт.

6

S206-161002

NUT-HEX

6шт.

*

@

FRONT WHEEL

NOT

1шт.

7

FAC0400002

FRONT WHEEL ASSY

PNEUMATIC

2шт.

7

FAC0400003

FRONT WHEEL ASSY

SOLID

2шт.

7

81FG-22010

FRONT WHEEL ASSY

NON-MARKING

2шт.

7-1

F12400010

RIM-WHEEL

2шт.

7-1-1

2026-100-02

RING-SIDE

#0001

2шт.

7-1-2

2026-100-03

RING-BRAD SEAT

#0001

2шт.

7-1-3

2026-100-01

RING-LOCK

#0001

2шт.

7-1-4

2026-101-01

BASE-RIM

#0001

2шт.

7-2

81FA-26300

TIRE ASSY

PNEU,KUMHO

2шт.

7-2

81FA-26300H

TIRE

PNEU,HANKOOK

2шт.

7-2-1

81FA-26310

TIRE

PNEU,KUMHO

2шт.

7-2-1

81FA-26310H

TIRE

PNEU,HANKOOK

2шт.

7-2-2

81FA-26320

TUBE

PNEU,KUMHO

2шт.

7-2-2

81FA-26320H

TUBE

PNEU,HANKOOK

2шт.

7-2-3

81FA-26330

FLAP

PNEU,KUMHO

2шт.

7-2-3

81FA-26330H

FLAP

PNEU,HANKOOK

2шт.

7-2

Q101880000

TIRE ASSY-SOLID

SOLID

2шт.

7-2

81FG-22020

TIRE-NON MARKING

NON-MARKING

2шт.

8

81FG-20131

COVER-FENDER,LH

1шт.

9

81FG-20231

COVER-FENDER,RH

1шт.

10

S017-100352

BOLT-HEX

6шт.

11

S411-100002

WASHER-SPRING

6шт.

12

S403-101002

WASHER-PLAIN

6шт.
