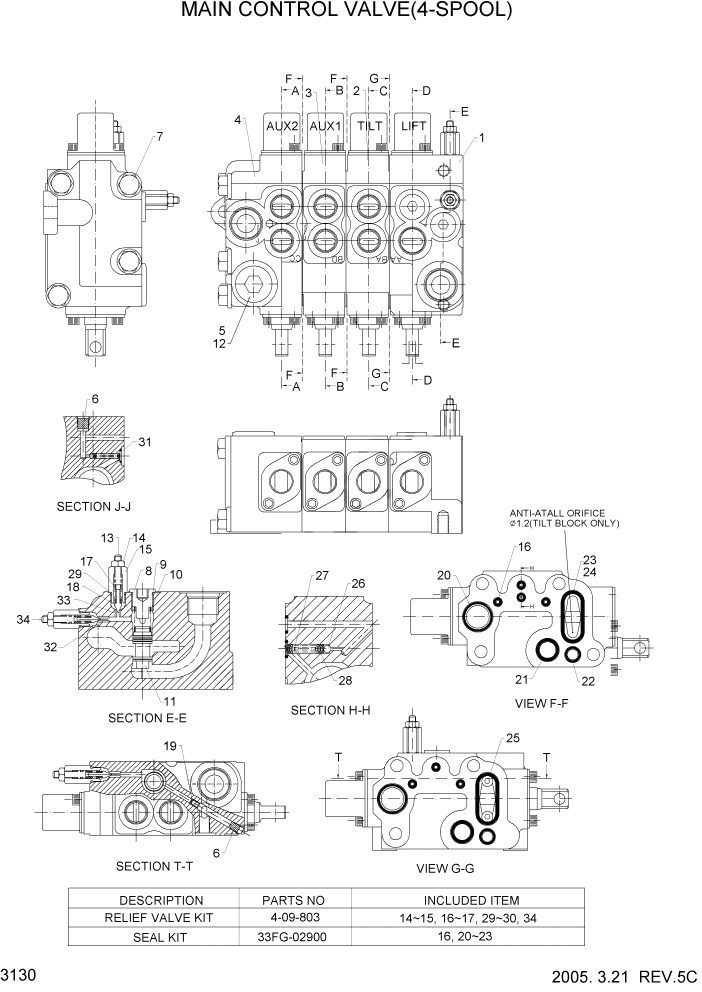

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 3130 MAIN CONTROL VAVLE(4-SPOOL) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

33FG-02000

MAIN CONTROL VALVE

4-SPOOL,20-5 #0035

1шт.

*

33FG-02001

MAIN CONTROL VALVE

4-SPOOL,20-5 #0036

1шт.

*

33FG-02000

MAIN CONTROL VALVE

4-SPOOL,25-5 #0384

1шт.

*

33FG-02001

MAIN CONTROL VALVE

4-SPOOL,25-5 #0385

1шт.

*

33FG-02000

MAIN CONTROL VALVE

4-SPOOL,30-5 #0444

1шт.

*

33FG-02001

MAIN CONTROL VALVE

4-SPOOL,30-5 #0445

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HDF20-5 #0035

1шт.

1

XKBF-00475

LIFT BLOCK ASSY

HDF20-5 #0036

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HDF25-5 #0384

1шт.

1

XKBF-00475

LIFT BLOCK ASSY

HDF25-5 #0385

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HDF30-5 #0444

1шт.

1

XKBF-00475

LIFT BLOCK ASSY

HDF30-5 #0445

1шт.

2

32FG-02020

TILT BLOCK ASSY

HDF20-5 #0035

1шт.

2

XKBF-00474

TILT BLOCK ASSY

HDF20-5 #0036

1шт.

2

32FG-02020

TILT BLOCK ASSY

HDF25-5 #0384

1шт.

2

XKBF-00474

TILT BLOCK ASSY

HDF25-5 #0385

1шт.

2

32FG-02020

TILT BLOCK ASSY

HDF30-5 #0444

1шт.

2

XKBF-00474

TILT BLOCK ASSY

HDF30-5 #0445

1шт.

3

33FG-02010

AUX BLOCK ASSY1

1шт.

4

32FG-02030

AUX BLOCK ASSY2

1шт.

5

32FG-02040

PLUG

1шт.

6

33FG-02020

PLUG-BLIND

#0001

2шт.

7

33FG-02030

BOLT-LONG

#0001

4шт.

8

32FG-02070

PLUG-HYDROSTAT

1шт.

9

32FG-02080

O-RING

1шт.

10

32FG-02090

SPRING-HYDROSTAT

1шт.

11

32FG-02100

SLEEVE-HYDROSTAT

1шт.

12

32FG-02110

O-RING

1шт.

13

32FG-02120

PISTON-RELIEF

2шт.

R14

32FG-02130

NUT

2шт.

R15

32FG-02140

PLUG-RELIEF

2шт.

K16

32FG-02150

O-RING

12шт.

R17

32FG-02160

SPRING-RELIEF

2шт.

R18

32FG-02170

PILOT-POPPET

2шт.

19

32FG-02180

BLIND PLUG-ORIFICE

HDF20-5 #0035

1шт.

19

XKBF-00470

BLIND PLUG-ORIFICE

HDF20-5 #0036

1шт.

19

32FG-02180

BLIND PLUG-ORIFICE

HDF25-5 #0384

1шт.

19

XKBF-00470

BLIND PLUG-ORIFICE

HDF25-5 #0385

1шт.

19

32FG-02180

BLIND PLUG-ORIFICE

HDF30-5 #0444

1шт.

19

XKBF-00470

BLIND PLUG-ORIFICE

HDF30-5 #0445

1шт.

K20

32FG-02190

O-RING

3шт.

K21

32FG-02200

O-RING

3шт.

K22

32FG-02210

O-RING

3шт.

K23

32FG-02220

O-RING

3шт.

24

32FG-02230

RETAINER

3шт.

25

32FG-02240

PLUG-BLIND

2шт.

26

32FG-02250

BALL-STEEL

3шт.

27

32FG-02260

SPRING

3шт.

28

32FG-02270

SPRING

3шт.

R29

32FG-02280

O-RING

2шт.

R30

32FG-02290

O-RING

2шт.

31

32FG-02300

PLATE-SIDE

1шт.

32

32FG-02310

SEAT

1шт.

33

32FG-02320

SEAT

1шт.

R34

32FG-02330

PISTON-RELIEF

2шт.

R

400571

RELIEF VALVE KIT

1шт.

K

33FG-02900

SEAL KIT

1шт.
