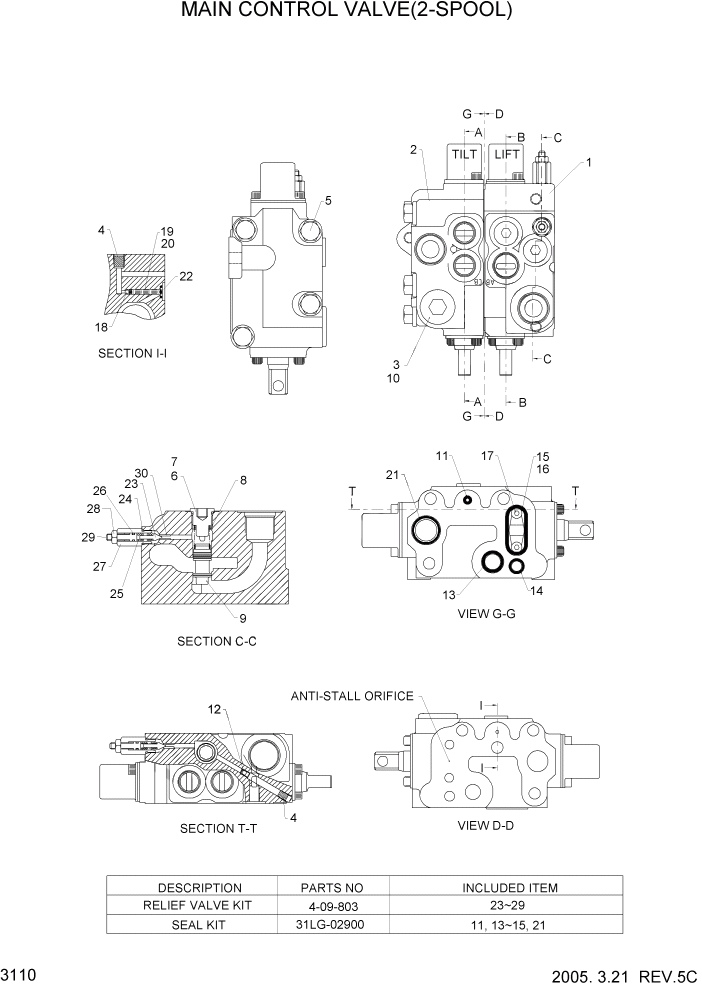

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 3110 MAIN CONTROL VALVE(2-SPOOL) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31FG-02000

MAIN CONTROL VALVE

2-SPOOL,20-5 #0035

1шт.

*

31FG-02001

MAIN CONTROL VALVE

2-SPOOL,20-5 #0036

1шт.

*

31FG-02000

MAIN CONTROL VALVE

2-SPOOL,25-5 #0384

1шт.

*

31FG-02001

MAIN CONTROL VALVE

2-SPOOL,25-5 #0385

1шт.

*

31FG-02000

MAIN CONTROL VALVE

2-SPOOL,30-5 #0444

1шт.

*

31FG-02001

MAIN CONTROL VALVE

2-SPOOL,30-5 #0445

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HDF20-5 #0035

1шт.

1

XKBF-00471

LIFT BLOCK ASSY

HDF20-5 #0036

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HDF25-5 #0384

1шт.

1

XKBF-00471

LIFT BLOCK ASSY

HDF25-5 #0385

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HDF30-5 #0444

1шт.

1

XKBF-00471

LIFT BLOCK ASSY

HDF30-5 #0445

1шт.

2

31FG-02010

TILT BLOCK ASSY

HDF20-5 #0035

1шт.

2

XKBF-00472

TILT BLOCK ASSY

HDF20-5 #0036

1шт.

2

31FG-02010

TILT BLOCK ASSY

HDF25-5 #0384

1шт.

2

XKBF-00472

TILT BLOCK ASSY

HDF25-5 #0385

1шт.

2

31FG-02010

TILT BLOCK ASSY

HDF30-5 #0444

1шт.

2

XKBF-00472

TILT BLOCK ASSY

HDF30-5 #0445

1шт.

3

32FG-02040

PLUG

1шт.

4

31FG-02020

PLUG-BLIND

#0001

2шт.

5

31FG-02030

BOLT-LONG

#0001

4шт.

6

32FG-02070

PLUG-HYDROSTAT

1шт.

7

32FG-02080

O-RING

1шт.

8

32FG-02090

SPRING-HYDROSTAT

1шт.

9

32FG-02100

SLEEVE-HYDROSTAT

1шт.

10

32FG-02110

O-RING

1шт.

K11

32FG-02150

O-RING

2шт.

12

32FG-02180

BLIND PLUG-ORIFICE

HDF20-5 #0035

1шт.

12

XKBF-00470

BLIND PLUG-ORIFICE

HDF20-5 #0036

1шт.

12

32FG-02180

BLIND PLUG-ORIFICE

HDF25-5 #0384

1шт.

12

XKBF-00470

BLIND PLUG-ORIFICE

HDF25-5 #0385

1шт.

12

32FG-02180

BLIND PLUG-ORIFICE

HDF30-5 #0444

1шт.

12

XKBF-00470

BLIND PLUG-ORIFICE

HDF30-5 #0445

1шт.

K13

32FG-02200

O-RING

1шт.

K14

32FG-02210

O-RING

1шт.

K15

32FG-02220

O-RING

1шт.

16

32FG-02230

RETAINER

1шт.

17

32FG-02240

PLUG-BLIND

1шт.

18

32FG-02250

BALL-STEEL

1шт.

19

32FG-02260

SPRING

1шт.

20

32FG-02270

SPRING

1шт.

K21

32FG-02190

O-RING

1шт.

22

32FG-02300

PLATE-SIDE

1шт.

R23

32FG-02170

PILOT-POPPET

1шт.

R24

32FG-02280

O-RING

1шт.

R25

32FG-02160

SPRING-RELIEF

1шт.

R26

32FG-02290

O-RING

1шт.

R27

32FG-02140

PLUG-RELIEF

1шт.

R28

32FG-02130

NUT

1шт.

R29

32FG-02120

PISTON-RELIEF

1шт.

30

32FG-02310

SEAT

1шт.

R

400571

RELIEF VALVE KIT

SEE ILLUST

1шт.

K

31FG-02900

SEAL KIT

SEE ILLUST

1шт.
