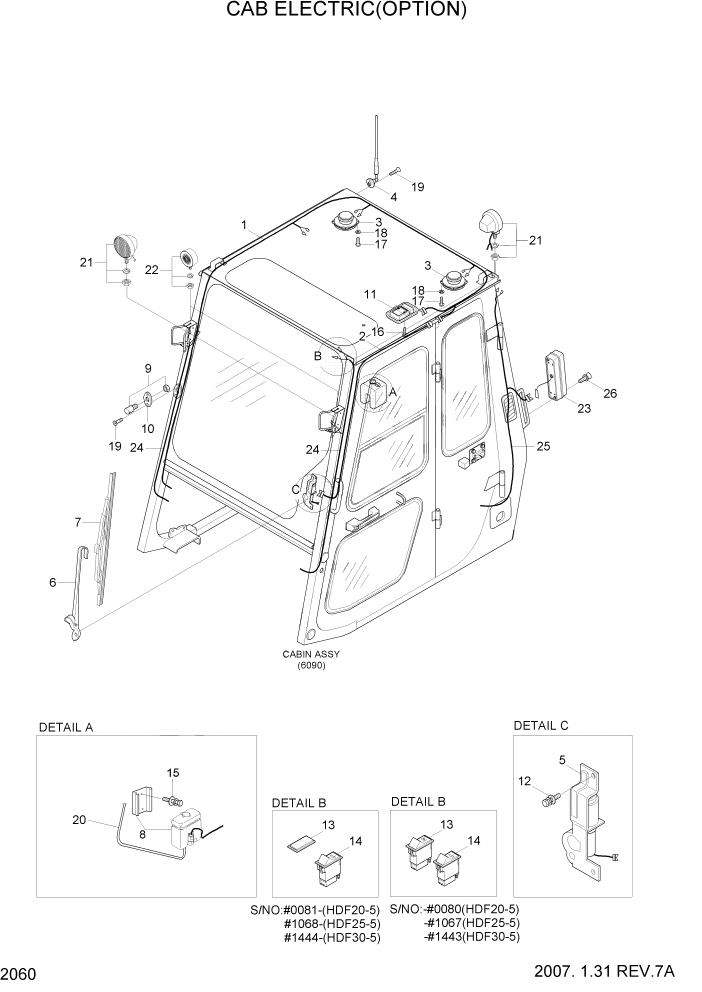

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 2060 CAB ELECTRIC(OPTION) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

@

CABIN ELECTRIC

NOT #0040 - #0080

1шт.

*

@

CABIN ELECTRIC

NOT #0081

1шт.

*

@

CABIN ELECTRIC

NOT #0414 - #1067

1шт.

*

@

CABIN ELECTRIC

NOT #1068

1шт.

*

@

CABIN ELECTRIC

NOT #0466 - #1443

1шт.

*

@

CABIN ELECTRIC

NOT #1444

1шт.

1

21FG-19010

HARNESS-CABIN 1

HDF20-5 #0056

1шт.

1

21FG-19011

HARNESS-CABIN 1

HDF20-5 #0057

1шт.

1

21FG-19010

HARNESS-CABIN 1

HDF25-5 #0728

1шт.

1

21FG-19011

HARNESS-CABIN 1

HDF25-5 #0729

1шт.

1

21FG-19010

HARNESS-CABIN 1

HDF30-5 #0864

1шт.

1

21FG-19011

HARNESS-CABIN 1

HDF30-5 #0865

1шт.

2

21FG-19020

HARNESS-CABIN 2

1шт.

3

21L7-40210

SPEAKER

HDF20-5 #0056

2шт.

3

21LB-20401

SPEAKER ASSY

HDF20-5 #0057

2шт.

3

21L7-40210

SPEAKER

HDF25-5 #0728

2шт.

3

21LB-20401

SPEAKER ASSY

HDF25-5 #0729

2шт.

3

21L7-40210

SPEAKER

HDF30-5 #0864

2шт.

3

21LB-20401

SPEAKER ASSY

HDF30-5 #0865

2шт.

4

21L6-30660

ANTENNA ASSY

1шт.

5

21M7-30310

MOTOR-WIPER

1шт.

6

21M6-52050

ARM-WIPER

1шт.

7

21M6-52060

BLADE-WIPER

1шт.

8

21E3-3008

TANK-WASHER

1шт.

9

24L3-41090

NOZZLE

1шт.

10

21M6-52081

PLATE

1шт.

11

21M5-0304

LAMP-ROOM

1шт.

12

S037-102026

BOLT-W/WASHER

2шт.

13

21S4-09040

SWITCH-HEATER

HDF20-5 #0080

1шт.

13

21E6-10460

COVER

HDF20-5 #0081

1шт.

13

21S4-09040

SWITCH-HEATER

HDF25-5 #1067

1шт.

13

21E6-10460

COVER

HDF25-5 #1068

1шт.

13

21S4-09040

SWITCH-HEATER

HDF30-5 #1443

1шт.

13

21E6-10460

COVER

HDF30-5 #1444

1шт.

14

21M6-53300

SWITCH-WIPER/WASHER

1шт.

15

S035-061526

BOLT-W/WASHER

2шт.

16

S132-061526

SCREW-W/WASHER

2шт.

17

S161-050106

SCREW-CROSS R/ROUND

8шт.

18

S411-050006

WASHER-SPRING

8шт.

19

S151-040156

SCREW-TAPPING

4шт.

20

21EM-10890

HOSE-WASHER TANK

HDF20-5 #0080

1шт.

20

21EM-30581

HOSE-RUBBER

HDF20-5 #0081

1шт.

20

21EM-10890

HOSE-WASHER TANK

HDF25-5 #1067

1шт.

20

21EM-30581

HOSE-RUBBER

HDF25-5 #1068

1шт.

20

21EM-10890

HOSE-WASHER TANK

HDF30-5 #1443

1шт.

20

21EM-30581

HOSE-RUBBER

HDF30-5 #1444

1шт.

21

F12840010

LAMP SUB ASSY-WORK

3шт.

21-1

S866-120550

BULB

NOT SHOWN

1шт.

22

F12840020

LAMP-FLASHER

2шт.

22-1

S863-072308

BULB(23/8W)

NOT SHOWN

1шт.

23

F12840050

COMB LAMP ASSY-RR

1шт.

23-1

S861-021000

BULB(12V 10W)

NOT SHOWN

1шт.

23-1

S861-072300

BULB

NOT SHOWN

1шт.

23-1

S863-072308

BULB(23/8W)

NOT SHOWN

1шт.

24

21FG-10360

HARNESS(R/L)-SUPPORT

2шт.

25

21FG-19030

HARNESS-REAR SUPPORT

HDF20-5 #0080

1шт.

25

21FJ-10080

HARNESS-REAR SUPPORT

HDF20-5 #0081

1шт.

25

21FG-19030

HARNESS-REAR SUPPORT

HDF25-5 #1067

1шт.

25

21FJ-10080

HARNESS-REAR SUPPORT

HDF25-5 #1068

1шт.

25

21FG-19030

HARNESS-REAR SUPPORT

HDF30-5 #1443

1шт.

25

21FJ-10080

HARNESS-REAR SUPPORT

HDF30-5 #1444

1шт.

26

S131-051026

SCREW-W/WASHER

4шт.
