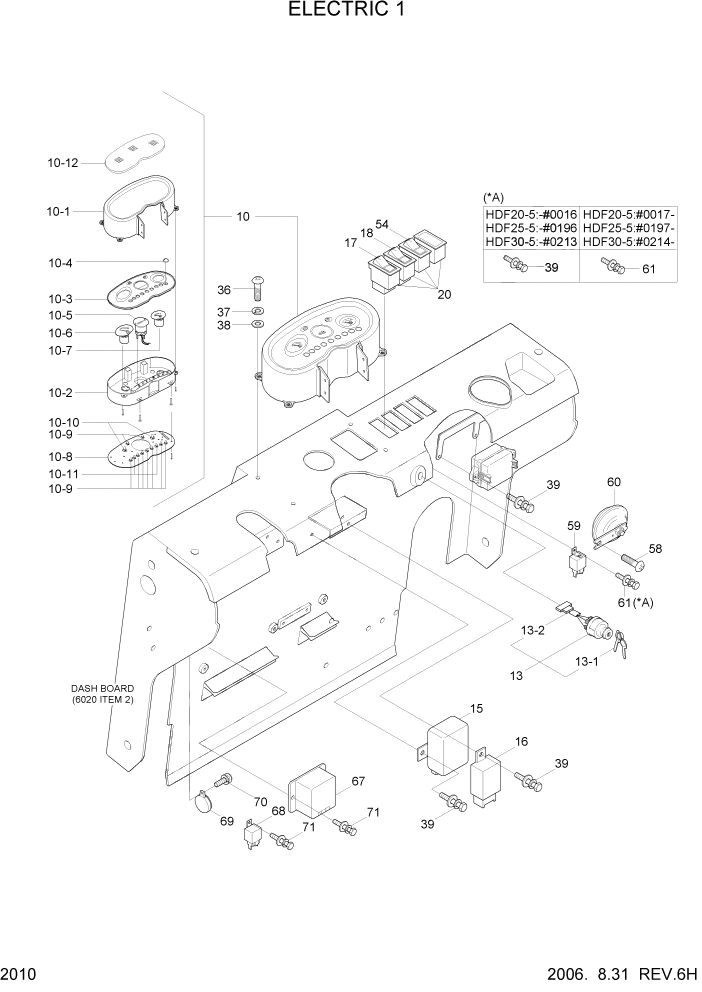

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 2010 ELECTRIC 1 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

10

21FG-10610

PANEL-OPERATING(12V)

1шт.

N10-1

71FG-20050

COVER-OP PANEL

NOT #0001

1шт.

N10-2

F12870040

CASE-REAR

NOT #0001

1шт.

N10-3

21FG-10720

PANEL-RAISED

NOT #0001

1шт.

N10-4

F12870060

LENS-INDICATOR

NOT #0001

1шт.

N10-5

21FG-10700

METER-HOUR

NOT #0001

1шт.

N10-6

F12870080

METER-WATER TEMP

NOT #0001

1шт.

N10-7

21FG-10710

MOVEMENT-FUEL

NOT #0001

1шт.

N10-8

F12870100

PCB-MAIN BOARD

NOT #0001

1шт.

10-9

265055014

BULB-14V/1.4W

9шт.

10-1

265055034

BULB-14V/3.4W

2шт.

10-11

265055130

BULB-12V/3.0W

2шт.

N10-12

F12870030

GLASS-WINDOW

NOT #0001

1шт.

13

21FJ-10050

SWITCH-START

HDF20-5 #0041

1шт.

13

21FJ-10051

SWITCH-START

HDF20-5 #0042

1шт.

13

21FJ-10050

SWITCH-START

HDF25-5 #0518

1шт.

13

21FJ-10051

SWITCH-START

HDF25-5 #0519

1шт.

13

21FJ-10050

SWITCH-START

HDF30-5 #0601

1шт.

13

21FJ-10051

SWITCH-START

HDF30-5 #0602

1шт.

13-1

21F6-20070

KEY ASSY

HDF20-5 #0041

2шт.

13-1

21FJ-10151

KEY ASSY

HDF20-5 #0042

2шт.

13-1

21F6-20070

KEY ASSY

HDF25-5 #0518

2шт.

13-1

21FJ-10151

KEY ASSY

HDF25-5 #0519

2шт.

13-1

21F6-20070

KEY ASSY

HDF30-5 #0601

2шт.

13-1

21FJ-10151

KEY ASSY

HDF30-5 #0602

2шт.

13-2

21FJ-10060

HARNESS-START SW

1шт.

15

F21860011

RELAY-FLASHER

HDF20-5 #0041

1шт.

15

F21860012

RELAY-FLASHER

HDF20-5 #0042

1шт.

15

F21860011

RELAY-FLASHER

HDF25-5 #0476

1шт.

15

F21860012

RELAY-FLASHER

HDF25-5 #0477

1шт.

15

F21860011

RELAY-FLASHER

HDF30-5 #0550

1шт.

15

F21860012

RELAY-FLASHER

HDF30-5 #0551

1шт.

16

F12860010

DETECTOR

1шт.

17

21M8-01120

SWITCH-W/LAMP(12V)

1шт.

18

21M5-25000

SWITCH-HAZARD

1шт.

20

21E6-10460

COVER

4шт.

36

S161-040162

SCREW-RD HD

4шт.

37

S411-040002

WASHER-SPRING

4шт.

38

S403-042002

WASHER-PLAIN

4шт.

39

S035-061522

BOLT-W/WASHER

HDF20-5 #0016

6шт.

39

S035-061522

BOLT-W/WASHER

HDF20-5 #0017

5шт.

39

S035-061522

BOLT-W/WASHER

HDF25-5 #0196

6шт.

39

S035-061522

BOLT-W/WASHER

HDF25-5 #0197

5шт.

39

S035-061522

BOLT-W/WASHER

HDF30-5 #0213

6шт.

39

S035-061522

BOLT-W/WASHER

HDF30-5 #0214

5шт.

54

21M6-00400

SWITCH-BEACON

1шт.

58

S161-050202

SCREW-RD HD

B/LAMP,HDF20-5 #0016

1шт.

58

S161-050202

SCREW-RD HD

OPT,HDF20-5 #0017

1шт.

58

S161-050202

SCREW-RD HD

B/LAMP,HDF25-5 #0196

1шт.

58

S161-050202

SCREW-RD HD

OPT,HDF25-5 #0197

1шт.

58

S161-050202

SCREW-RD HD

B/LAMP,HDF30-5 #0213

1шт.

58

S161-050202

SCREW-RD HD

OPT,HDF30-5 #0214

1шт.

59

21E3-0011

RELAY

B/LAMP,HDF20-5 #0016

1шт.

59

21E3-0011

RELAY

OPT,HDF20-5 #0017

1шт.

59

21E3-0011

RELAY

B/LAMP,HDF25-5 #0196

1шт.

59

21E3-0011

RELAY

OPT,HDF25-5 #0197

1шт.

59

21E3-0011

RELAY

B/LAMP,HDF30-5 #0213

1шт.

59

21E3-0011

RELAY

OPT,HDF30-5 #0214

1шт.

60

320008040

WARNING BUZZER

B/LAMP,HDF20-5 #0016

1шт.

60

320008040

WARNING BUZZER

OPT,HDF20-5 #0017

1шт.

60

320008040

WARNING BUZZER

B/LAMP,HDF25-5 #0196

1шт.

60

320008040

WARNING BUZZER

OPT,HDF25-5 #0197

1шт.

60

320008040

WARNING BUZZER

B/LAMP,HDF30-5 #0213

1шт.

60

320008040

WARNING BUZZER

OPT,HDF30-5 #0214

1шт.

61

S035-061526

BOLT-W/WASHER

OPT,HDF20-5 #0017

1шт.

61

S035-061526

BOLT-W/WASHER

OPT,HDF25-5 #0197

1шт.

61

S035-061526

BOLT-W/WASHER

OPT,HDF30-5 #0214

1шт.

67

21FU-10610

OPS UNIT

HDF20-5,OPSS #0055

1шт.

67

21FU-10610

OPS UNIT

HDF25-5,OPSS #0718

1шт.

67

21FU-10610

OPS UNIT

HDF30-5,OPSS #0860

1шт.

68

21E3-0025

RELAY

HDF20-5,OPSS #0055

1шт.

68

21E3-0025

RELAY

HDF25-5,OPSS #0718

1шт.

68

21E3-0025

RELAY

HDF30-5,OPSS #0860

1шт.

69

320008040

WARNING BUZZER

HDF20-5,OPSS #0055

1шт.

69

320008040

WARNING BUZZER

HDF25-5,OPSS #0718

1шт.

69

320008040

WARNING BUZZER

HDF30-5,OPSS #0860

1шт.

70

S161-050206

SCREW-RD HD

HDF20-5,OPSS #0055

1шт.

70

S161-050206

SCREW-RD HD

HDF25-5,OPSS #0718

1шт.

70

S161-050206

SCREW-RD HD

HDF30-5,OPSS #0860

1шт.

71

S035-061526

BOLT-W/WASHER

HDF20-5,OPSS #0055

3шт.

71

S035-061526

BOLT-W/WASHER

HDF25-5,OPSS #0718

3шт.

71

S035-061526

BOLT-W/WASHER

HDF30-5,OPSS #0860

3шт.
