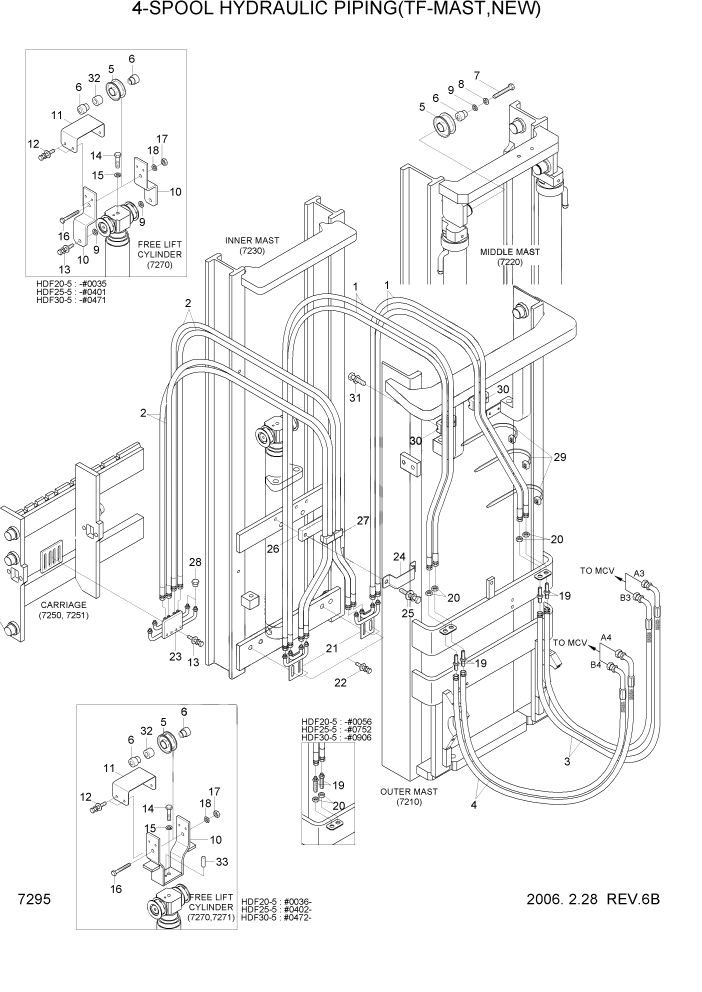

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 7295 4-SPOOL HYDRAULIC PIPING(TF-MAST,NEW) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

@

4-SPOOL HYDRAULIC PIP

NOT #0035

1шт.

*

@

4-SPOOL HYDRAULIC PIP

NOT #0371

1шт.

*

@

4-SPOOL HYDRAULIC PIP

NOT #0436

1шт.

1

P910-064042

HOSE ASSY-ORFS 0X0

TF370,HDF20-5 #0035

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,HDF20-5 #0036

4шт.

1

P910-064042

HOSE ASSY-ORFS 0X0

TF370,HDF25-5 #0401

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,HDF25-5 #0402

4шт.

1

P910-064042

HOSE ASSY-ORFS 0X0

TF370,HDF30-5 #0471

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,HDF30-5 #0472

4шт.

1

P910-064046

HOSE ASSY-ORFS 0X0

TF400,HDF20-5 #0035

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,HDF20-5 #0036

4шт.

1

P910-064046

HOSE ASSY-ORFS 0X0

TF400,HDF25-5 #0401

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,HDF25-5 #0402

4шт.

1

P910-064046

HOSE ASSY-ORFS 0X0

TF400,HDF30-5 #0471

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,HDF30-5 #0472

4шт.

1

P910-064050

HOSE ASSY-ORFS 0X0

TF430,HDF20-5 #0035

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,HDF20-5 #0036

4шт.

1

P910-064050

HOSE ASSY-ORFS 0X0

TF430,HDF25-5 #0401

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,HDF25-5 #0402

4шт.

1

P910-064050

HOSE ASSY-ORFS 0X0

TF430,HDF30-5 #0471

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,HDF30-5 #0472

4шт.

1

P910-064054

HOSE ASSY-ORFS 0X0

TF450,HDF20-5 #0035

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,HDF20-5 #0036

4шт.

1

P910-064054

HOSE ASSY-ORFS 0X0

TF450,HDF25-5 #0401

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,HDF25-5 #0402

4шт.

1

P910-064054

HOSE ASSY-ORFS 0X0

TF450,HDF30-5 #0471

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,HDF30-5 #0472

4шт.

1

P910-064056

HOSE ASSY-ORFS 0X0

TF470,HDF20-5 #0035

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,HDF20-5 #0036

4шт.

1

P910-064056

HOSE ASSY-ORFS 0X0

TF470,HDF25-5 #0401

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,HDF25-5 #0402

4шт.

1

P910-064056

HOSE ASSY-ORFS 0X0

TF470,HDF30-5 #0471

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,HDF30-5 #0472

4шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

TF500,HDF20-5 #0035

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,HDF20-5 #0036

4шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

TF500,HDF25-5 #0401

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,HDF25-5 #0402

4шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

TF500,HDF30-5 #0471

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,HDF30-5 #0472

4шт.

1

P910-064068

HOSE ASSY-ORFS 0X0

TF550,HDF20-5 #0035

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,HDF20-5 #0036

4шт.

1

P910-064068

HOSE ASSY-ORFS 0X0

TF550,HDF25-5 #0401

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,HDF25-5 #0402

4шт.

1

P910-064068

HOSE ASSY-ORFS 0X0

TF550,HDF30-5 #0471

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,HDF30-5 #0472

4шт.

1

P910-064076

HOSE ASSY-ORFS 0X0

TF600,HDF20-5 #0035

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,HDF20-5 #0036

4шт.

1

P910-064076

HOSE ASSY-ORFS 0X0

TF600,HDF25-5 #0401

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,HDF25-5 #0402

4шт.

1

P910-064076

HOSE ASSY-ORFS 0X0

TF600,HDF30-5 #0471

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,HDF30-5 #0472

4шт.

1

P910-064083

HOSE ASSY-ORFS 0X0

TF650,HDF20-5 #0035

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,HDF20-5 #0036

4шт.

1

P910-064083

HOSE ASSY-ORFS 0X0

TF650,HDF25-5 #0401

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,HDF25-5 #0402

4шт.

1

P910-064083

HOSE ASSY-ORFS 0X0

TF650,HDF30-5 #0471

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,HDF30-5 #0472

4шт.

1

P910-064091

HOSE ASSY-ORFD 0X0

TF700,HDF20-5 #0035

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,HDF20-5 #0036

4шт.

1

P910-064091

HOSE ASSY-ORFD 0X0

TF700,HDF25-5 #0401

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,HDF25-5 #0402

4шт.

1

P910-064091

HOSE ASSY-ORFD 0X0

TF700,HDF30-5 #0471

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,HDF30-5 #0472

4шт.

2

P910-064037

HOSE ASSY-ORFS 0X0

TF370,HDF20-5 #0035

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,HDF20-5 #0036

4шт.

2

P910-064037

HOSE ASSY-ORFS 0X0

TF370,HDF25-5 #0401

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,HDF25-5 #0402

4шт.

2

P910-064037

HOSE ASSY-ORFS 0X0

TF370,HDF30-5 #0471

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,HDF30-5 #0472

4шт.

2

P910-064039

HOSE ASSY-ORFS 0X0

TF400,HDF20-5 #0035

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,HDF20-5 #0036

4шт.

2

P910-064039

HOSE ASSY-ORFS 0X0

TF400,HDF25-5 #0401

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,HDF25-5 #0402

4шт.

2

P910-064039

HOSE ASSY-ORFS 0X0

TF400,HDF30-5 #0471

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,HDF30-5 #0472

4шт.

2

P910-064041

HOSE ASSY-ORFS 0X0

TF430,HDF20-5 #0035

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,HDF20-5 #0036

4шт.

2

P910-064041

HOSE ASSY-ORFS 0X0

TF430,HDF25-5 #0401

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,HDF25-5 #0402

4шт.

2

P910-064041

HOSE ASSY-ORFS 0X0

TF430,HDF30-5 #0471

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,HDF30-5 #0472

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF450,HDF20-5 #0035

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,HDF20-5 #0036

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF450,HDF25-5 #0401

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,HDF25-5 #0402

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF450,HDF30-5 #0471

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,HDF30-5 #0472

4шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

TF470,HDF20-5 #0035

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,HDF20-5 #0036

4шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

TF470,HDF25-5 #0401

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,HDF25-5 #0402

4шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

TF470,HDF30-5 #0471

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,HDF30-5 #0472

4шт.

2

P910-064046

HOSE ASSY-ORFS 0X0

TF500,HDF20-5 #0035

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,HDF20-5 #0036

4шт.

2

P910-064046

HOSE ASSY-ORFS 0X0

TF500,HDF25-5 #0401

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,HDF25-5 #0402

4шт.

2

P910-064046

HOSE ASSY-ORFS 0X0

TF500,HDF30-5 #0471

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,HDF30-5 #0472

4шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

TF550,HDF20-5 #0035

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,HDF20-5 #0036

4шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

TF550,HDF25-5 #0401

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,HDF25-5 #0402

4шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

TF550,HDF30-5 #0471

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,HDF30-5 #0472

4шт.

2

P910-064053

HOSE ASSY-ORFS 0X0

TF600,HDF20-5 #0035

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,HDF20-5 #0036

4шт.

2

P910-064053

HOSE ASSY-ORFS 0X0

TF600,HDF25-5 #0401

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,HDF25-5 #0402

4шт.

2

P910-064053

HOSE ASSY-ORFS 0X0

TF600,HDF30-5 #0471

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,HDF30-5 #0472

4шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

TF650,HDF20-5 #0035

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,HDF20-5 #0036

4шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

TF650,HDF25-5 #0401

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,HDF25-5 #0402

4шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

TF650,HDF30-5 #0471

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,HDF30-5 #0472

4шт.

2

P910-064061

HOSE ASSY-ORFS 0X0

TF700,HDF20-5 #0035

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,HDF20-5 #0036

4шт.

2

P910-064061

HOSE ASSY-ORFS 0X0

TF700,HDF25-5 #0401

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,HDF25-5 #0402

4шт.

2

P910-064061

HOSE ASSY-ORFS 0X0

TF700,HDF30-5 #0471

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,HDF30-5 #0473

4шт.

3

P933-064018

HOSE ASSY-ORFS 0X90

2шт.

4

P933-064023

HOSE ASSY-ORFS 0X90

#0001

2шт.

5

34FG-90201

PULLEY-HOSE

4шт.

6

34FG-90250

PIN-HOSE PULLEY

4шт.

7

S017-100552

BOLT-HEX

2шт.

8

S411-100002

WASHER-SPRING

2шт.

9

232110000

WASHER-PLAIN

HDF20-5 #0035

4шт.

9

232110000

WASHER-PLAIN

HDF20-5 #0036

2шт.

9

232110000

WASHER-PLAIN

HDF25-5 #0401

4шт.

9

232110000

WASHER-PLAIN

HDF25-5 #0402

2шт.

9

232110000

WASHER-PLAIN

HDF30-5 #0471

4шт.

9

232110000

WASHER-PLAIN

HDF30-5 #0472

2шт.

10

34FG-90230

PLATE-4SPOOL

HDF20-5 #0035

2шт.

10

34FG-90500

BRACKET WA

HDF20-5 #0036

1шт.

10

34FG-90230

PLATE-4SPOOL

HDF25-5 #0401

2шт.

10

34FG-90500

BRACKET WA

HDF25-5 #0402

1шт.

10

34FG-90230

PLATE-4SPOOL

HDF30-5 #0471

2шт.

10

34FG-90500

BRACKET WA

HDF30-5 #0472

1шт.

11

34FG-90270

COVER

1шт.

12

S035-081522

BOLT-W/WASHER

4шт.

13

S037-102522

BOLT-W/WASHER

HDF20-5 #0035

6шт.

13

S037-102522

BOLT-W/WASHER

HDF20-5 #0036

4шт.

13

S037-102522

BOLT-W/WASHER

HDF25-5 #0401

6шт.

13

S037-102522

BOLT-W/WASHER

HDF25-5 #0402

4шт.

13

S037-102522

BOLT-W/WASHER

HDF30-5 #0471

6шт.

13

S037-102522

BOLT-W/WASHER

HDF30-5 #0472

4шт.

14

S017-120452

BOLT-HEX

1шт.

15

S411-120002

WASHER-SPRING

1шт.

16

S017-101352

BOLT-HEX

HDF20-5 #0035

1шт.

16

S017-101402

BOLT-HEX

HDF20-5 #0036

1шт.

16

S017-101352

BOLT-HEX

HDF25-5 #0401

1шт.

16

S017-101402

BOLT-HEX

HDF25-5 #0402

1шт.

16

S017-101352

BOLT-HEX

HDF30-5 #0471

1шт.

16

S017-101402

BOLT-HEX

HDF30-5 #0472

1шт.

17

S275-100002

NUT-SELF LOCKING

1шт.

18

S403-102002

WASHER-PLAIN

1шт.

19

31FG-80200

CONNECTOR-LONG

HDF20-5 #0056

4шт.

19

31FG-80210

CONNECTOR

HDF20-5 #0057

4шт.

19

31FG-80200

CONNECTOR-LONG

HDF25-5 #0752

4шт.

19

31FG-80210

CONNECTOR

HDF25-5 #0753

4шт.

19

31FG-80200

CONNECTOR-LONG

HDF30-5 #0906

4шт.

19

31FG-80210

CONNECTOR

HDF30-5 #0907

4шт.

20

31FG-80430

NUT-HEX

4шт.

21

34FG-90210

PIPE WA

2шт.

22

S037-102022

BOLT-W/WASHER

4шт.

23

34FG-90400

BLOCK WA

2шт.

24

34FG-90280

CLAMP-HOSE

HDF20-5 #0035

1шт.

24

34FG-90280

CLAMP-HOSE

HDF25-5 #0401

1шт.

24

34FG-90280

CLAMP-HOSE

HDF30-5 #0471

1шт.

25

S035-083526

BOLT-W/WASHER

HDF20-5 #0035

2шт.

25

S035-083526

BOLT-W/WASHER

HDF25-5 #0401

2шт.

25

S035-083526

BOLT-W/WASHER

HDF30-5 #0471

2шт.

26

34FG-90301

PLATE

HDF20-5 #0035

1шт.

26

34FG-90301

PLATE

HDF25-5 #0401

1шт.

26

34FG-90301

PLATE

HDF30-5 #0471

1шт.

27

31FA-60020

RUBBER

HDF20-5 #0035

2шт.

27

31FA-60020

RUBBER

HDF25-5 #0401

2шт.

27

31FA-60020

RUBBER

HDF30-5 #0471

2шт.

28

X710-100103

CAP-ORFS

4шт.

29

S552-102370

CLAMP-BAND

6шт.

30

34FG-90260

CLAMP-HOSE

HDF20-5 #0035

2шт.

30

34FG-90260

CLAMP-HOSE

HDF20-5 #0036

4шт.

30

34FG-90260

CLAMP-HOSE

HDF25-5 #0401

2шт.

30

34FG-90260

CLAMP-HOSE

HDF25-5 #0402

4шт.

30

34FG-90260

CLAMP-HOSE

HDF30-5 #0471

2шт.

30

34FG-90260

CLAMP-HOSE

HDF30-5 #0472

4шт.

31

S035-063546

BOLT-W/WASHER

HDF20-5 #0035

4шт.

31

S035-063526

BOLT-W/WASHER

HDF20-5 #0036

8шт.

31

S035-063546

BOLT-W/WASHER

HDF25-5 #0401

4шт.

31

S035-063526

BOLT-W/WASHER

HDF25-5 #0402

8шт.

31

S035-063546

BOLT-W/WASHER

HDF30-5 #0471

4шт.

31

S035-063526

BOLT-W/WASHER

HDF30-5 #0472

8шт.

32

34FG-90290

SPACER

1шт.

33

S471-800162

PIN-SPRING

HDF20-5 #0036

1шт.

33

S471-800162

PIN-SPRING

HDF25-5 #0402

1шт.

33

S471-800162

PIN-SPRING

HDF30-5 #0471

1шт.
