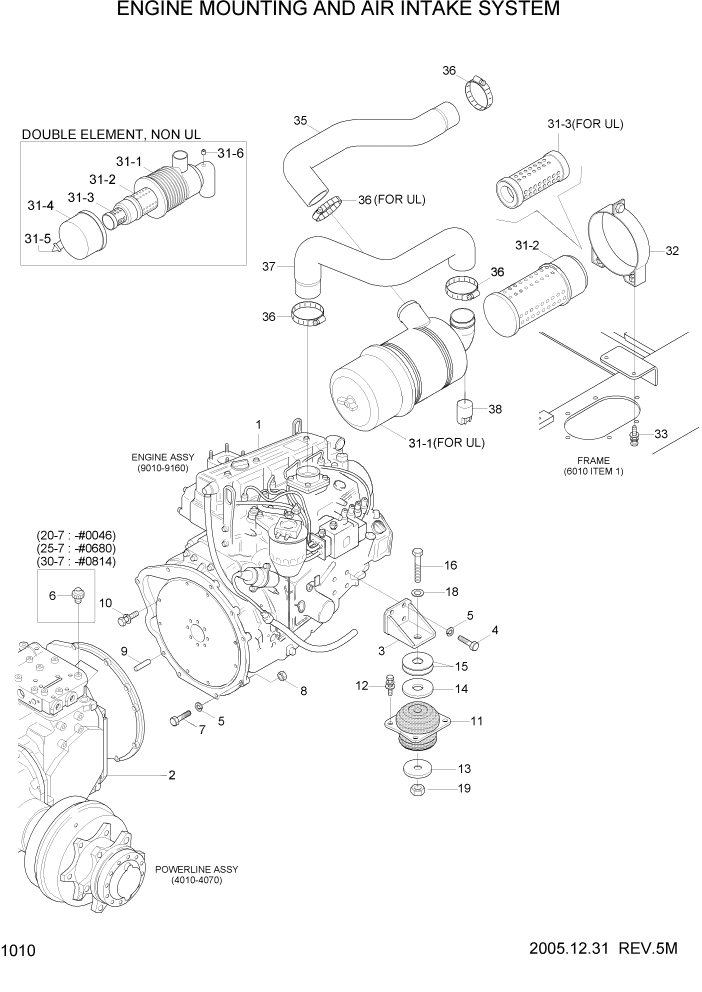

Запчасти Hyundai HDF20/HDF25/HDF30-5 PAGE 1010 ENGINE MOUNTING AND AIR INTAKE SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11FG-60010

ENGINE ASSEMBLY

1шт.

2

81FG-31030

TRANSMISSION ASSY

DRY TYPE

1шт.

2

81FG-30030

POWER LINE ASSY-WET

WET TYPE

1шт.

3

11FG-60021

BRACKET-MOUNT

2шт.

4

S017-100302

BOLT-HEX

8шт.

5

S411-100002

WASHER-SPRING

15шт.

6

81FD-30030

COUPLING-GAUGE

HDF20-5 #0046

1шт.

6

81FD-30030

COUPLING-GAUGE

HDF25-5 #0680

1шт.

6

81FD-30030

COUPLING-GAUGE

HDF30-5 #0814

1шт.

7

S017-100452

BOLT-HEX

7шт.

8

S205-101002

NUT-HEX

7шт.

9

S510-122800

PIN-DOWEL

2шт.

10

S035-081512

BOLT-W/WASHER

8шт.

11

F12200170

RUBBER-MOUNTING

2шт.

12

S035-082522

BOLT-W/WASHER

8шт.

13

FDE0100110

WASHER-OVERLOAD

2шт.

14

FDE0100120

WASHER-REBOUND

2шт.

15

F31330010

SHIM(1.0T)

4шт.

16

S017-161302

BOLT-HEX

2шт.

18

S441-160002

WASHER-HARDENED

2шт.

19

FBC0100300

U-NUT

2шт.

31

11FK-20010

AIR CLEANER ASSY

S/ELEMENT,20-5 #0022

1шт.

31

11M8-20000

AIR CLEANER ASSY

D,NON UL,20-5 #0023

1шт.

31

11FK-20010

AIR CLEANER ASSY

S/ELEMENT,25-5 #0215

1шт.

31

11M8-20000

AIR CLEANER ASSY

D,NON UL,25-5 #0216

1шт.

31

11FK-20010

AIR CLEANER ASSY

S/ELMENT,30-5 #0242

1шт.

31

11M8-20000

AIR CLEANER ASSY

D,NON UL,30-5 #0243

1шт.

31

11FK-20060

AIR CLEANER ASSY

D,FOR UL

1шт.

31-1

11M8-20100

BODY-AIR CLEANER

NON UL,HDF20-5 #0023

1шт.

31-1

11M8-20100

BODY-AIR CLEANER

NON UL,HDF25-5 #0216

1шт.

31-1

11M8-20100

BODY-AIR CLEANER

NON UL,HDF30-5 #0243

1шт.

31-1

11FK-20070

BODY ASSY

FOR UL

1шт.

31-2

11M8-20120

ELEMENT-OUTER

NON UL,HDF20-5 #0023

1шт.

31-2

11M8-20120

ELEMENT-OUTER

NON UL,HDF25-5 #0216

1шт.

31-2

11M8-20120

ELEMENT-OUTER

NON UL,HDF30-5 #0243

1шт.

31-2

11FK-20080

ELEMENT-PRIMARY

FOR UL

1шт.

31-3

11M8-20110

ELEMENT-INNER

NON UL,HDF20-5 #0023

1шт.

31-3

11M8-20110

ELEMENT-INNER

NON UL,HDF25-5 #0216

1шт.

31-3

11M8-20110

ELEMENT-INNER

NON UL,HDF30-5 #0243

1шт.

31-3

11FK-20090

ELEMENT-SAFETY

FOR UL,NO FOR S

1шт.

31-4

11M8-20130

COVER

NON UL,HDF20-5 #0023

1шт.

31-4

11M8-20130

COVER

NON UL,HDF25-5 #0216

1шт.

31-4

11M8-20130

COVER

NON UL,HDF30-5 #0243

1шт.

31-5

11M8-20140

VALVE-VACUATOR

NON UL,HDF20-5 #0023

1шт.

31-5

11M8-20140

VALVE-VACUATOR

NON UL,HDF25-5 #0216

1шт.

31-5

11M8-20140

VALVE-VACUATOR

NON UL,HDF30-5 #0243

1шт.

32

11M8-20051

CLAMP-A/CLEANER

1шт.

33

S035-082022

BOLT-W/WASHER

2шт.

35

11FG-20040

HOSE-A/C

1шт.

36

S520-070000

CLAMP-HOSE

4шт.

37

11FG-20051

HOSE-A/C

1шт.

38

330003050

SENSOR-AIR CLEANER

HDF20-5 #0039

1шт.

38

11FG-20110

SENSOR-AIR CLEANER

HDF20-5 #0040

1шт.

38

330003050

SENSOR-AIR CLEANER

HDF25-5 #0462

1шт.

38

11FG-20110

SENSOR-AIR CLEANER

HDF25-5 #0463

1шт.

38

330003050

SENSOR-AIR CLEANER

HDF30-5 #0353

1шт.

38

11FG-20110

SENSOR-AIR CLEANER

HDF30-5 #0354

1шт.
