Запчасти Hyundai HDF15/HDF18-5 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

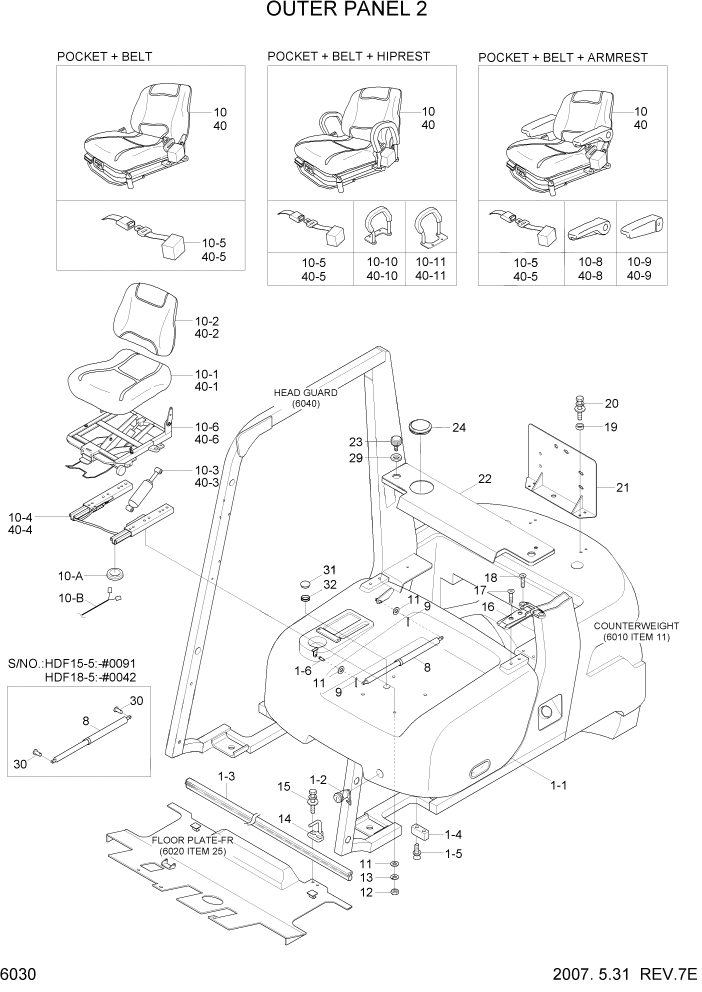

Схема запчастей Hyundai HDF15/HDF18-5 - PAGE 6030 OUTER PANEL 2 СТРУКТУРА

Артикул

Название

Примечание

Количество

1

71FJ-10012

BONNET ASSY

1шт.

1-1

71FJ-10102

BONNET

1шт.

1-2

FHC0705200

LATCH ASSY

1шт.

1-3

S771-049000

WEATHER STRIP

1шт.

1-4

F12100190

CUSHION

2шт.

1-5

S132-061656

SCREW-W/WASHER

4шт.

1-6

S491-080252

PIN-CLEVIS

HDF15-5 #0092

1шт.

1-6

S491-080252

PIN-CLEVIS

HDF18-5 #0043

1шт.

8

71FG-10070

GAS SPRING

HDF15-5 #0091

1шт.

8

71FE-10071

GAS SPRING

HDF15-5 #0092

1шт.

8

71FG-10070

GAS SPRING

HDF18-5 #0042

1шт.

8

71FE-10071

GAS SPRING

HDF18-5 #0043

1шт.

9

S461-200156

PIN-SPLIT

2шт.

10

71FG-10520

SEAT ASSY(PKT)

HDF15-5 #0385

1шт.

10

71FG-10521

SEAT ASSY(PKT)

HDF15-5 #0386

1шт.

10

71FG-10520

SEAT ASSY(PKT)

HDF18-5 #0409

1шт.

10

71FG-10521

SEAT ASSY(PKT)

HDF18-5 #0410

1шт.

10

71FG-10530

SEAT ASSY(PKT+BT)

HDF15-5 #0385

1шт.

10

71FG-10531

SEAT ASSY(PKT+BT)

HDF15-5 #0386

1шт.

10

71FG-10530

SEAT ASSY(PKT+BT)

HDF18-5 #0409

1шт.

10

71FG-10531

SEAT ASSY(PKT+BT)

HDF18-5 #0410

1шт.

10

71FG-10540

SEAT ASSY(PKT+BT+AR)

HDF15-5 #0385

1шт.

10

71FG-10541

SEAT ASSY(PKT+BT+AR)

HDF15-5 #0386

1шт.

10

71FG-10540

SEAT ASSY(PKT+BT+AR)

HDF18-5 #0409

1шт.

10

71FG-10541

SEAT ASSY(PKT+BT+AR)

HDF18-5 #0410

1шт.

10

71FG-10550

SEAT ASSY(PKT+BT+HR)

HDF15-5 #0385

1шт.

10

71FG-10551

SEAT ASSY(PKT+BT+HR)

HDF15-5 #0386

1шт.

10

71FG-10550

SEAT ASSY(PKT+BT+HR)

HDF18-5 #0409

1шт.

10

71FG-10551

SEAT ASSY(PKT+BT+HR)

HDF18-5 #0410

1шт.

10-A

310006540

SWITCH-SEAT

OPSS #0001

1шт.

10-B

B51800050

HARNESS-SEAT

OPSS #0001

1шт.

10-1

H31013-100

CUSION ASSY

HDF15-5 #0001 - #0385

1шт.

10-1

H31013-100C

CUSION ASSY

HDF15-5 #0386

1шт.

10-1

H31013-100

CUSION ASSY

HDF18-5 #0001 - #0409

1шт.

10-1

H31013-100C

CUSION ASSY

HDF18-5 #0410

1шт.

10-2

H31013-200

BACK ASSY

HDF15-5 #0001 - #0385

1шт.

10-2

H31013-200B

BACK ASSY

HDF15-5 #0386

1шт.

10-2

H31013-200

BACK ASSY

HDF18-5 #0001 - #0409

1шт.

10-2

H31013-200B

BACK ASSY

HDF18-5 #0410

1шт.

10-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

10-4

H31013-600

SLIDE TRACK ASSY

HDF15-5 #0001 - #0385

1шт.

10-4

H31013-600B

SLIDE TRACK ASSY

HDF15-5 #0386

1шт.

10-4

H31013-600

SLIDE TRACK ASSY

HDF18-5 #0001 - #0409

1шт.

10-4

H31013-600B

SLIDE TRACK ASSY

HDF18-5 #0410

1шт.

10-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

10-6

H31023-300

SUSPENSION ASSY

HDF15-5 #0001 - #0385

1шт.

10-6

H31023-300G

SUSPENSION

HDF15-5 #0386

1шт.

10-6

H31023-300

SUSPENSION ASSY

HDF18-5 #0001 - #0409

1шт.

10-6

H31023-300G

SUSPENSION

HDF18-5 #0410

1шт.

10-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

10-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

10-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

10-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.

11

S403-082006

WASHER-PLAIN

6шт.

12

S205-081006

NUT-HEX

4шт.

13

S411-080006

WASHER-SPRING

4шт.

14

F12920031

BRACKET-LATCH

HDF15-5 #0029

1шт.

14

71FE-10220

BRACKET-LATCH

HDF15-5 #0030

1шт.

14

F12920031

BRACKET-LATCH

HDF18-5 #0012

1шт.

14

71FE-10220

BRACKET-LATCH

HDF18-5 #0013

1шт.

15

S035-062026

BOLT-W/WASHER

2шт.

16

ED13020001

HINGE

2шт.

17

S141-060302

SCREW-FLAT HD

6шт.

18

S141-060452

SCREW-FLAT HD

2шт.

19

71FD-10130

SPACER

KOREAN

2шт.

20

S035-081526

BOLT-W/WASHER

KOREAN

2шт.

21

Q101207000H-03

BRACKET-NUMBER PLATE

KOREAN

1шт.

22

71FJ-10043

SUB BONNET ASSY

HDF15-5 #0180

1шт.

22

71FJ-10044

SUB BONNET ASSY

HDF15-5 #0181

1шт.

22

71FJ-10043

SUB BONNET ASSY

HDF18-5 #0136

1шт.

22

71FJ-10044

SUB BONNET ASSY

HDF18-5 #0137

1шт.

23

FAC0700820-01

KNOB

1шт.

24

Q101888000

COVER-RUBBER

1шт.

29

71FE-10170

WASHER-RUBBER

HDF15-5 #0030

2шт.

29

71FE-10170

WASHER-RUBBER

HDF15-5 #0013

2шт.

30

S491-120352

PIN-CLEVIS

HDF18-5 #0030 - #0091

2шт.

30

S491-120352

PIN-CLEVIS

HDF18-5 #0013 - #0042

2шт.

31

FHC0904100

RUBBER-STAY

OPSS #0228

1шт.

32

S681-230800

GROMMET

OPSS #0228

1шт.

40

71FH-10510

SEAT ASSY(PKT)

OPSS,HDF15-5 #0228 - #0385

1шт.

40

71FH-10511

SEAT ASSY(PKT)

OPSS,HDF15-5 #0386

1шт.

40

71FH-10510

SEAT ASSY(PKT)

OPSS,HDF18-5 #0228 - #0409

1шт.

40

71FH-10511

SEAT ASSY(PKT)

OPSS,HDF18-5 #0410

1шт.

40

71FH-10520

SEAT ASSY(PKT+BT)

OPSS,HDF15-5 #0228 - #0385

1шт.

40

71FH-10521

SEAT ASSY(PKT+BT)

OPSS,HDF15-5 #0386

1шт.

40

71FH-10520

SEAT ASSY(PKT+BT)

OPSS,HDF18-5 #0228 - #0409

1шт.

40

71FH-10521

SEAT ASSY(PKT+BT)

OPSS,HDF18-5 #0410

1шт.

40

71FH-10530

SEAT ASSY(PKT+BT+HR)

OPSS,HDF15-5 #0228 - #0385

1шт.

40

71FH-10531

SEAT ASSY(PKT+BT+HR)

OPSS,HDF15-5 #0386

1шт.

40

71FH-10530

SEAT ASSY(PKT+BT+HR)

OPSS,HDF18-5 #0228 - #0409

1шт.

40

71FH-10531

SEAT ASSY(PKT+BT+HR)

OPSS,HDF18-5 #0410

1шт.

40

71FH-10540

SEAT ASSY(PKT+BT+AR)

OPSS,HDF15-5 #0228 - #0385

1шт.

40

71FH-10541

SEAT ASSY(PKT+BT+AR)

OPSS,HDF15-5 #0386

1шт.

40

71FH-10540

SEAT ASSY(PKT+BT+AR)

OPSS,HDF18-5 #0228 - #0409

1шт.

40

71FH-10541

SEAT ASSY(PKT+BT+AR)

OPSS,HDF18-5 #0410

1шт.

40-1

H31013-100

CUSION ASSY

HDF15-5 #0228 - #0385

1шт.

40-1

H31013-100C

CUSION ASSY

HDF15-5 #0386

1шт.

40-1

H31013-100

CUSION ASSY

HDF18-5 #0228 - #0409

1шт.

40-1

H31013-100C

CUSION ASSY

HDF18-5 #0410

1шт.

40-2

H31013-200

BACK ASSY

HDF15-5 #0228 - #0385

1шт.

40-2

H31013-200B

BACK ASSY

HDF15-5 #0386

1шт.

40-2

H31013-200

BACK ASSY

HDF18-5 #0228 - #0409

1шт.

40-2

H31013-200B

BACK ASSY

HDF18-5 #0410

1шт.

40-3

H31013-360

SHOCK ABSORBER ASSY

#0228

1шт.

40-4

H31013-600

SLIDE TRACK ASSY

HDF15-5 #0228 - #0385

1шт.

40-4

H31013-600B

SLIDE TRACK ASSY

HDF15-5 #0386

1шт.

40-4

H31013-600

SLIDE TRACK ASSY

HDF18-5 #0228 - #0409

1шт.

40-4

H31013-600B

SLIDE TRACK ASSY

HDF18-5 #0410

1шт.

40-5

89890-8A610

BELT-SEAT

WITH BELT #0228

1шт.

40-7

H31023-301

SUSPENSION

HDF15-5 #0228 - #0385

1шт.

40-7

H31023-301G

SUSPENSION

HDF15-5 #0386

1шт.

40-7

H31023-301

SUSPENSION

HDF18-5 #0228 - #0409

1шт.

40-7

H31023-301G

SUSPENSION

HDF18-5 #0410

1шт.

40-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0228

1шт.

40-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0228

1шт.

40-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0228

1шт.

40-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0228

1шт.

Выбрано товаров: 117
