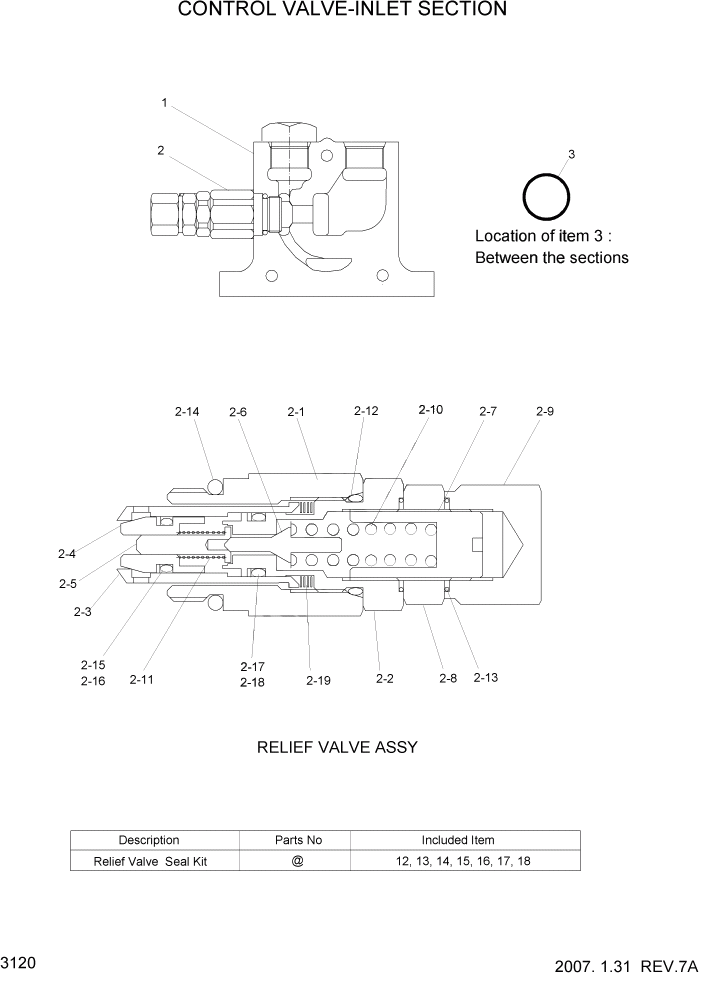

Запчасти Hyundai HDF15/HDF18-5 PAGE 3120 CONTROL VALVE-INLET SECTION ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

INLET SECTION-VALVE

NOT

1шт.

1

XKBF-00254

INLET HOUSING

HDF15-5 #0062

1шт.

1

XKBF-00435

INLET HOUSING

HDF15-5 #0063

1шт.

1

XKBF-00254

INLET HOUSING

HDF18-5 #0029

1шт.

1

XKBF-00435

INLET HOUSING

HDF18-5 #0030

1шт.

2

XKBF-00436

RELIEF VALVE ASSY

MAIN,HDF15-5 #0062

1шт.

2

XKBF-00437

RELIEF VALVE ASSY

MAIN,HDF15-5 #0063 - #0355

1шт.

2

XKBF-00864

RELIEF VALVE ASSY

MAIN,15,SEE3121 #0356

1шт.

2

XKBF-00436

RELIEF VALVE ASSY

MAIN,HDF18-5 #0029

1шт.

2

XKBF-00437

RELIEF VALVE ASSY

MAIN,HDF18-5 #0030 - #0375

1шт.

2

XKBF-00864

RELIEF VALVE ASSY

MAIN,18,SEE3121 #0376

1шт.

2-1

XKBF-00255

HOUSING

1шт.

2-2

XKBF-00256

BODY

1шт.

2-3

XKBF-00257

SOCKET

1шт.

2-4

XKBF-00258

MAIN POPPET

1шт.

2-5

XKBF-00259

PLUNGER

HDF15-5 #0062

1шт.

2-5

XKBF-00315

PLUNGER

HDF15-5 #0063

1шт.

2-5

XKBF-00259

PLUNGER

HDF18-5 #0029

1шт.

2-5

XKBF-00315

PLUNGER

HDF18-5 #0030

1шт.

2-6

XKBF-00260

PILOT POPPET

1шт.

2-7

XKBF-00261

ADJUST SCREW

1шт.

2-8

XKBF-00262

NUT

1шт.

2-9

XKBF-00263

CAP NUT

1шт.

2-1

XKBF-00264

PILOT SPRING

1шт.

2-11

XKBF-00265

MAIN SPRING

1шт.

K2-12

XKBF-00266

O-RING

1шт.

K2-13

XKBF-00267

O-RING SEAL

2шт.

K2-14

XKBF-00268

O-RING SEAL

1шт.

K2-15

XKBF-00269

O-RING

1шт.

K2-16

XKBF-00270

BACK UP RING

1шт.

K2-17

XKBF-00271

O-RING SEAL

1шт.

K2-18

XKBF-00272

BACK UP RING

1шт.

2-19

XKBF-00273

WAVE WASHER

1шт.

3

XKBF-00139

O-RING

1шт.

K

@

SEAL KIT

NOT #0001

1шт.
