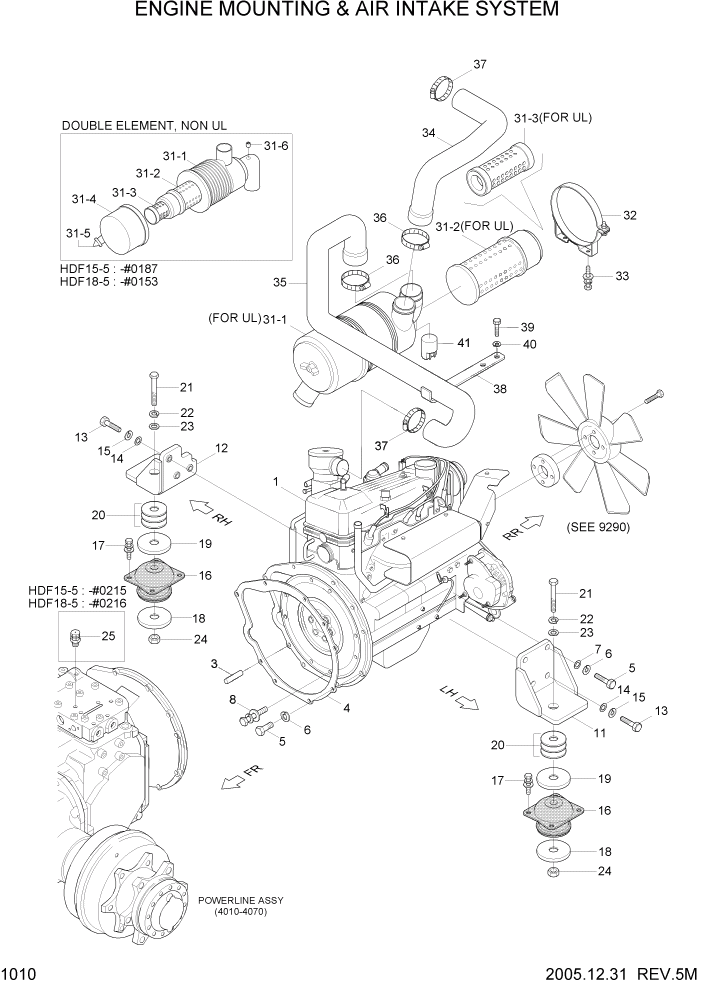

Запчасти Hyundai HDF15/HDF18-5 PAGE 1010 ENGINE MOUNTING & AIR INTAKE SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11FJ-00012

ENGINE ASSY

V2203-M

1шт.

3

S510-122800

PIN-DOWEL

2шт.

4

81FJ-30010

SPACER

1шт.

5

S018-100406

BOLT-HEX

8шт.

6

S411-100006

WASHER-SPRING

8шт.

7

S403-101006

WASHER-PLAIN

1шт.

8

S035-082026

BOLT-W/WASHER

8шт.

11

81FJ-30021

BKT-ENG MTG, LH

1шт.

12

81FJ-30031

BKT-ENG MTG, RH

1шт.

13

S018-120406

BOLT-HEX

6шт.

14

S403-121006

WASHER-PLAIN

6шт.

15

S411-120006

WASHER-SPRING

6шт.

16

F12200170

RUBBER-MOUNTING

2шт.

17

S035-082526

BOLT-W/WASHER

8шт.

18

FDE0100110

WASHER-OVERLOAD

2шт.

19

FDE0100120

WASHER-REBOUND

2шт.

20

F31330010

SHIM(1.0T)

4шт.

21

S017-161206

BOLT-HEX

2шт.

22

S411-160006

WASHER-SPRING

2шт.

23

S403-161006

WASHER-PLAIN

2шт.

24

FBC0100300

U-NUT

2шт.

25

81FD-30030

COUPLING-GAUGE

HDF15-5 #0215

1шт.

25

81FD-30030

COUPLING-GAUGE

HDF18-5 #0216

1шт.

31

11FK-20010

AIR CLEANER ASSY

S/ELEMENT,15-5 #0029

1шт.

31

11M8-20000

AIR CLEANER ASSY

D,NON UL,15-5 #0030

1шт.

31

11FK-20010

AIR CLEANER ASSY

S/ELEMENT,18-5 #0012

1шт.

31

11M8-20000

AIR CLEANER ASSY

D,NON UL,18-5 #0013

1шт.

31

11FK-20060

AIR CLEANER ASSY

D,FOR UL

1шт.

31-1

11M8-20100

BODY-AIR CLEANER

NON UL,HDF15-5 #0030

1шт.

31-1

11M8-20100

BODY-AIR CLEANER

NON UL,HDF18-5 #0013

1шт.

31-1

11FK-20070

BODY ASSY

D,FOR UL

1шт.

31-2

11M8-20120

ELEMENT-OUTER

NON UL,HDF15-5 #0030 - #0187

1шт.

31-2

11M8-20120

ELEMENT-OUTER

NON UL,HDF18-5 #0013 - #0153

1шт.

31-2

11FK-20080

ELEMENT-PRIMARY

D,FOR UL

1шт.

31-3

11M8-20110

ELEMENT-INNER

NON UL,HDF15-5 #0030 - #0187

1шт.

31-3

11M8-20110

ELEMENT-INNER

NON UL,HDF18-5 #0013 - #0153

1шт.

31-3

11FK-20090

ELEMENT-SAFETY

D,FOR UL

1шт.

31-4

11M8-20130

COVER

NON UL,HDF15-5 #0030

1шт.

31-4

11M8-20130

COVER

NON UL,HDF18-5 #0013

1шт.

31-5

11M8-20140

VALVE-VACUATOR

NON UL,HDF15-5 #0030

1шт.

31-5

11M8-20140

VALVE-VACUATOR

NON UL,HDF18-5 #0013

1шт.

31-6

11M8-20150

CAP-NIPPLE

NON UL,HDF15-5 #0030

1шт.

31-6

11M8-20150

CAP-NIPPLE

NON UL,HDF18-5 #0013

1шт.

32

11M8-20051

CLAMP-A/CLEANER

1шт.

33

S035-082526

BOLT-W/WASHER

2шт.

34

11FJ-20031

HOSE-A/C

1шт.

35

11FJ-20042

HOSE-A/C

1шт.

36

S520-060000

CLAMP-HOSE

2шт.

37

S520-065000

CLAMP-HOSE

2шт.

38

11FJ-20050

CLAMP-HOSE

1шт.

39

S018-100206

BOLT-HEX

2шт.

40

S411-100006

WASHER-SPRING

2шт.

41

330003050

SENSOR-AIR CLEANER

HDF15-5 #0161

1шт.

41

11FG-20110

SENSOR-AIR CLEANER

HDF15-5 #0162

1шт.

41

330003050

SENSOR-AIR CLEANER

HDF18-5 #0118

1шт.

41

11FG-20110

SENSOR-AIR CLEANER

HDF18-5 #0119

1шт.
