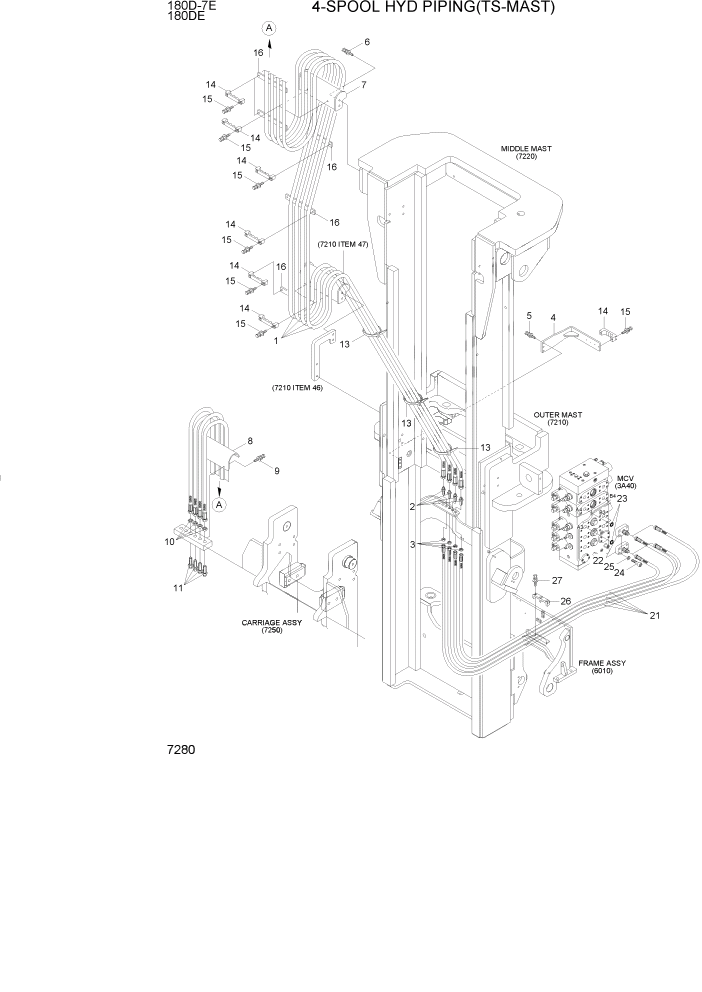

Запчасти Hyundai 180DE PAGE 7280 4-SPOOL HYD PIPING(TS-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-067127

HOSE ASSY-ORFS,THD(0X0)

TS450

4шт.

1

P910-067134

HOSE ASSY-ORFS,THD(0X0)

TS500

4шт.

1

P910-067137

HOSE ASSY-ORFS,THD(0X0)

TS550

4шт.

1

P910-067141

HOSE ASSY-ORFS,THD(0X0)

TS600

4шт.

1

P910-067144

HOSE ASSY-ORFS,THD(0X0)

TS650

4шт.

1

P910-067147

HOSE ASSY-ORFS,THD(0X0)

TS700

4шт.

2

31FT-80210

CONNECTOR

4шт.

3

31FT-80220

NUT-HEX

4шт.

4

33HS-90500

BRACKET WA-CLAMP

1шт.

5

S037-102526

BOLT-W/WASHER

3шт.

6

S037-123026

BOLT-W/WASHER

2шт.

7

33FT-90501

GUARD WA-HOSE

1шт.

8

33FT-90010

GUARD-HOSE

1шт.

9

S037-102026

BOLT-W/WASHER

2шт.

10

31FG-80430

NUT-HEX

4шт.

11

31FG-80200

CONNECTOR-LONG

4шт.

13

S552-102370

CLAMP-BAND

2шт.

14

34FG-90460

CLAMP-HOSE

8шт.

15

S035-063526

BOLT-W/WASHER

16шт.

16

33FT-90061

BRACKET-CLAMP

5шт.

17

S552-102370

CLAMP-BAND

TS600~TS700

1шт.

21

P600-087042

HOSE ASSY-HYD,THD(0X0)

ATTACH P/P

4шт.

22

30HS-92120

FLANGE WA

ATTACH P/P

4шт.

23

Y171-024004

O-RING

ATTACH P/P

4шт.

24

S109-120456

BOLT-SOCKET

ATTACH P/P

16шт.

25

S411-120006

WASHER-SPRING

ATTACH P/P

16шт.

26

30HS-92110

CLAMP-HOSE

ATTACH P/P

1шт.

27

S035-063526

BOLT-W/WASHER

ATTACH P/P

3шт.
