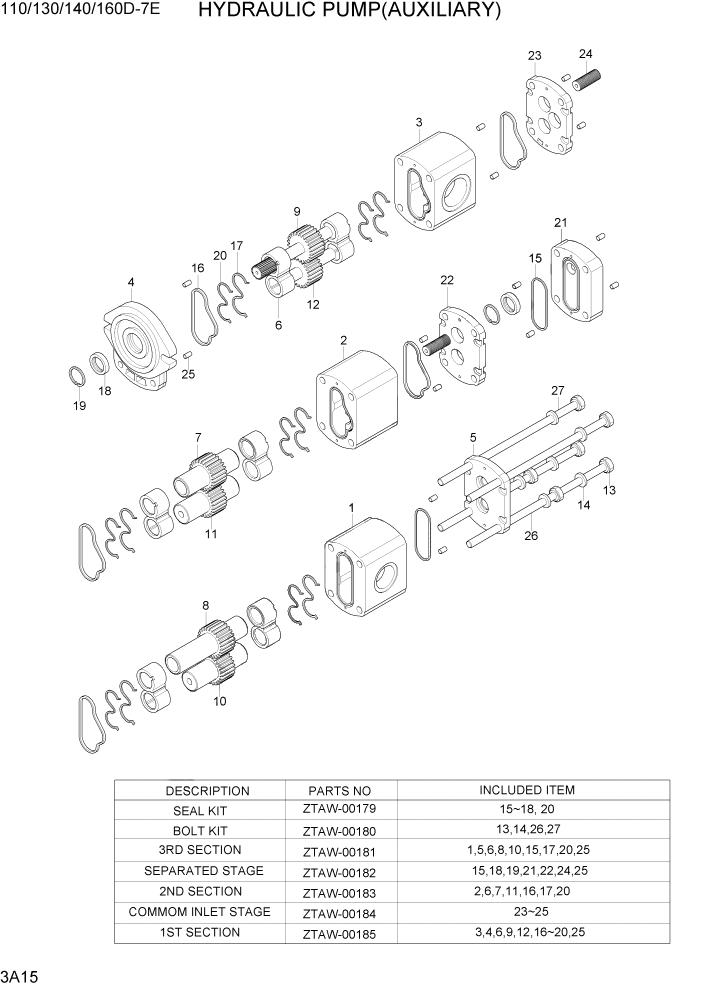

Запчасти Hyundai 110/130/140/160D-7E PAGE 3A15 HYDRAULIC PUMP(AUXILIARY) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31FT-01300

HYD PUMP-TRIPLE

BRAKE PUMP

1шт.

1

@

BODY

NOT

1шт.

2

@

BODY

NOT

1шт.

3

@

BODY

NOT

1шт.

4

@

MOUNTING FLANGE

NOT

1шт.

5

@

COVER-REAR

NOT

1шт.

6

@

PLATE-PRESSURE

NOT

6шт.

7

@

GEAR-DRIVE

NOT

1шт.

8

@

GEAR-DRIVE

NOT

1шт.

9

@

GEAR-DRIVE

NOT

1шт.

10

@

GEAR-DRIVEN

NOT

1шт.

11

@

GEAR-DRIVEN

NOT

1шт.

12

@

GEAR-DRIVEN

NOT

1шт.

13

@

NUT

NOT

1шт.

14

@

WASHER

NOT

1шт.

15

@

SQUARE RING

NOT

6шт.

16

@

SQUARE RING

NOT

8шт.

17

@

O-RING

NOT

12шт.

18

@

SEAL-SHAFT

NOT

4шт.

19

@

SNAP RING

NOT

2шт.

20

@

RING-BACK UP

NOT

12шт.

21

@

FLANGE-MIDDLE

NOT

2шт.

22

@

FLANGE-MIDDLE

NOT

2шт.

23

@

FLANGE-MIDDLE

NOT

2шт.

24

@

SHAFT-THROUGH

NOT

2шт.

25

@

GUIDE PIN

NOT

14шт.

26

@

STUD BOLT

NOT

2шт.

27

@

BOLT

NOT

2шт.

*-1

ZTAW-00179

SEAL KIT

SEE ILLUST

1шт.

*-2

ZTAW-00180

BOLT KIT

SEE ILLUST

1шт.

*-3

ZTAW-00181

3RD SECTION

SEE ILLUST

1шт.

*-4

ZTAW-00182

SEPERATED STAGE

SEE ILLUST

1шт.

*-5

ZTAW-00183

2ND SECTION

SEE ILLUST

1шт.

*-6

ZTAW-00184

COMMON INLET STAGE

SEE ILLUST

1шт.

*-7

ZTAW-00185

1ST SECTION

SEE ILLUST

1шт.
