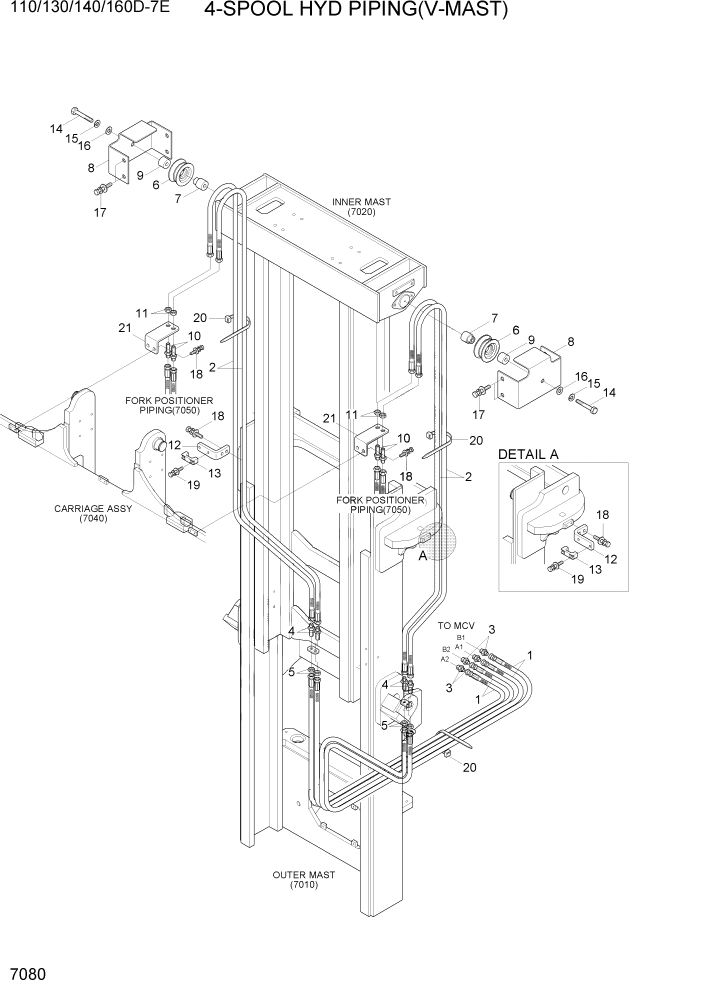

Запчасти Hyundai 110/130/140/160D-7E PAGE 7080 4-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P603-084035

HOSE ASSY-ORFS,THD(0X0)

4шт.

2

P910-064071

HOSE ASSY-ORFS 0X0

V300,110/130

4шт.

2

P910-064077

HOSE ASSY-ORFS 0X0

V330,110/130

4шт.

2

P910-064081

HOSE ASSY-ORFS 0X0

V350,110/130

4шт.

2

P910-064093

HOSE ASSY-ORFS 0X0

V400,110/130

4шт.

2

P910-064103

HOSE ASSY-ORFS 0X0

V450,110/130

4шт.

2

P910-064114

HOSE ASSY-ORFS 0X0

V500,110/130

4шт.

2

P910-064124

HOSE ASSY-ORFS 0X0

V550,110/130

4шт.

2

P910-064136

HOSE ASSY-ORFS 0X0

V600,110/130

4шт.

2

P910-064146

HOSE ASSY-ORFS 0X0

V650,110/130

4шт.

2

P910-064156

HOSE ASSY-ORFS 0X0

V700,110/130

4шт.

2

P910-064069

HOSE ASSY-ORFS 0X0

V295,140/160

4шт.

2

P910-064079

HOSE ASSY-ORFS 0X0

V300,140/160

4шт.

2

P910-064084

HOSE ASSY-ORFS 0X0

V330,140/160

4шт.

2

P910-064087

HOSE ASSY-ORFS 0X0

V350,140/160

4шт.

2

P910-064097

HOSE ASSY-ORFS 0X0

V400,140/160

4шт.

2

P910-064107

HOSE ASSY-ORFS 0X0

V450,140/160

4шт.

2

P910-064119

HOSE ASSY-ORFS 0X0

V500,140/160

4шт.

2

P910-064129

HOSE ASSY-ORFS 0X0

V550,140/160

4шт.

2

P910-064141

HOSE ASSY-ORFS 0X0

V600,140/160

4шт.

2

P910-064151

HOSE ASSY-ORFS 0X0

V650,140/160

4шт.

2

P910-064161

HOSE ASSY-ORFS 0X0

V700,140/160

4шт.

3

P010-310009

CONNECTOR

4шт.

4

31FT-80210

CONNECTOR

4шт.

5

31FT-80220

NUT-HEX

4шт.

6

31FT-90550

PULLEY-HOSE

2шт.

7

31FV-90141

PIN-H/PULLER

2шт.

8

31FT-90012

PLATE

2шт.

9

31FT-90021

SPACER

2шт.

10

31FG-80210

CONNECTOR

4шт.

11

31FG-80430

NUT-HEX

4шт.

12

31FT-90031

PLATE

2шт.

13

34FG-90260

CLAMP-HOSE

2шт.

14

S017-121206

BOLT-HEX

2шт.

15

S411-120006

WASHER-SPRING

2шт.

16

S403-121006

WASHER-PLAIN

2шт.

17

S037-102026

BOLT-W/WASHER

8шт.

18

S037-103026

BOLT-W/WASHER

8шт.

19

S035-063526

BOLT-W/WASHER

4шт.

20

S552-050203

CLAMP-BAND

16шт.

21

31FT-90050

PLATE

2шт.
