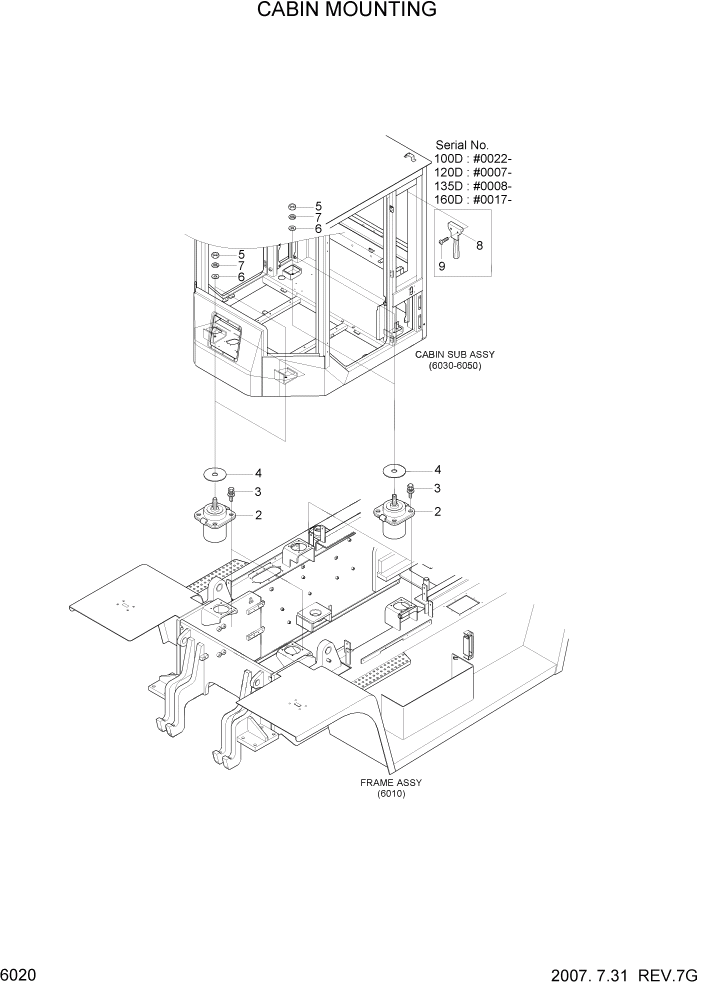

Запчасти Hyundai 100/120/130/160D-7 PAGE 6020 CABIN MOUNTING СТРУКТУРА

*

71FT-50011

CABIN ASSY

100D #0021

1шт.

*

71FT-50012

CABIN ASSY

100D #0022

1шт.

*

71FT-50011

CABIN ASSY

120D #0006

1шт.

*

71FT-50012

CABIN ASSY

120D #0007

1шт.

*

71FT-50011

CABIN ASSY

135D #0007

1шт.

*

71FT-50012

CABIN ASSY

135D #0008

1шт.

*

71FT-50011

CABIN ASSY

160D #0016

1шт.

*

71FT-50012

CABIN ASSY

160D #0017

1шт.

*-1

71FT-01011

CABIN SUB ASSY

SEE 6030,100D #0021

1шт.

*-1

71FT-01012

CABIN SUB ASSY

SEE 6030,100D #0022

1шт.

*-1

71FT-01011

CABIN SUB ASSY

SEE 6030,120D #0006

1шт.

*-1

71FT-01012

CABIN SUB ASSY

SEE 6030,120D #0007

1шт.

*-1

71FT-01011

CABIN SUB ASSY

SEE 6030,135D #0007

1шт.

*-1

71FT-01012

CABIN SUB ASSY

SEE 6030,135D #0008

1шт.

*-1

71FT-01011

CABIN SUB ASSY

SEE 6030,160D #0016

1шт.

*-1

71FT-01012

CABIN SUB ASSY

SEE 6030,160D #0017

1шт.

2

71N6-10300

MOUNT-VISCOUS

4шт.

3

S037-103026

BOLT-W/WASHER

16шт.

4

71E9-10650

WASHER-REBOUND

4шт.

5

S207-161006

NUT-HEX

4шт.

6

S403-162006

WASHER-PLAIN

4шт.

7

S411-160006

WASHER-SPRING

4шт.

8

71E1-60340

HAMMER-SAFETY

100D #0022

1шт.

8

71E1-60340

HAMMER-SAFETY

120D #0007

1шт.

8

71E1-60340

HAMMER-SAFETY

135D #0008

1шт.

8

71E1-60340

HAMMER-SAFETY

160D #0017

1шт.

9

S141-040106

SCREW-FLAT HD

100D #0022

2шт.

9

S141-040106

SCREW-FLAT HD

120D #0007

2шт.

9

S141-040106

SCREW-FLAT HD

135D #0008

2шт.

9

S141-040106

SCREW-FLAT HD

160D #0017

2шт.

*-2

20FT-11010

CABIN ELECTRIC

SEE 2050

1шт.
