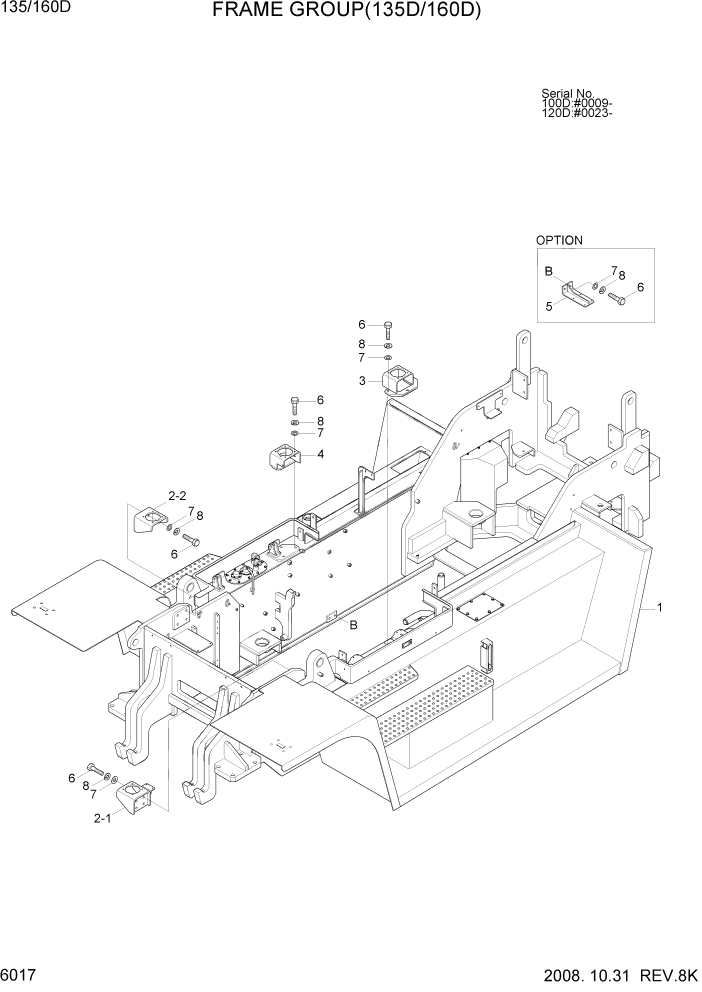

Запчасти Hyundai 100/120/130/160D-7 PAGE 6017 FRAME GROUP(135D/160D) СТРУКТУРА

*

40FT-50200

FRAME GROUP

135D #0009

1шт.

*

40FT-50200

FRAME GROUP

160D #0023

1шт.

1

45FT-00120

FRAME TOTAL SUB ASSY

#0005

1шт.

1

45FT-00121

FRAME TOTAL SUB ASSY

135D #0006

1шт.

1

45FT-00120

FRAME TOTAL SUB ASSY

#0144

1шт.

1

45FT-00121

FRAME TOTAL SUB ASSY

160D #0145

1шт.

2-1

41FT-00351

BRACKET WA-RH

NON TILT

1шт.

2-2

41FT-00490

BRACKET WA-LH

NON TILT

1шт.

3

41FT-00360

BRACKET WA-CABIN MTG

NON TILT

1шт.

4

41FT-00371

BRACKET WA-CABIN MTG

NON TILT

1шт.

5

41FT-00380

BRACKET WA-POWER

TILTING CABIN

1шт.

6

S017-16035D

BOLT-HEX

NON TILT

14шт.

6

S017-16035D

BOLT-HEX

TILTING CABIN

2шт.

7

S403-161006

WASHER-PLAIN

NON TILT

14шт.

7

S403-161006

WASHER-PLAIN

TILTING CABIN

2шт.

8

S411-160006

WASHER-SPRING

NON TILT

14шт.

8

S411-160006

WASHER-SPRING

TILTING CABIN

2шт.
