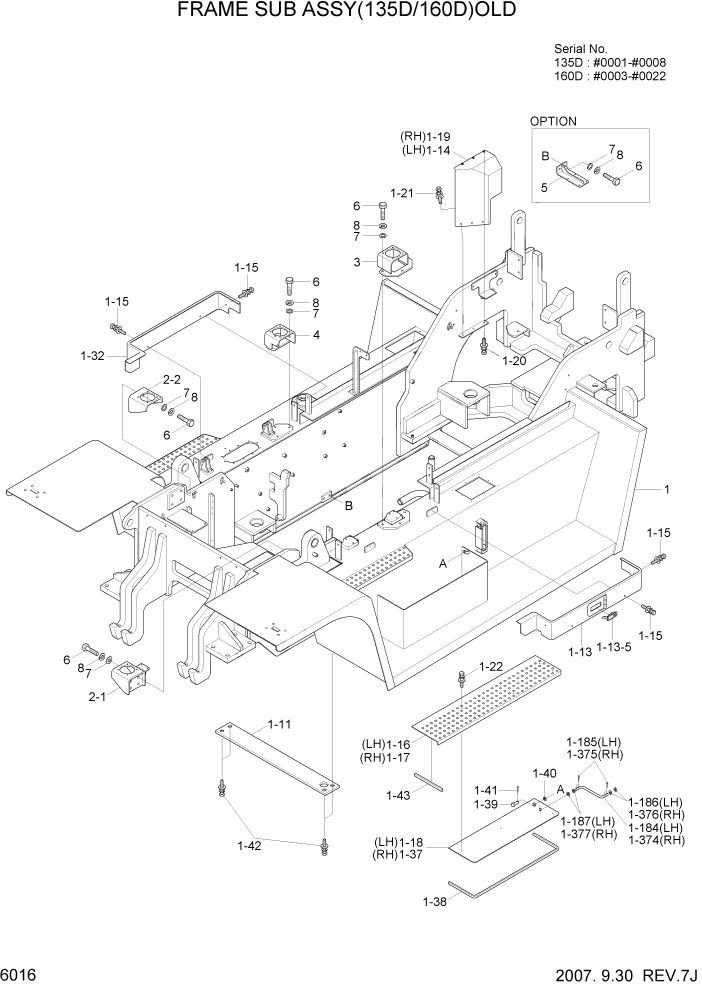

Запчасти Hyundai 100/120/130/160D-7 PAGE 6016 FRAME SUB ASSY(135D/160D)OLD СТРУКТУРА

*

@

FRAME GROUP

NOT #0001 - #0008

1шт.

*

@

FRAME GROUP

NOT #0003 - #0022

1шт.

*

@

FRAME GROUP

NOT

1шт.

1

45FT-00020

FRAME WA

1шт.

1-11

41FT-00091

CROSS MEMBER

1шт.

1-13

41FT-00112

COVER-LH

LH,135D #0006

1шт.

1-13

41FT-00114

COVER-LH

LH,135D #0007

1шт.

1-13

41FT-00112

COVER-LH

LH,160D #0012

1шт.

1-13

41FT-00114

COVER-LH

LH,160D #0013

1шт.

1-14

41FT-00301

COVER-LH

LH

1шт.

1-15

S035-082026

BOLT-W/WASHER

135D #0006

12шт.

1-15

S035-082026

BOLT-W/WASHER

135D #0007

8шт.

1-15

S035-082026

BOLT-W/WASHER

160D #0012

12шт.

1-15

S035-082026

BOLT-W/WASHER

160D #0013

8шт.

1-16

41FT-00132

STEP-LH

LH #0001

1шт.

1-17

41FT-00142

STEP-RH

RH #0001

1шт.

1-18

41FT-00222

COVER WA

LH #0001

1шт.

1-184

@

BAR-ROUND

NOT

1шт.

1-185

S461-160162

PIN-SPLIT

4шт.

1-186

S403-06500B

WASHER-PLAIN

2шт.

1-187

S403-06200B

WASHER-PLAIN

2шт.

1-19

41FT-00311

COVER-RH

RH

1шт.

1-2

S035-101522

BOLT-W/WASHER

6шт.

1-22

S035-081512

BOLT-W/WASHER

12шт.

1-32

41FT-00330

COVER-RH

RH,135D #0006

1шт.

1-32

41FT-00332

COVER-RH

RH,135D #0007

1шт.

1-32

41FT-00330

COVER-RH

RH,160D #0012

1шт.

1-32

41FT-00332

COVER-RH

RH,160D #0013

1шт.

1-37

41FT-00260

COVER WA

RH

1шт.

1-374

@

BAR-ROUND

NOT

1шт.

1-375

S461-160162

PIN-SPLIT

4шт.

1-376

S403-06500B

WASHER-PLAIN

2шт.

1-377

S403-06200B

WASHER-PLAIN

2шт.

1-38

S791-060110

PLATE-GROMMET

2шт.

1-39

S491-080252

PIN-CLEVIS

4шт.

1-4

S403-081002

WASHER-PLAIN

4шт.

1-41

S501-080002

PIN-SELF LOCKING

4шт.

1-42

S037-103016

BOLT-W/WASHER

4шт.

1-43

S791-060015

GROMMET-PLATE

2шт.

2

41FT-00350

BRACKET WA-CABIN MTG

135D,NON TILT #0006

2шт.

2-1

41FT-00351

BRACKET WA-RH

135D,NON TILT #0007

1шт.

2-2

41FT-00490

BRACKET WA-LH

135D,NON TILT #0007

1шт.

2

41FT-00350

BRACKET WA-CABIN MTG

160D,NON TILT #0012

2шт.

2-1

41FT-00351

BRACKET WA-RH

160D,NON TILT #0013

1шт.

2-2

41FT-00490

BRACKET WA-LH

160D,NON TILT #0013

1шт.

3

41FT-00360

BRACKET WA-CABIN MTG

NON TILTING

1шт.

4

41FT-00370

BRACKET WA-CABIN MTG

135D,NON TILT #0006

1шт.

4

41FT-00371

BRACKET WA-CABIN MTG

135D,NON TILT #0007

1шт.

4

41FT-00370

BRACKET WA-CABIN MTG

160D,NON TILT #0012

1шт.

4

41FT-00371

BRACKET WA-CABIN MTG

160D,NON TILT #0013

1шт.

5

41FT-00380

BRACKET WA-POWER

TILTING CABIN

1шт.

6

S017-16035D

BOLT-HEX

NON TILTING

14шт.

6

S017-16035D

BOLT-HEX

TILTING CABIN

2шт.

7

S403-161006

WASHER-PLAIN

NON TILTING

14шт.

7

S403-161006

WASHER-PLAIN

TILTING CABIN #0001

2шт.

8

S411-160006

WASHER-SPRING

NON TILTING

14шт.

8

S411-160006

WASHER-SPRING

TILTING CABIN #0001

2шт.
