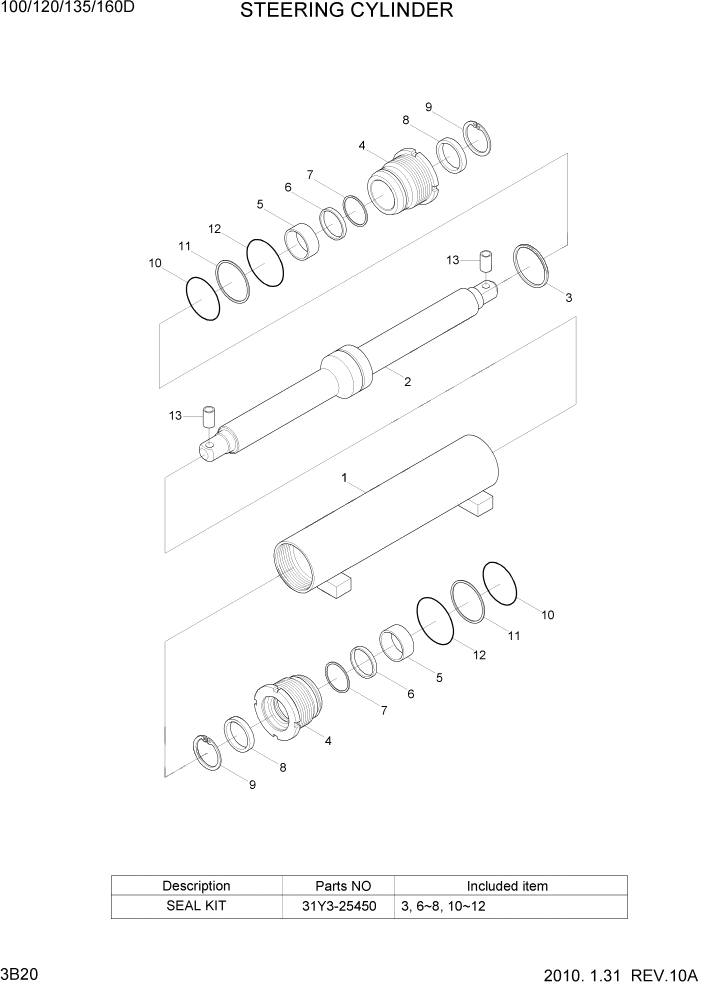

Запчасти Hyundai 100/120/130/160D-7 PAGE 3B20 STEERING CYLINDER ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31FT-59001

STEERING CYLINDER ASSY

100D/120D #0071

1шт.

*

31FT-59002

STEERING CYLINDER

100D #0072

1шт.

*

31FT-59001

STEERING CYLINDER ASSY

100D/120D #0038

1шт.

*

31FT-59002

STEERING CYLINDER

120D #0039

1шт.

*

31FT-59001

STEERING CYLINDER ASSY

100D/120D #0005

1шт.

*

31FT-59002

STEERING CYLINDER

135D #0006

1шт.

*

31FT-59001

STEERING CYLINDER ASSY

100D/120D #0227

1шт.

*

31FT-59002

STEERING CYLINDER

160D #0228

1шт.

*

31FT-09001

STEERING CYLINDER ASSY

135D/160D #0071

1шт.

*

31FT-09002

CYLINDER ASSY

100D #0072

1шт.

*

31FT-09001

STEERING CYLINDER ASSY

135D/160D #0038

1шт.

*

31FT-09002

CYLINDER ASSY

120D #0039

1шт.

*

31FT-09001

STEERING CYLINDER ASSY

135D/160D #0005

1шт.

*

31FT-09002

CYLINDER ASSY

135D #0006

1шт.

*

31FT-09001

STEERING CYLINDER ASSY

135D/160D #0227

1шт.

*

31FT-09002

CYLINDER ASSY

160D #0228

1шт.

1

31Y3-25361

TUBE ASSY

1шт.

2

31Y3-26790

ROD ASSY

100D/120D

1шт.

2

31Y3-25400

ROD ASSY

135D/160D

1шт.

K3

Y420-100000

SEAL-PISTON

1шт.

4

31Y3-25440

GLAND

2шт.

5

S731-065040

BUSHING-DU

2шт.

K6

Y200-065011

SEAL-ROD

2шт.

K7

Y180-065020

RING-BACK UP

2шт.

K8

Y110-065011

WIPER-DUST

2шт.

9

Y190-079000

RING-SNAP

2шт.

K10

S632-095004

O-RING

2шт.

K11

S642-095003

RING-BACK UP

2шт.

K12

S632-100004

O-RING

2шт.

13

31YC-19020

BUSH-PIN

2шт.

K

31Y3-25450

SEAL KIT

SEE ILLUST

1шт.
