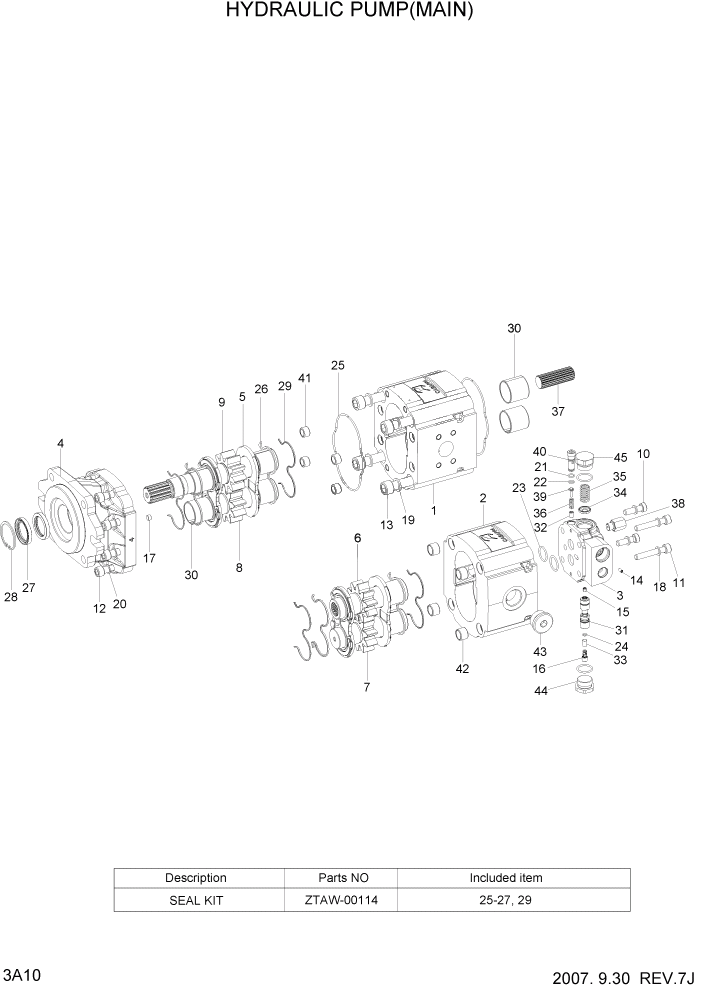

Запчасти Hyundai 100/120/130/160D-7 PAGE 3A10 HYDRAULIC PUMP(MAIN) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31FT-01000

HYD PUMP-TANDEM

1шт.

N1

ZTAW-00090

BODY

NOT

1шт.

N2

ZTAW-00091

BODY

NOT

1шт.

N3

ZTAW-00092

COVER-REAR END

NOT

1шт.

N4

ZTAW-00093

COVER-FRONT

NOT

1шт.

N5

ZTAW-00050

PLATE-THRUST

NOT

4шт.

N6

ZTAW-00051

GEAR-DRIVE

NOT

1шт.

N7

ZTAW-00052

GEAR-DRIVEN

NOT

1шт.

N8

ZTAW-00053

GEAR-DRIVEN

NOT

1шт.

N9

ZTAW-00054

SHAFT-DRIVE

NOT

1шт.

N10

ZTAW-00055

SCREW

NOT

2шт.

N11

ZTAW-00056

SCREW

NOT

2шт.

N12

ZTAW-00057

SCREW

NOT

8шт.

N13

ZTAW-00058

SCREW

NOT

4шт.

N14

ZTAW-00059

SCREW

NOT

1шт.

N15

ZTAW-00060

SCREW-GRUB

NOT

1шт.

N16

ZTAW-00061

SCREW-GRUB

NOT

1шт.

N17

ZTAW-00013

SCREW-GRUB

NOT

1шт.

N18

ZTAW-00014

WASHER

NOT

4шт.

N19

ZTAW-00015

WASHER

NOT

4шт.

N20

ZTAW-00062

WASHER

NOT

8шт.

N21

ZTAW-00063

SEAL

NOT

1шт.

N22

ZTAW-00064

SEAL

NOT

1шт.

N23

ZTAW-00065

SEAL

NOT

4шт.

N24

ZTAW-00066

SEAL

NOT

1шт.

K25

ZTAW-00067

RING-SQUARE

2шт.

K26

ZTAW-00068

SEAL

4шт.

K27

ZTAW-00069

SEAL-SHAFT

2шт.

N28

ZTAW-00070

SEAL-SHAFT

NOT

1шт.

K29

ZTAW-00071

RING-BACK UP

4шт.

N30

ZTAW-00072

BEARING-SLEEVE

NOT

8шт.

N31

ZTAW-00073

SPOOL

NOT

1шт.

N32

ZTAW-00074

SPRING-SPACER

NOT

1шт.

N33

ZTAW-00075

FILTER

NOT

1шт.

N34

ZTAW-00076

SEAT-SPRING

NOT

1шт.

N35

ZTAW-00089

SPRING

NOT

1шт.

N36

ZTAW-00078

SPRING

NOT

1шт.

N37

ZTAW-00079

SHAFT-SPRING

NOT

1шт.

N38

ZTAW-00094

CONNECTION-LS

NOT

1шт.

N39

ZTAW-00080

VALVE-SPEAR

NOT

1шт.

N40

ZTAW-00081

VALVE

NOT

1шт.

N41

ZTAW-00082

BUSHING

NOT

4шт.

N42

ZTAW-00028

BUSHING-STEEL

NOT

4шт.

N43

ZTAW-00083

PLUG-STEEL

NOT

1шт.

N44

ZTAW-00084

PLUG

NOT

1шт.

N45

ZTAW-00085

PLUG-SPRING

NOT

1шт.

K

ZTAW-00114

SEAL KIT

SEE ILLUST

ARшт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
