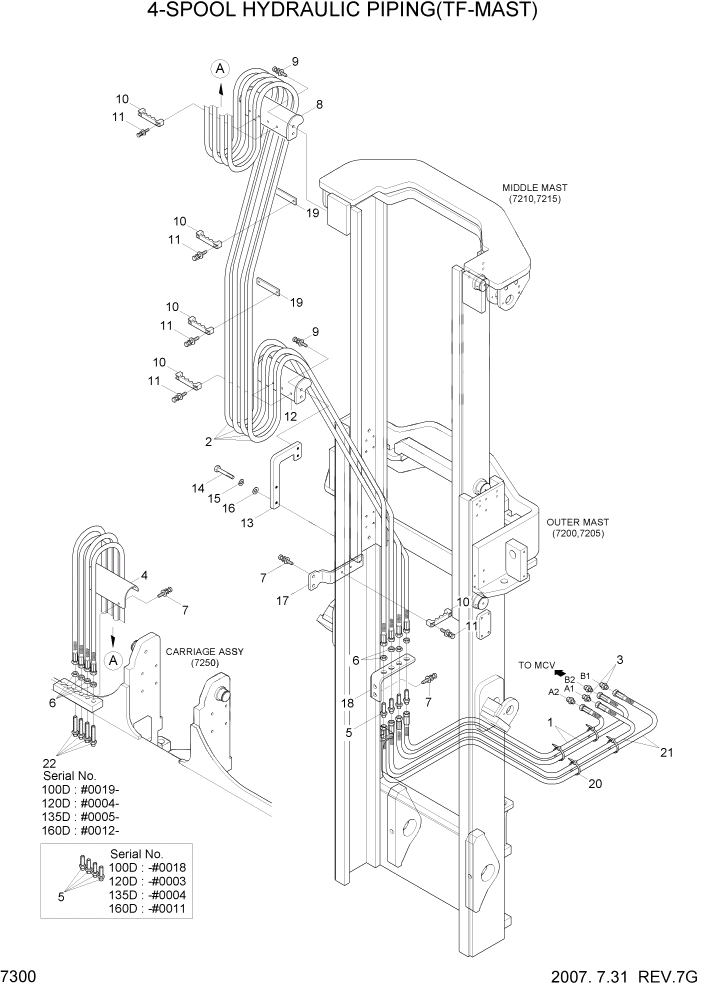

Запчасти Hyundai 100/120/130/160D-7 PAGE 7300 4-SPOOL HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P913-064044

HOSE ASSY-ORFS 0X0

2шт.

2

P910-064120

HOSE ASSY-ORFS 0X0

TF440,100D/120D

2шт.

2

P910-064125

HOSE ASSY-ORFS 0X0

TF470,100D/120D

2шт.

2

P910-064130

HOSE ASSY-ORFS 0X0

TF500,100D/120D

2шт.

2

P910-064139

HOSE ASSY-ORFS 0X0

TF550,100D/120D

2шт.

2

P910-064147

HOSE ASSY-ORFS 0X0

TF600,100D/120D

2шт.

2

P910-064155

HOSE ASSY-ORFS 0X0

TF650,100D/120D

2шт.

2

P910-064164

HOSE ASSY-ORFS 0X0

TF700,100D/120D

2шт.

2

P910-064115

HOSE ASSY-ORFS 0X0

TF395,135D/160D

2шт.

2

P910-064124

HOSE ASSY-ORFS 0X0

TF450,135D/160D

2шт.

2

P910-064132

HOSE ASSY-ORFS 0X0

TF500,135D/160D

2шт.

2

P910-064141

HOSE ASSY-ORFS 0X0

TF550,135D/160D

2шт.

2

P910-064149

HOSE ASSY-ORFS 0X0

TF600,135D/160D

2шт.

2

P910-064157

HOSE ASSY-ORFS 0X0

TF650,135D/160D

2шт.

2

P910-064166

HOSE ASSY-ORFS 0X0

TF700,135D/160D

2шт.

3

31FQ-80130

CONNECTOR

4шт.

4

33FT-90010

GUARD-HOSE

1шт.

5

31FG-80210

CONNECTOR

100D #0018

8шт.

5

31FG-80210

CONNECTOR

100D #0019

4шт.

5

31FG-80210

CONNECTOR

120D #0003

8шт.

5

31FG-80210

CONNECTOR

120D #0004

4шт.

5

31FG-80210

CONNECTOR

135D #0004

8шт.

5

31FG-80210

CONNECTOR

135D #0005

4шт.

5

31FG-80210

CONNECTOR

160D #0011

8шт.

5

31FG-80210

CONNECTOR

160D #0012

4шт.

6

31FG-80430

NUT-HEX

8шт.

7

S037-102026

BOLT-W/WASHER

6шт.

8

33FT-90500

GUARD WA-HOSE

100D #0020

1шт.

8

33FT-90501

GUARD WA-HOSE

100D #0021

1шт.

8

33FT-90500

GUARD WA-HOSE

120D #0003

1шт.

8

33FT-90501

GUARD WA-HOSE

120D #0004

1шт.

8

33FT-90500

GUARD WA-HOSE

135D #0006

1шт.

8

33FT-90501

GUARD WA-HOSE

135D #0007

1шт.

8

33FT-90500

GUARD WA-HOSE

160D #0015

1шт.

8

33FT-90501

GUARD WA-HOSE

160D #0016

1шт.

9

S037-123026

BOLT-W/WASHER

4шт.

10

34FG-90260

CLAMP-HOSE

100D #0020

18шт.

10

34FG-90460

CLAMP-HOSE

100D #0021

9шт.

10

34FG-90260

CLAMP-HOSE

120D #0003

18шт.

10

34FG-90460

CLAMP-HOSE

120D #0004

9шт.

10

34FG-90260

CLAMP-HOSE

135D #0006

18шт.

10

34FG-90460

CLAMP-HOSE

135D #0007

9шт.

10

34FG-90260

CLAMP-HOSE

160D #0015

18шт.

10

34FG-90460

CLAMP-HOSE

160D #0016

9шт.

11

S035-063526

BOLT-W/WASHER

100D #0020

36шт.

11

S035-063526

BOLT-W/WASHER

100D #0021

18шт.

11

S035-063526

BOLT-W/WASHER

120D #0003

36шт.

11

S035-063526

BOLT-W/WASHER

120D #0004

18шт.

11

S035-063526

BOLT-W/WASHER

135D #0006

36шт.

11

S035-063526

BOLT-W/WASHER

135D #0007

18шт.

11

S035-063526

BOLT-W/WASHER

160D #0015

36шт.

11

S035-063526

BOLT-W/WASHER

160D #0016

18шт.

12

33FT-90550

GUARD WA-HOSE

100D #0020

1шт.

12

33FT-90551

GUARD WA-HOSE

100D #0021

1шт.

12

33FT-90550

GUARD WA-HOSE

120D #0003

1шт.

12

33FT-90551

GUARD WA-HOSE

120D #0004

1шт.

12

33FT-90550

GUARD WA-HOSE

135D #0006

1шт.

12

33FT-90551

GUARD WA-HOSE

135D #0007

1шт.

12

33FT-90550

GUARD WA-HOSE

160D #0015

1шт.

12

33FT-90551

GUARD WA-HOSE

160D #0016

1шт.

13

33FT-90020

BRACKET-GUARD

1шт.

14

S017-120506

BOLT-HEX

2шт.

15

S411-120006

WASHER-SPRING

2шт.

16

S403-121006

WASHER-PLAIN

2шт.

17

33FT-90030

BRACKET-CLAMP

100D #0020

1шт.

17

33FT-90031

BRACKET-CLAMP

100D #0021

1шт.

17

33FT-90030

BRACKET-CLAMP

120D #0003

1шт.

17

33FT-90031

BRACKET-CLAMP

120D #0004

1шт.

17

33FT-90030

BRACKET-CLAMP

135D #0006

1шт.

17

33FT-90031

BRACKET-CLAMP

135D #0007

1шт.

17

33FT-90030

BRACKET-CLAMP

160D #0015

1шт.

17

33FT-90031

BRACKET-CLAMP

160D #0016

1шт.

18

33FT-90040

BRACKET-CONNECTOR

1шт.

19

33FT-90060

BRACKET-CLAMP

100D #0020

6шт.

19

33FT-90061

BRACKET-CLAMP

100D #0021

6шт.

19

33FT-90060

BRACKET-CLAMP

120D #0003

6шт.

19

33FT-90061

BRACKET-CLAMP

120D #0004

6шт.

19

33FT-90060

BRACKET-CLAMP

135D #0006

6шт.

19

33FT-90061

BRACKET-CLAMP

135D #0007

6шт.

19

33FT-90060

BRACKET-CLAMP

160D #0015

6шт.

19

33FT-90061

BRACKET-CLAMP

160D #0016

6шт.

20

S552-050203

CLAMP-BAND

4шт.

21

P913-064053

HOSE ASSY-ORFS 0X0

2шт.

22

31FG-80200

CONNECTOR-LONG

100D #0019

4шт.

22

31FG-80200

CONNECTOR-LONG

120D #0004

4шт.

22

31FG-80200

CONNECTOR-LONG

135D #0005

4шт.

22

31FG-80200

CONNECTOR-LONG

160D #0012

4шт.
