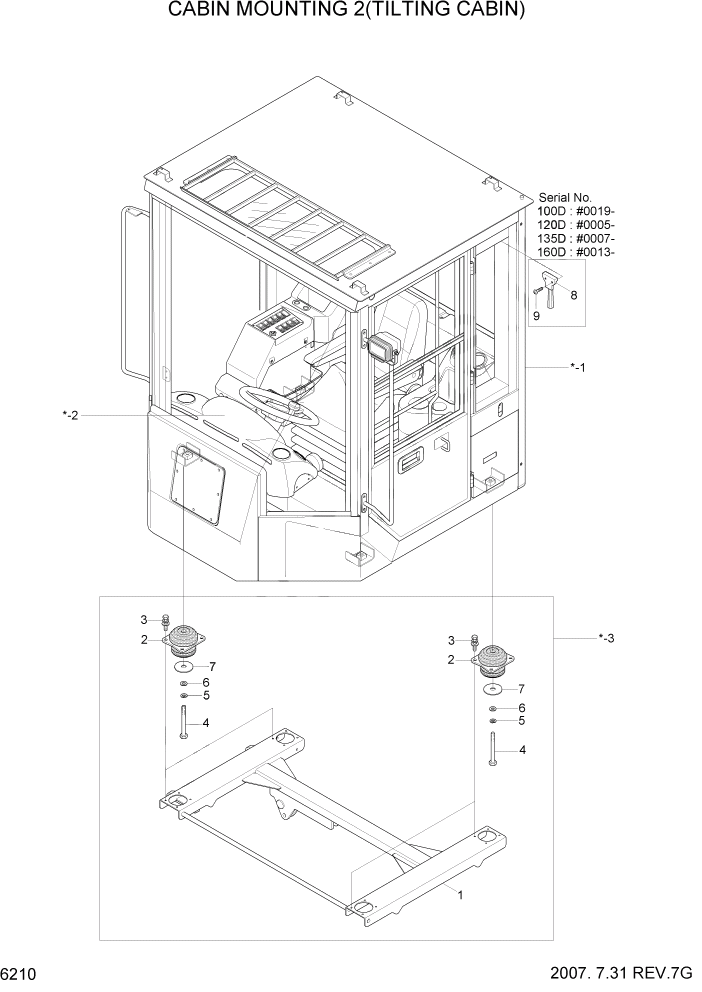

Запчасти Hyundai 100/120/130/160D-7 PAGE 6210 CABIN MOUNTING 2(TILTING CABIN) СТРУКТУРА

*

71FT-70011

CABIN ASSY

SEE 6220,100D #0001 - #0021

1шт.

*

71FT-70012

CABIN ASSY

SEE 6220,100D #0022

1шт.

*

71FT-70011

CABIN ASSY

SEE 6220,120D #0001 - #0004

1шт.

*

71FT-70012

CABIN ASSY

SEE 6220,120D #0005

1шт.

*

71FT-70011

CABIN ASSY

SEE 6220,135D #0001 - #0007

1шт.

*

71FT-70012

CABIN ASSY

SEE 6220,135D #0008

1шт.

*

71FT-70011

CABIN ASSY

SEE 6220,160D #0001 - #0016

1шт.

*

71FT-70012

CABIN ASSY

SEE 6220,160D #0017

1шт.

*-1

71FT-71011

CABIN SUB ASSY

SEE 6220,100D #0001 - #0021

1шт.

*-1

71FT-71012

CABIN SUB ASSY

SEE 6220,100D #0022

1шт.

*-1

71FT-71011

CABIN SUB ASSY

SEE 6220,120D #0001 - #0004

1шт.

*-1

71FT-71012

CABIN SUB ASSY

SEE 6220,120D #0005

1шт.

*-1

71FT-71011

CABIN SUB ASSY

SEE 6220,135D #0001 - #0007

1шт.

*-1

71FT-71012

CABIN SUB ASSY

SEE 6220,135D #0008

1шт.

*-1

71FT-71011

CABIN SUB ASSY

SEE 6220,160D #0001 - #0016

1шт.

*-1

71FT-71012

CABIN SUB ASSY

SEE 6220,160D #0017

1шт.

*-2

20FT-31000

ELEC CABIN GROUP

SEE 2050 #0001

1шт.

*-3

71FT-75010

TILT BLOCK ASSY

#0001

1шт.

1

71FT-75101

TILT BLOCK WA

1шт.

2

F12200190

RUBBER-MOUNTING

4шт.

3

S035-082026

BOLT-W/WASHER

16шт.

4

S017-161106

BOLT-HEX

4шт.

5

S411-160006

WASHER-SPRING

4шт.

6

S403-161006

WASHER-PLAIN

4шт.

7

FDE0100110-DA

WASHER-OVERLOAD

4шт.

8

71E1-60340

HAMMER-SAFETY

100D #0019

1шт.

8

71E1-60340

HAMMER-SAFETY

120D #0005

1шт.

8

71E1-60340

HAMMER-SAFETY

135D #0007

1шт.

8

71E1-60340

HAMMER-SAFETY

160D #0013

1шт.

9

S141-040106

SCREW-FLAT HD

100D #0019

1шт.

9

S141-040106

SCREW-FLAT HD

120D #0005

1шт.

9

S141-040106

SCREW-FLAT HD

135D #0007

1шт.

9

S141-040106

SCREW-FLAT HD

160D #0013

1шт.
