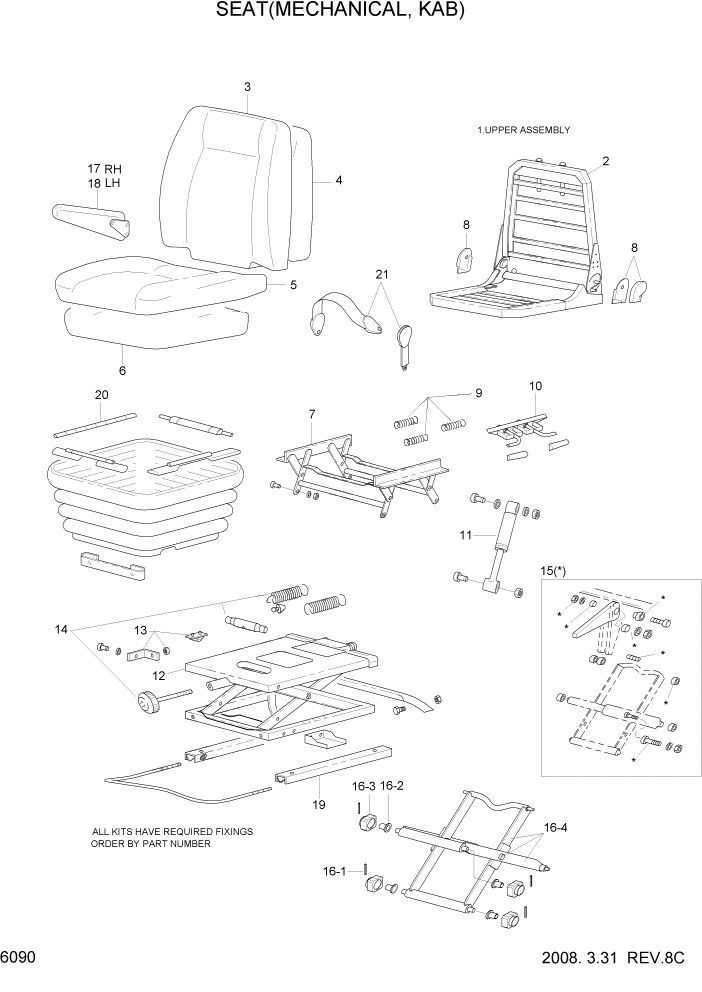

Запчасти Hyundai 100/120/130/160D-7 PAGE 6090 SEAT(MECHANICAL, KAB) СТРУКТУРА

*

71L1-16550

SEAT ASSY-2",STATIC

LEATHER

1шт.

1

ZUAQ-00043

UPPER ASSY

1шт.

2

ZUAQ-00002

FRAME ASSY KIT

1шт.

3

ZUAQ-00003

BACK COVER ASSY KIT

1шт.

4

ZUAQ-00005

BACK FOAM KIT

1шт.

5

ZUAQ-00006

SEAT COVER ASSY KIT

1шт.

6

ZUAQ-00008

SEAT FOAM KIT

1шт.

7

ZUAQ-00009

HEIGHT RISER KIT

1шт.

8

ZUAQ-00044

KIT-HANDLE ASSY

1шт.

9

ZUAQ-00012

HEIGHT RISER SPRING KIT

1шт.

10

ZUAQ-00013

HEIGHT RISER LATCH KIT

1шт.

11

ZUAQ-00045

KIT-DAMPER

1шт.

12

ZUAQ-00046

KIT-SUSPENSION COVER

1шт.

13

ZUAQ-00016

UP STOP/BUMP STOP KIT

1шт.

14

ZUAQ-00047

KIT-WEIGHT ADJUSTER

1шт.

15

ZUAQ-00048

KIT-LVR/CENTER PIVOT

1шт.

16

ZUAQ-00049

KIT-BEARING

1шт.

16-1

ZUAQ-00050

PIN-ROLL

4шт.

16-2

ZUAQ-00051

BEARING-FLANGED

4шт.

16-3

ZUAQ-00052

SUPPORT-HALF BEARING

4шт.

16-4

ZUAQ-00048

KIT-LVR/CENTER PIVOT

4шт.

17

ZUAQ-00020

ARMREST KIT-RH

1шт.

18

ZUAQ-00021

ARMREST KIT-LH

1шт.

19

ZUAQ-00022

FORE & AFT ADJUST KIT

1шт.

20

ZUAQ-00053

KIT-SUSPENSION COVER

1шт.

N21

@

T BELT KIT-2" STATIC

NOT #0001

1шт.
