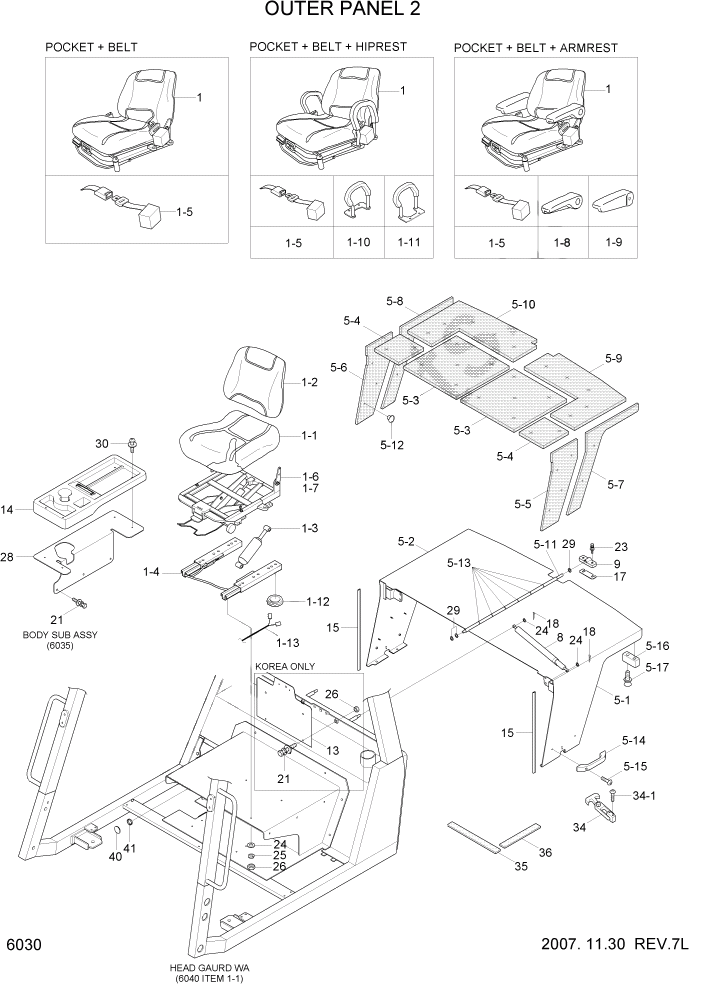

Запчасти Hyundai 80D-7 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71FG-10520

SEAT ASSY(PKT)

W/O OPSS

1шт.

1

71FG-10530

SEAT ASSY(PKT+BT)

W/O OPSS

1шт.

1

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O OPSS

1шт.

1

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O OPSS

1шт.

1

71FH-10510

SEAT ASSY(PKT)

TRAVEL OPSS

1шт.

1

71FH-10520

SEAT ASSY(PKT+BT)

TRAVEL OPSS

1шт.

1

71FH-10530

SEAT ASSY(PKT+BT+HR)

TRAVEL OPSS

1шт.

1

71FH-10540

SEAT ASSY(PKT+BT+AR)

TRAVEL OPSS

1шт.

1-1

H31013-100C

CUSHION ASSY

1шт.

1-2

H31013-200B

BACK ASSY

1шт.

1-3

H31013-360

SHOCK ABSORBER ASSY

1шт.

1-4

H31013-600B

SLIDE TRACK ASSY

1шт.

1-5

89890-8A610

BELT-SEAT

WITH BELT

1шт.

1-6

H31023-300G

SUSPENSION

W/O OPSS

1шт.

1-7

H31023-301G

SUSPENSION

TRAVEL OPSS

1шт.

1-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST

1шт.

1-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST

1шт.

1-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST

1шт.

1-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST

1шт.

1-12

310006540

SWITCH-SEAT

TRAVEL OPSS

1шт.

1-13

B51800050

HARNESS-SEAT

TRAVEL OPSS

1шт.

5

71FQ-10702

RADIATOR COVER SUB

1шт.

5-1

71FQ-10173

COVER-RADIATOR(LH)

1шт.

5-2

71FQ-10183

COVER-RADIATOR(RH)

1шт.

5-3

71FQ-10711

SPONGE

2шт.

5-4

71FQ-10721

SPONGE

2шт.

5-5

71FQ-10732

SPONGE

1шт.

5-6

71FQ-10742

SPONGE

1шт.

5-7

71FQ-10752

SPONGE

1шт.

5-8

71FQ-10762

SPONGE

1шт.

5-9

71FQ-10772

SPONGE

1шт.

5-1

71FQ-10782

SPONGE

1шт.

5-11

71FQ-10581

ROD

1шт.

5-12

71EM-51580

CAP-STUD BOLT

36шт.

5-13

P392-120000

WASHER-COPPER

6шт.

5-14

E171-1147

HANDLE

2шт.

5-15

S161-050166

SCREW-CROSS, ROUND

2шт.

5-16

F12100190

CUSHION

2шт.

5-17

S132-051526

SCREW-W/WASHER

4шт.

8

71FQ-10221

GAS SPRING

2шт.

9

71FQ-10641

CLAMP

1шт.

13

71FQ-10310

LICENSE PLATE

GENERAL,KOREA

1шт.

13

71FQ-10810

LICENSE PLATE

CABIN,KOREA

1шт.

14

71FQ-10322

TRAY ASSY

SEE 6035 #0002

1шт.

15

S771-002500

WEATHER STRIP

2шт.

17

71FQ-10241

SHIM(1.6T)

1.6T

1шт.

17

71FQ-10251

SHIM(3.2T)

3.2T

1шт.

18

S501-110002

PIN-SELF LOCKING

4шт.

21

S035-081526

BOLT-W/WASHER

SEE 6035 #0002

3шт.

21

S035-081526

BOLT-W/WASHER

KOREA

2шт.

23

S037-122526

BOLT-W/WASHER

2шт.

24

S403-082006

WASHER-PLAIN

8шт.

25

S411-080006

WASHER-SPRING

4шт.

26

S205-081006

NUT-HEX

4шт.

28

71FQ-10361

BRACKET-TRAY

SEE 6035 #0002

1шт.

29

S403-122006

WASHER-PLAIN

3шт.

30

S141-060156

SCREW-FLAT HD

SEE 6035 #0002

4шт.

34

71FK-10150

LATCH

2шт.

34-1

S131-052066

SCREW-W/WASHER

2шт.

35

41FQ-00461

SEAL-RUBBER

2шт.

36

41FQ-00471

SEAL-RUBBER

2шт.

40

FHC0904100

RUBBER-STAY

W/O OPSS

1шт.

41

S681-230800

GROMMET

TRAVEL OPSS

1шт.
