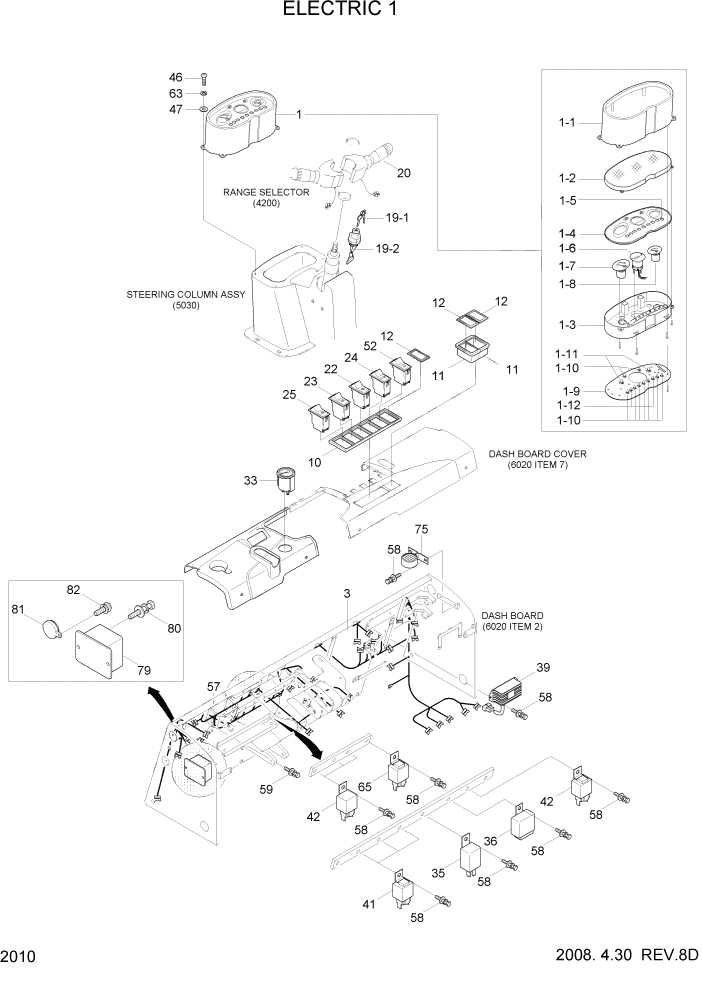

Запчасти Hyundai 80D-7 PAGE 2010 ELECTRIC 1 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

F14870002

PANEL-OPERATING(24V)

SEE 2015 #0001

1шт.

N1-1

F12870020

HOOD

NOT

1шт.

N1-2

F12870030

GLASS-WINDOW

NOT

1шт.

N1-3

F12870040

CASE-REAR

NOT

1шт.

N1-4

F12870050

PANEL-RAISED

NOT

1шт.

N1-5

F14870030

INDICATOR LENS

NOT

1шт.

N1-6

F14870040

HOUR METER

NOT

1шт.

N1-7

F12870080

METER-WATER TEMP

NOT

1шт.

N1-8

F12870090

GAUGE-FUEL

NOT

1шт.

N1-9

F12870100

PCB-MAIN BOARD

NOT

1шт.

1-1

265155014

BULB-24V/1.4W

9шт.

1-11

265155030

BULB-24V/3.0W

2шт.

1-12

265155130

BULB-24V/3.0W

2шт.

3

28FQ-11020

HARNESS-DASHBOARD

SEE 2015 #0001

1шт.

10

21E6-10470

FRAME-MOUNTING

SEE 2015 #0001

1шт.

11

21E6-10680

PIECE-END

SEE 2015 #0001

2шт.

12

21E6-10460

COVER

SEE 2015 #0001

4шт.

19

21FJ-10051

SWITCH-START

SEE 2015 #0001

1шт.

19-1

21FJ-10151

KEY ASSY

2шт.

19-2

21FJ-10060

HARNESS-START SW

1шт.

20

F14830000

SWITCH-COMBINATION

SEE 2015 #0001

1шт.

22

21E6-30560

SWITCH-INCHING

SEE 2015 #0001

1шт.

23

21FQ-10220

SWITCH-AUTO

SEE 2015 #0001

1шт.

24

21E6-30410

SWITCH-WORK LIGHT

SEE 2015 #0001

1шт.

25

21E6-30570

SWITCH-HAZARD

OPT

1шт.

33

21FQ-10510

GAUGE-T/M OIL TEMP

SEE 2015 #0001

1шт.

35

21ER-60702

FLASHER UNIT ASSY

SEE 2015 #0001

1шт.

36

F12860010

DETECTOR

SEE 2015 #0001

1шт.

39

21FQ-10320

CONVERTER

SEE 2015 #0001

1шт.

41

E125-2545

RELAY-5P

SEE 2015 #0001

3шт.

42

21E4-0011

RELAY-4P

SEE 2015 #0001

4шт.

46

S161-040156

SCREW-CROSS R/ROUND

SEE 2015 #0001

4шт.

47

S403-041006

WASHER-PLAIN

SEE 2015 #0001

4шт.

52

21E6-30440

SWITCH-BEACON

OPT

1шт.

57

S593-001302

CLIP-HARNESS

1шт.

58

S035-061526

BOLT-W/WASHER

2шт.

59

S035-081526

BOLT-W/WASHER

1шт.

63

S411-040006

WASHER-SPRING

SEE 2015 #0001

4шт.

65

XJAF-01172

TIMER-GLOW

SEE 2015 #0001

1шт.

75

25FQ-10290

ALARM

1шт.

79

21FU-10610

OPSS UNIT

TRAVEL OPSS #0004

1шт.

79

21FU-10612

OPSS UNIT

TRAVEL OPSS #0005

1шт.

80

S035-061526

BOLT-W/WASHER

TRAVEL OPSS

3шт.

81

21FQ-10810

BUZZER-24V,INTERMITTENT

TRAVEL OPSS

1шт.

82

S161-050206

SCREW-CROSS R/ROUND

TRAVEL OPSS

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
