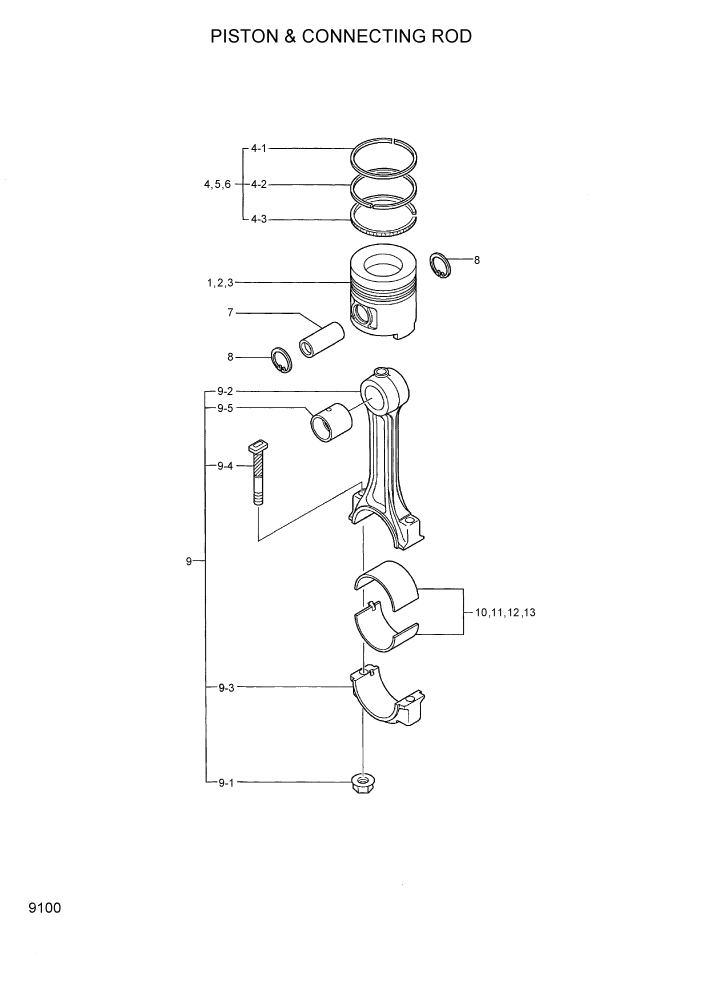

Запчасти Hyundai 80D-7 PAGE 9100 PISTON & CONNECTING ROD ДВИГАТЕЛЬ БАЗА

1

XJAF-00646

PISTON

STD

6шт.

2

XJAF-00647

PISTON

OS=0.25

6шт.

3

XJAF-00648

PISTON

OS=0.50

6шт.

4

XJAF-01114

RING SET,PISTON

STD

6шт.

N4-1

@

RING-NO1

NOT

6шт.

N4-2

@

RING-NO2

NOT

6шт.

N4-3

@

RING-NO3

NOT

6шт.

5

XJAF-01115

RING SET,PISTON

OS=0.25

6шт.

6

XJAF-01116

RING SET,PISTON

OS=0.50

6шт.

7

XJAF-01117

PIN,PISTON

6шт.

8

XJAF-00653

RING-SNAP

12шт.

9

XJAF-00654

ROD ASSY-CON ROD

6шт.

9-1

XJAF-00655

NUT-CONNECTING ROD

12шт.

N9-2

@

CONNECTING ROD

NOT

6шт.

N9-3

@

CAP-CONN ROD

NOT

6шт.

9-4

XJAF-00656

BOLT-CONNECTING ROD

12шт.

9-5

XJAF-00657

BUSHING-CON ROD

6шт.

10

XJAF-01118

BEARING SET-C/ROD

STD

1шт.

11

XJAF-01119

BEARING SET-C/ROD

US=0.25

1шт.

12

XJAF-01120

BEARING SET-C/ROD

US=0.50

1шт.

13

XJAF-01121

BEARING SET-C/ROD

US=0.75

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
