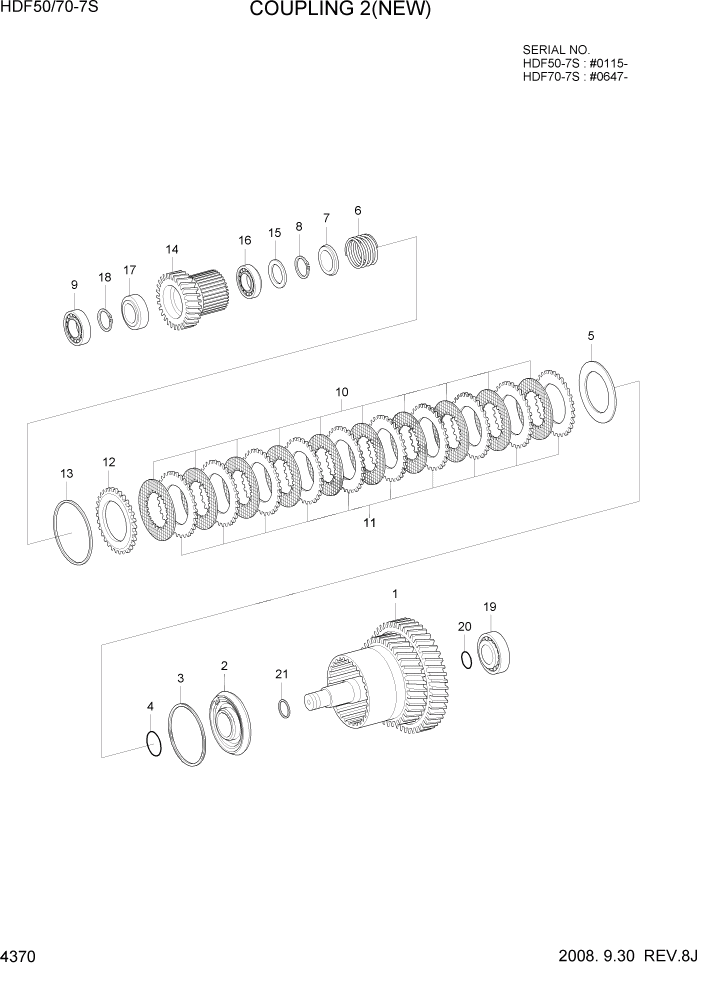

Запчасти Hyundai HDF50/HDF70-7S PAGE 4370 COUPLING 2(NEW) СИЛОВАЯ СИСТЕМА

*

@

TRANSMISSION

NOT #0115

1шт.

*

@

TRANSMISSION

NOT #0647

1шт.

1

ZGAQ-03082

COUPLING

1шт.

2

ZGAQ-03003

PISTON

1шт.

3

ZGAQ-03004

O-RING

1шт.

4

ZGAQ-03122

O-RING

1шт.

5

ZGAQ-03083

CUP SPRING

1шт.

6

ZGAQ-03005

SPRING-COMP

1шт.

7

ZGAQ-03006

SPRING-COMP

1шт.

8

ZGAQ-00054

RING-RETAINING

1шт.

9

ZGAQ-03080

TAPER ROLLER BEARING

1шт.

10

ZGAQ-03009

DISC-INNER CLUTCH

10шт.

11

ZGAQ-03010

DISC-OUTER CLUTCH

10шт.

12

ZGAQ-03011

SHIM-END

1шт.

13

ZGAQ-03012

SNAP RING

A=2.0

1шт.

13

ZGAQ-03013

SNAP RING

A=2.5

1шт.

13

ZGAQ-03123

SNAP RING

A=3.0

1шт.

13

ZGAQ-03124

SNAP RING

A=3.5

1шт.

13

ZGAQ-03014

SNAP RING

1шт.

13

ZGAQ-03015

SNAP RING

1шт.

13

ZGAQ-03016

SNAP RING

A=2.25

1шт.

14

ZGAQ-03084

CARRIER-INNER DISC

1шт.

15

ZGAQ-03077

RUNNING DISC

1шт.

16

ZGAQ-03085

TAPER ROLLER BEARING

1шт.

17

ZGAQ-03086

TAPER ROLLER BEARING

1шт.

18

ZGAQ-03087

RETAINING RING

1шт.

18

ZGAQ-03088

RETAINING RING

1шт.

18

ZGAQ-03089

RETAINING RING

1шт.

18

ZGAQ-03090

RETAINING RING

1шт.

18

ZGAQ-03091

RETAINING RING

1шт.

18

ZGAQ-03092

RETAINING RING

1шт.

18

ZGAQ-03093

RETAINING RING

1шт.

18

ZGAQ-03094

RETAINING RING

1шт.

18

ZGAQ-03095

RETAINING RING

1шт.

18

ZGAQ-03096

RETAINING RING

1шт.

19

ZGAQ-03097

ROLLER BEARING

1шт.

20

ZGAQ-03081

PISTON RING

2шт.

21

ZGAQ-03127

PISTON RING

2шт.
