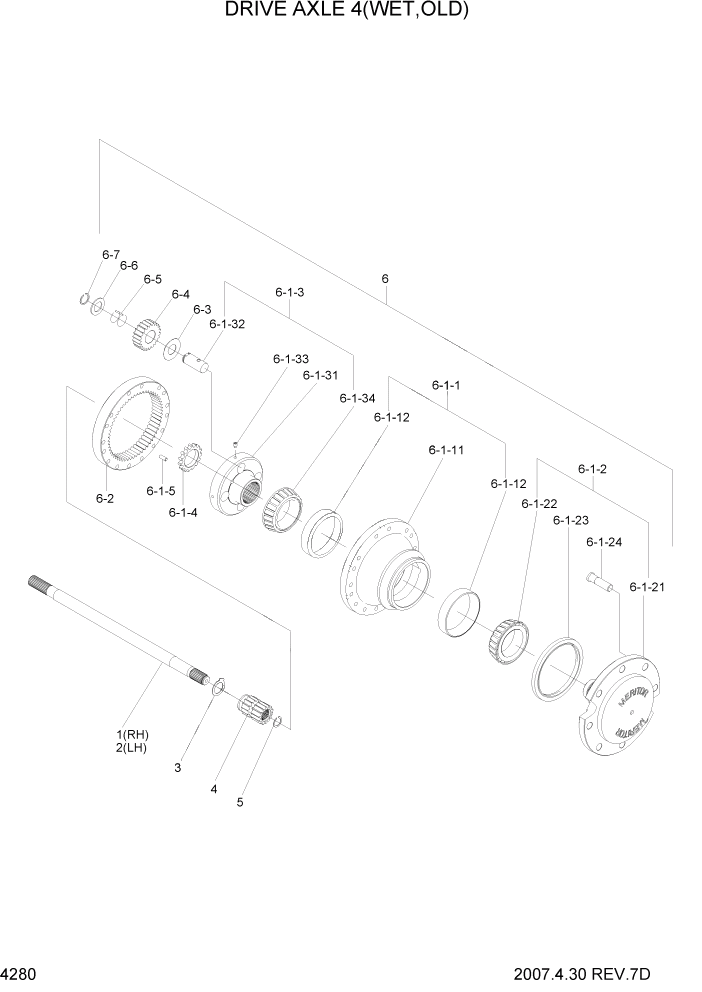

Запчасти Hyundai HDF50/HDF70-7S PAGE 4280 DRIVE AXLE 4(WET,OLD) СИЛОВАЯ СИСТЕМА

*

@

DRIVE AXLE

NOT #0047

1шт.

*

@

DRIVE AXLE

NOT #0230

1шт.

1

XKBX-00067

SHAFT-AXLE RH

1шт.

2

XKBX-00068

SHAFT-AXLE LH

1шт.

3

XKBX-00073

WASHER-THRUST

2шт.

4

XKBX-00074

GEAR-PLANETARY SUN

2шт.

5

XKBX-00075

RING-SANP

2шт.

6

XKBX-00076

SHAFT-OUT PLANET ASSY

2шт.

6-1

XKBX-00077

SHAFT-OUTPUT ASSY

2шт.

6-1-1

XKBX-00078

CASE ASSY-BRG

2шт.

6-1-11

XKBX-00079

CASE-BRG

2шт.

6-1-12

XKBX-00080

CUP-BEARING

4шт.

6-1-2

XKBX-00081

SHAFT OUTPUT ASSY

2шт.

6-1-21

XKBX-00082

SHAFT OUTPUT

2шт.

6-1-22

XKBX-00083

CONE-BEAIRNG

2шт.

6-1-23

XKBX-00084

SEAL ASSY-OIL

HDF50-7S

2шт.

6-1-23

XKBX-00101

SEAL ASSY-OIL

HDF50-7S #0001

2шт.

6-1-23

XKBX-00084

SEAL ASSY-OIL

HDF70-7S

2шт.

6-1-23

XKBX-00101

SEAL ASSY-OIL

HDF70-7S #0001

2шт.

6-1-24

XKBX-00085

STUD-WHEEL

16шт.

6-1-3

XKBX-00086

SPIDER ASSY-PLANETARY

2шт.

6-1-31

XKBX-00087

SPIDER-PLANETARY GEAR

2шт.

6-1-32

XKBX-00088

SHAFT-PINION,PLANETARY

8шт.

6-1-33

XKBX-00089

SCREW-SET

8шт.

6-1-34

XKBX-00083

CONE-BEAIRNG

2шт.

6-1-4

XKBX-00090

NUT-WHEEL BRG

2шт.

6-1-5

XKBX-00091

SCREW-SPECIAL

2шт.

6-2

XKBX-00092

GEAR-PLANETARY RING

2шт.

6-3

XKBX-00093

WASHER-THRUST

8шт.

6-4

XKBX-00094

PINION-PLANETARY

8шт.

6-5

XKBX-00095

ROLLER

232шт.

6-6

XKBX-00096

WASHER-THRUST

8шт.

6-7

XKBX-00097

RING-SNAP

8шт.
