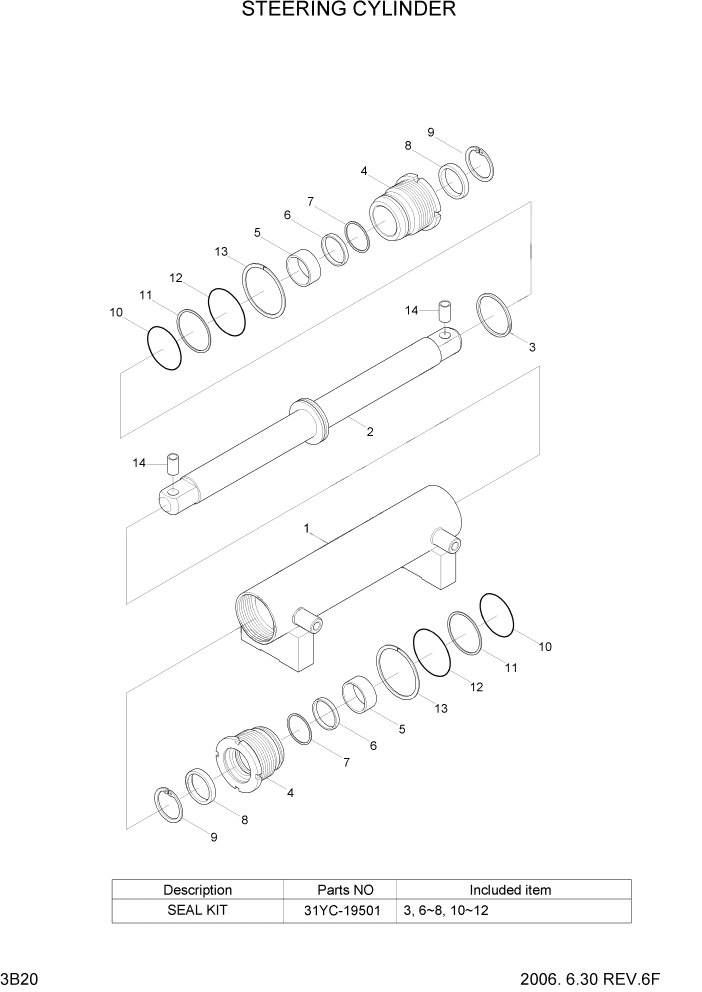

Запчасти Hyundai HDF50/HDF70-7S PAGE 3B20 STEERING CYLINDER ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31FQ-09001

STEERING CYLINDER ASSY

HDF50-7S #0001

1шт.

*

31FQ-09002

STEERING CYLINDER ASSY

HDF50-7S #0002 - #0002

1шт.

*

31FQ-09003

STEERING CYLINDER ASSY

HDF50-7S #0003

1шт.

*

31FQ-09001

STEERING CYLINDER ASSY

HDF70-7S #0001

1шт.

*

31FQ-09002

STEERING CYLINDER ASSY

HDF70-7S #0002 - #0002

1шт.

*

31FQ-09003

STEERING CYLINDER ASSY

HDF70-7S #0003

1шт.

1

31Y3-23120

TUBE ASSY

HDF50-7S #0001

1шт.

1

31Y3-23121

TUBE ASSY

HDF50-7S #0002

1шт.

1

31Y3-23120

TUBE ASSY

HDF70-7S #0001

1шт.

1

31Y3-23121

TUBE ASSY

HDF70-7S #0002

1шт.

2

31Y3-23160

ROD ASSY

1шт.

K3

Y410-080000

SEAL-PISTON

HDF50-7S #0002

1шт.

K3

31YC-99H50

SEAL-PISTON

HDF50-7S #0003

1шт.

K3

Y410-080000

SEAL-PISTON

HDF70-7S #0002

1шт.

K3

31YC-99H50

SEAL-PISTON

HDF70-7S #0003

1шт.

4

31Y3-19480

GLAND

2шт.

5

S731-055030

BUSHING-DU

2шт.

K6

Y200-055011

SEAL-ROD

2шт.

K7

Y180-055020

RING-BACK UP

2шт.

K8

Y110-055011

WIPER-DUST

2шт.

9

Y190-069000

RING-SNAP

2шт.

K10

S632-075004

O-RING

2шт.

K11

S642-075003

RING-BACK UP

2шт.

K12

S632-080004

O-RING

2шт.

13

31YC-67010

WASHER-LOCK

2шт.

14

31YC-19020

BUSH-PIN

2шт.

K

31YC-19500

SEAL KIT

HDF50-7S,ILLUST #0002

1шт.

K

31YC-19501

SEAL KIT

HDF50-7S,ILLUST #0003

1шт.

K

31YC-19500

SEAL KIT

HDF70-7S,ILLUST #0002

1шт.

K

31YC-19501

SEAL KIT

HDF70-7S,ILLUST #0003

1шт.
