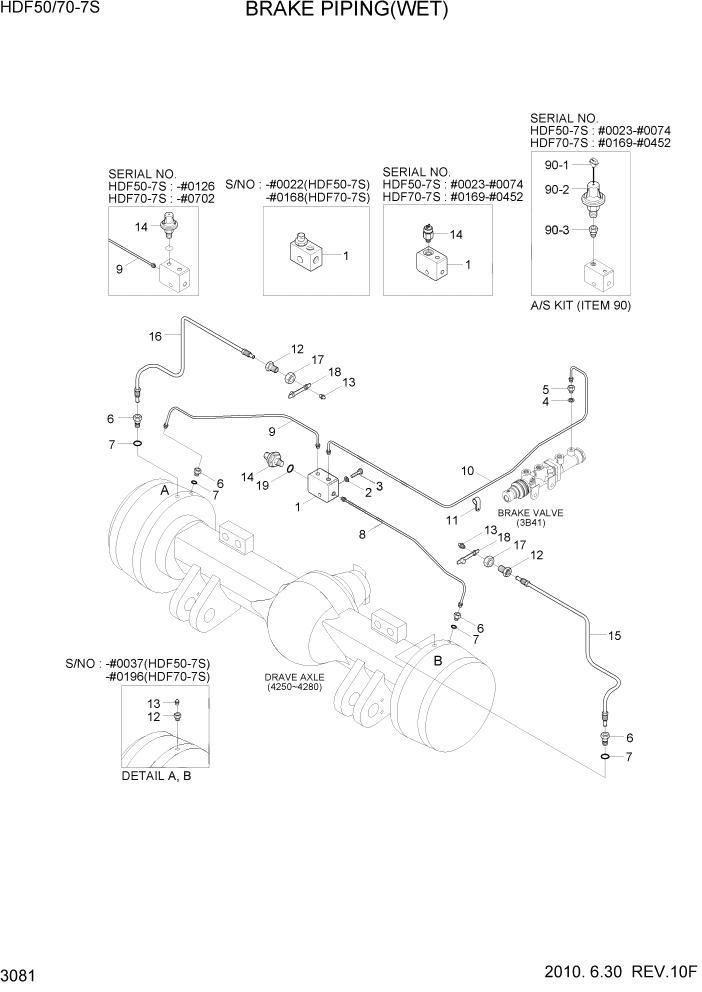

Запчасти Hyundai HDF50/HDF70-7S PAGE 3081 BRAKE PIPING(WET, KOREA) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

81FQ-60060

BLOCK-3WAY

HDF50-7S #0022

1шт.

1

81FQ-60080

BLOCK-3WAY

HDF50-7S #0023 - #0037

1шт.

1

87FQ-60020

BLOCK-3WAY

HDF50-7S #0038 - #0074

1шт.

1

87FQ-60021

BLOCK-3WAY

HDF50-7S #0075 - #0117

1шт.

1

87FQ-60022

BLOCK-3WAY

HDF50-7S #0118 - #0126

1шт.

1

87FQ-60120

BLOCK-3WAY

HDF50-7S #0127

1шт.

1

81FQ-60060

BLOCK-3WAY

HDF70-7S #0168

1шт.

1

81FQ-60080

BLOCK-3WAY

HDF70-7S #0169 - #0196

1шт.

1

87FQ-60020

BLOCK-3WAY

HDF70-7S #0197 - #0452

1шт.

1

87FQ-60021

BLOCK-3WAY

HDF70-7S #0453 - #0684

1шт.

1

87FQ-60022

BLOCK-3WAY

HDF70-7S #0685 - #0702

1шт.

1

87FQ-60120

BLOCK-3WAY

HDF70-7S #0703

1шт.

2

S411-080006

WASHER-SPRING

1шт.

3

S015-080456

BOLT-HEX

1шт.

4

P392-120000

WASHER-COPPER

1шт.

5

81FQ-60010

FITTING

HDF50-7S #0037

1шт.

5

87FQ-60010

FITTING

HDF50-7S #0038

1шт.

5

81FQ-60010

FITTING

HDF70-7S #0196

1шт.

5

87FQ-60010

FITTING

HDF70-7S #0197

1шт.

6

81FQ-60020

FITTING

HDF50-7S #0037

2шт.

6

81FQ-60020

FITTING

HDF50-7S #0038

4шт.

6

81FQ-60020

FITTING

HDF70-7S #0196

2шт.

6

81FQ-60020

FITTING

HDF70-7S #0197

4шт.

7

S611-012001

O-RING

HDF50-7S #0037

2шт.

7

S611-012001

O-RING

HDF50-7S #0038

4шт.

7

S611-012001

O-RING

HDF70-7S #0196

2шт.

7

S611-012001

O-RING

HDF70-7S #0197

4шт.

8

81FQ-60030

PIPE ASSY-LH

HDF50-7S #0037

1шт.

8

81FQ-60031

PIPE ASSY-LH

HDF50-7S #0038 - #0074

1шт.

8

81FQ-60032

PIPE ASSY-LH

HDF50-7S #0075

1шт.

8

81FQ-60030

PIPE ASSY-LH

HDF70-7S #0196

1шт.

8

81FQ-60031

PIPE ASSY-LH

HDF70-7S #0197 - #0452

1шт.

8

81FQ-60032

PIPE ASSY-LH

HDF70-7S #0453

1шт.

9

81FQ-60040

PIPE ASSY-RH

HDF50-7S #0037

1шт.

9

81FQ-60041

PIPE ASSY-RH

HDF50-7S #0038 - #0074

1шт.

9

81FQ-60043

PIPE ASSY-RH

HDF50-7S #0075 - #0126

1шт.

9

81FQ-60140

PIPE ASSY-RH

HDF50-7S #0127

1шт.

9

81FQ-60040

PIPE ASSY-RH

HDF70-7S #0196

1шт.

9

81FQ-60041

PIPE ASSY-RH

HDF70-7S #0197 - #0452

1шт.

9

81FQ-60043

PIPE ASSY-RH

HDF70-7S #0453 - #0702

1шт.

9

81FQ-60140

PIPE ASSY-RH

HDF70-7S #0703

1шт.

10

81FQ-60051

PIPE ASSY

HDF50-7S #0037

1шт.

10

87FQ-60040

PIPE ASSY

HDF50-7S #0038

1шт.

10

81FQ-60051

PIPE ASSY

HDF70-7S #0196

1шт.

10

87FQ-60040

PIPE ASSY

HDF70-7S #0197

1шт.

11

81F8-40790

CLAMP

HDF50-7S #0037

1шт.

11

S543-080002

CLAMP-TUBE

HDF50-7S #0038

1шт.

11

81F8-40790

CLAMP

HDF70-7S #0196

1шт.

11

S543-080002

CLAMP-TUBE

HDF70-7S #0197

1шт.

12

81FV-60050

FITTING

HDF50-7S #0037

2шт.

12

81FV-60080

FITTING

HDF50-7S #0038

2шт.

12

81FV-60050

FITTING

HDF70-7S #0196

2шт.

12

81FV-60080

FITTING

HDF70-7S #0197

2шт.

13

81F6-39370

BLEED-AIR

2шт.

14

31L7-41030

SWITCH-PRESSURE

HDF50-7S #0023 - #0074

1шт.

14

81FH-47120

SWITCH-PRESSURE

HDF50-7S #0075 - #0126

1шт.

14

81FQ-47120

SWITCH-PRESSURE

HDF50-7S #0127

1шт.

14

31L7-41030

SWITCH-PRESSURE

HDF70-7S #0169 - #0452

1шт.

14

81FH-47120

SWITCH-PRESSURE

HDF70-7S #0453 - #0702

1шт.

14

81FQ-47120

SWITCH-PRESSURE

HDF70-7S #0703

1шт.

15

81FQ-60110

PIPE ASSY-LH

HDF50-7S #0038

1шт.

15

81FQ-60110

PIPE ASSY-LH

HDF70-7S #0197

1шт.

16

81FQ-60120

PIPE ASSY-RH

HDF50-7S #0038

1шт.

16

81FQ-60120

PIPE ASSY-RH

HDF70-7S #0197

1шт.

17

S205-161006

NUT-HEX

HDF50-7S #0038

2шт.

17

S205-161006

NUT-HEX

HDF70-7S #0197

2шт.

18

81FY-40020

CAP-BREATHER

HDF50-7S #0038

2шт.

18

81FY-40020

CAP-BREATHER

HDF70-7S #0197

2шт.

19

S611-011001

O-RING

HDF50-7S #0127

1шт.

19

S611-011001

O-RING

HDF70-7S #0703

1шт.

90

27FQ-99990

KIT-STOP LAMP PRESSURE

HDF50-7S,A/S #0023 - #0074

1шт.

90

27FQ-99990

KIT-STOP LAMP PRESSURE

HDF70-7S,A/S #0169 - #0452

1шт.

90-1

27FQ-19010

HARNESS-EXTENSION

1шт.

90-2

81FH-47120

SWITCH-PRESSURE

1шт.

90-3

81HA-60080

FITTING

1шт.
