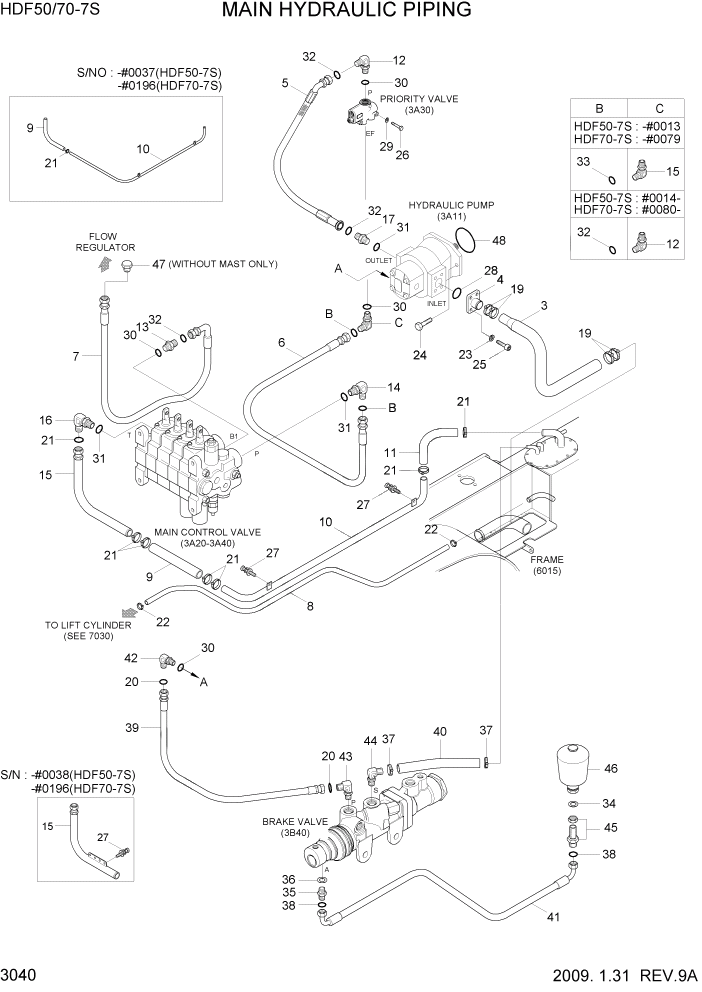

Запчасти Hyundai HDF50/HDF70-7S PAGE 3040 MAIN HYDRAULIC PIPING ГИДРАВЛИЧЕСКАЯ СИСТЕМА

3

31FQ-20031

HOSE-SUCTION

HDF50-7S #0086

1шт.

3

31FQ-20032

HOSE-SUCTION

HDF50-7S #0087

1шт.

3

31FQ-20031

HOSE-SUCTION

HDF70-7S #0522

1шт.

3

31FQ-20032

HOSE-SUCTION

HDF70-7S #0523

1шт.

4

31FQ-20091

PIPE-SUCTION

1шт.

5

P920-164013

HOSE ASSY-ORFS 0X45

#0116

1шт.

5

P920-164014

HOSE ASSY-ORFS 0X45

HDF50-7S #0117

1шт.

5

P920-164013

HOSE ASSY-ORFS 0X45

#0646

1шт.

5

P920-164014

HOSE ASSY-ORFS 0X45

HDF70-7S #0647

1шт.

6

P910-124020

HOSE ASSY-ORFS 0X0

HDF50-7S #0013

1шт.

6

P910-164020

HOSE ASSY-ORFS 0X0

HDF50-7S #0014 - #0017

1шт.

6

P910-164021

HOSE ASSY-ORFS 0X0

HDF50-7S #0018

1шт.

6

P910-124020

HOSE ASSY-ORFS 0X0

HDF70-7S #0079

1шт.

6

P910-164020

HOSE ASSY-ORFS 0X0

HDF70-7S #0080 - #0120

1шт.

6

P910-164021

HOSE ASSY-ORFS 0X0

HDF70-7S #0121

1шт.

7

P933-164024

HOSE ASSY-ORFS 0X90

1шт.

8

P760-033160

HOSE-RUBBER

#0116

1шт.

8

37FQ-20101

HOSE-RETURN

HDF50-7S #0117

1шт.

8

P760-033160

HOSE-RUBBER

#0672

1шт.

8

37FQ-20101

HOSE-RETURN

HDF70-7S #0673

1шт.

9

31FQ-20050

HOSE-RUBBER LOW

HDF50-7S #0022

1шт.

9

31FQ-20051

HOSE-RUBBER LOW

HDF50-7S #0023 - #0037

1шт.

9

P760-063020

HOSE-RUBBER

HDF50-7S,2SPOOL #0038

1шт.

9

P760-063025

HOSE-RUBBER

HDF50-7S,3SPOOL #0038

1шт.

9

P760-063030

HOSE-RUBBER

HDF50-7S,4SPOOL #0038

1шт.

9

P760-063035

HOSE-RUBBER

HDF50-7S,5SPOOL #0038

1шт.

9

31FQ-20050

HOSE-RUBBER LOW

HDF70-7S #0152

1шт.

9

31FQ-20051

HOSE-RUBBER LOW

HDF70-7S #0153 - #0196

1шт.

9

P760-063020

HOSE-RUBBER

HDF70-7S,2SPOOL #0197

1шт.

9

P760-063025

HOSE-RUBBER

HDF70-7S,3SPOOL #0197

1шт.

9

P760-063030

HOSE-RUBBER

HDF70-7S,4SPOOL #0197

1шт.

9

P760-063035

HOSE-RUBBER

HDF70-7S,5SPOOL #0197

1шт.

10

31FQ-20061

PIPE WA

HDF50-7S #0037

1шт.

10

37FQ-20010

PIPE WA-RETURN

HDF50-7S #0038

1шт.

10

31FQ-20061

PIPE WA

HDF70-7S #0196

1шт.

10

37FQ-20010

PIPE WA-RETURN

HDF70-7S #0197

1шт.

11

31FQ-20070

HOSE-RUBBER LOW

HDF50-7S #0022

1шт.

11

31FQ-20071

HOSE-RUBBER LOW

HDF50-7S #0023 - #0037

1шт.

11

37FQ-20020

HOSE-RETURN

HDF50-7S #0038

1шт.

11

31FQ-20070

HOSE-RUBBER LOW

HDF70-7S #0152

1шт.

11

31FQ-20071

HOSE-RUBBER LOW

HDF70-7S #0153 - #0196

1шт.

11

37FQ-20020

HOSE-RETURN

HDF70-7S #0197

1шт.

12

31FQ-20020

ELBOW-90

HDF50-7S #0013

1шт.

12

31FQ-20020

ELBOW-90

HDF50-7S #0014

2шт.

12

31FQ-20020

ELBOW-90

HDF70-7S #0079

1шт.

12

31FQ-20020

ELBOW-90

HDF70-7S #0080

2шт.

13

31FQ-20110

CONNECTOR

1шт.

14

31FQ-20010

ELBOW-90

HDF50-7S #0013

1шт.

14

31FQ-20011

ELBOW-90

HDF50-7S #0014 - #0037

1шт.

14

37FQ-20040

ELBOW-90D

HDF50-7S #0038

1шт.

14

31FQ-20010

ELBOW-90

HDF70-7S #0079

1шт.

14

31FQ-20011

ELBOW-90

HDF70-7S #0080 - #0196

1шт.

14

37FQ-20040

ELBOW-90D

HDF70-7S #0197

1шт.

15

31LF-30080

ELBOW-90

HDF50-7S #0013

1шт.

15

31FQ-20061

PIPE WA

HDF50-7S #0039

1шт.

15

31LF-30080

ELBOW-90

HDF70-7S #0079

1шт.

15

31FQ-20061

PIPE WA

HDF70-7S #0197

1шт.

16

F14610220

ELBOW

HDF50-7S #0037

1шт.

16

37FQ-20050

ELBOW-90,ORFS

HDF50-7S #0038

1шт.

16

F14610220

ELBOW

HDF70-7S #0196

1шт.

16

37FQ-20050

ELBOW-90,ORFS

HDF70-7S #0197

1шт.

17

X500-310005

CONNECTOR-ORFS

1шт.

18

S621-025001

O-RING

HDF50-7S #0038

1шт.

18

S621-025001

O-RING

HDF70-7S #0197

1шт.

19

S572-750006

CLAMP-HOSE,WIRE TYPE

HDF50-7S #0013

2шт.

19

S572-750006

CLAMP-HOSE,WIRE TYPE

HDF50-7S #0014

4шт.

19

S572-750006

CLAMP-HOSE,WIRE TYPE

HDF70-7S #0079

2шт.

19

S572-750006

CLAMP-HOSE,WIRE TYPE

HDF70-7S #0080

4шт.

20

S621-014001

O-RING

2шт.

21

S572-450006

CLAMP-HOSE,WIRE TYPE

HDF50-7S #0022

4шт.

21

S572-490006

CLAMP-HOSE,WIRE TYPE

HDF50-7S #0023 - #0037

8шт.

21

S572-570006

CLAMP-HOSE,WIRE TYPE

HDF50-7S #0038

8шт.

21

S572-450006

CLAMP-HOSE,WIRE TYPE

HDF70-7S #0152

4шт.

21

S572-490006

CLAMP-HOSE,WIRE TYPE

HDF70-7S #0153 - #0196

8шт.

21

S572-570006

CLAMP-HOSE,WIRE TYPE

HDF70-7S #0197

8шт.

22

S572-320002

CLAMP-HOSE,WIRE TYPE

2шт.

23

S411-12000V

WASHER-SPRING

4шт.

24

S037-123556

BOLT-W/WASHER

#0116

4шт.

24

S017-160356

BOLT-HEX

HDF50-7S #0117

4шт.

24

S037-123556

BOLT-W/WASHER

#0646

4шт.

24

S017-160356

BOLT-HEX

HDF70-7S #0647

4шт.

25

S107-120306

BOLT-SOCKET

HDF50-7S #0013

4шт.

25

S109-12030V

BOLT-SOCKET

HDF50-7S #0014

4шт.

25

S107-120306

BOLT-SOCKET

HDF70-7S #0079

4шт.

25

S109-12030V

BOLT-SOCKET

HDF70-7S #0080

4шт.

26

S015-080652

BOLT-HEX

2шт.

27

S035-082026

BOLT-W/WASHER

HDF50-7S #0001 - #0038

3шт.

27

S035-082026

BOLT-W/WASHER

HDF50-7S #0039

2шт.

27

S035-082026

BOLT-W/WASHER

HDF70-7S #0001 - #0196

3шт.

27

S035-082026

BOLT-W/WASHER

HDF70-7S #0197

2шт.

28

Y172-006004

O-RING

1шт.

29

S411-08000V

WASHER-SPRING

2шт.

30

S611-023001

O-RING

4шт.

31

S611-030001

O-RING

3шт.

32

S621-021001

O-RING

HDF50-7S #0013

3шт.

32

S621-021001

O-RING

HDF50-7S #0014

5шт.

32

S621-021001

O-RING

HDF70-7S #0079

3шт.

32

S621-021001

O-RING

HDF70-7S #0080

5шт.

33

S621-018001

O-RING

HDF50-7S #0013

2шт.

33

S621-018001

O-RING

HDF70-7S #0079

2шт.

34

P391-080000

WASHER-COPPER

1шт.

35

X500-120011

CONNECTOR-ORFS

1шт.

36

P392-140000

WASHER-COPPER

1шт.

37

S572-270006

CLAMP-HOSE,WIRE TYPE

2шт.

38

S621-012001

O-RING

2шт.

39

P930-085017

HOSE ASSY-ORFS 0X90

1шт.

40

8201150230

HOSE-LP

HDF50-7S #0037

1шт.

40

8201150300

HOSE-LP

HDF50-7S #0038

1шт.

40

8201150230

HOSE-LP

HDF70-7S #0196

1шт.

40

8201150300

HOSE-LP

HDF70-7S #0197

1шт.

41

31FQ-10080

HOSE ASSY 90X90

1шт.

42

31FQ-20100

ELBOW-90

1шт.

43

31FQ-10030

ELBOW-90

1шт.

44

31FF-01360

ELBOW-90

1шт.

45

31FQ-10040

CONNECTOR

1шт.

46

31E3-3187

ACCUMULATOR

1шт.

47

X700-100106

PLUG-ORFS

1шт.

48

S632-130001

O-RING

HDF50-7S #0117

1шт.

48

S632-130001

O-RING

HDF70-7S #0647

1шт.
