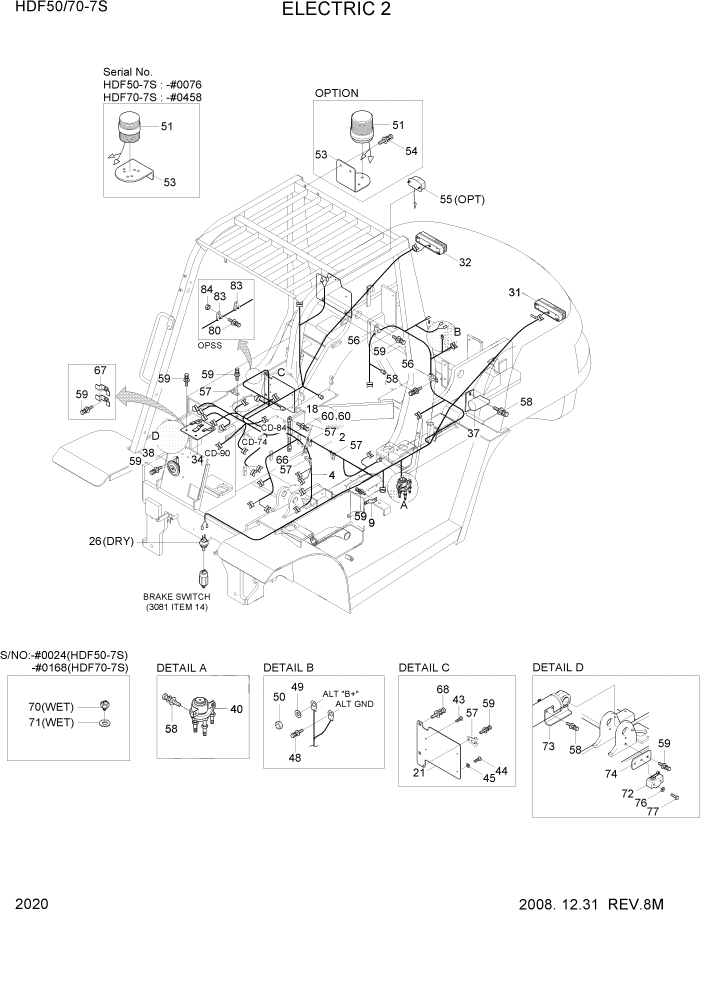

Запчасти Hyundai HDF50/HDF70-7S PAGE 2020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

@

HARNESS-FRAME

NOT

1шт.

4

@

HARNESS-T/M

NOT

1шт.

9

21E7-0612

PLATE-CONNECTOR

2шт.

18

21FQ-10080

STRAP-EARTH

1шт.

21

21FQ-10251

BRACKET-TCU MOUNTING

1шт.

26

F12830090

SWITCH-BRAKE

DRY DRUM BRAKE #0001

1шт.

31

21FQ-10450

REAR COMBI LAMP-LH

1шт.

32

21FQ-10460

REAR COMBI LAMP-RH

1шт.

34

21FQ-10041

BRACKET-CONNECTOR

1шт.

37

21FD-30320

HORN-BACK

HDF50-7S #0043

1шт.

37

21FD-30321

BACKUP ALARM(24V)

HDF50-7S #0044 - #0111

1шт.

37

21FD-30322

BACKUP ALARM(24V)

HDF50-7S #0112

1шт.

37

21FD-30320

HORN-BACK

HDF70-7S #0215

1шт.

37

21FD-30321

BACKUP ALARM(24V)

HDF70-7S #0216 - #0622

1шт.

37

21FD-30322

BACKUP ALARM(24V)

HDF70-7S #0623

1шт.

38

21N5-10060

HORN-HIGH

1шт.

40

21F7-20090

RELAY-START

1шт.

43

S161-050156

SCREW-CROSS R/ROUND

2шт.

44

S161-050206

SCREW-CROSS R/ROUND

2шт.

45

S403-052006

WASHER-PLAIN

2шт.

48

S035-061522

BOLT-W/WASHER

1шт.

49

S403-052002

WASHER-PLAIN

1шт.

50

S205-051002

NUT-HEX

1шт.

51

F23842010

STROBE LAMP-RED

RED,HDF50-7S #0076

1шт.

51

21HA-20320

BEACON LAMP(RED)

RED,HDF50-7S #0077

1шт.

51

F23842010

STROBE LAMP-RED

RED,HDF70-7S #0464

1шт.

51

21HA-20320

BEACON LAMP(RED)

RED,HDF70-7S #0465

1шт.

51

21FG-10820

STROBE LAMP-BLUE

BLUE,HDF70-7S #0146

1шт.

51

21FG-10810

STROBE LAMP-AMBER

AMBER,50,STD #0022 - #0076

1шт.

51

21HA-20310

BEACON LAMP(AMBER)

AMBER,50,STD #0077

1шт.

51-1

21FG-10870

GLOBE-BLUE

BLUE,NOT SHOWN

1шт.

51

21FG-10810

STROBE LAMP-AMBER

AMBER,70,STD #0146 - #0464

1шт.

51

21HA-20310

BEACON LAMP(AMBER)

AMBER,70,STD #0465

1шт.

51

21FG-10820

STROBE LAMP-BLUE

BLUE,HDF50-7S #0022 - #0076

1шт.

51

21HA-20330

BEACON LAMP(BLUE)

BLUE,HDF50-7S #0077

1шт.

51

21FG-10820

STROBE LAMP-BLUE

BLUE,HDF70-7S #0146 - #0464

1шт.

51

21HA-20330

BEACON LAMP(BLUE)

BLUE,HDF70-7S #0465

1шт.

51-1

21FG-10850

GLOBE-RED

NOT SHOWN,50 #0076

1шт.

51-1

21FG-10850

GLOBE-RED

NOT SHOWN,70 #0464

1шт.

51-1

21FG-10860

GLOBE-AMBER

NOT SHOWN,50 #0076

1шт.

51-1

21FG-10860

GLOBE-AMBER

NOT SHOWN,70 #0464

1шт.

51-1

21FG-10870

GLOBE-BLUE

NOT SHOWN,50 #0076

1шт.

51-1

21FG-10870

GLOBE-BLUE

NOT SHOWN,70 #0464

1шт.

51-1

21HA-21120

BEACON LENS(RED)

NOT SHOWN,50 #0077

1шт.

51-1

21HA-21120

BEACON LENS(RED)

NOT SHOWN,70 #0465

1шт.

51-1

21HA-21110

BEACON LENS(AMBER)

NOT SHOWN,50 #0077

1шт.

51-1

21HA-21110

BEACON LENS(AMBER)

NOT SHOWN,70 #0465

1шт.

51-1

21HA-21130

BEACON LENS(BLUE)

NOT SHOWN,50 #0077

1шт.

51-1

21HA-21130

BEACON LENS(BLUE)

NOT SHOWN,70 #0465

1шт.

51-2

21HA-21140

XEON LAMP

NOT SHOWN,50 #0077

1шт.

51-2

21HA-21140

XEON LAMP

NOT SHOWN,70 #0465

1шт.

53

71FE-10150

BRKT-BEACON LAMP

B/LAMP,HDF50-7S #0076

1шт.

53

21HA-20210

PLATE

B/LAMP,HDF50-7S #0077

1шт.

53

71FE-10150

BRKT-BEACON LAMP

B/LAMP,HDF70-7S #0464

1шт.

53

21HA-20210

PLATE

B/LAMP,HDF70-7S #0465

1шт.

54

S037-102026

BOLT-W/WASHER

OPT

2шт.

55

21FE-10310

LAMP-LICENSE

OPT

1шт.

56

S593-000652

CLIP-HARNESS

2шт.

57

S593-001302

CLIP-HARNESS

4шт.

58

S035-061526

BOLT-W/WASHER

HDF50-7S #0003

4шт.

58

S035-061526

BOLT-W/WASHER

HDF50-7S #0004

6шт.

58

S035-061526

BOLT-W/WASHER

HDF70-7S #0038

4шт.

58

S035-061526

BOLT-W/WASHER

HDF70-7S #0039

4шт.

59

S035-081526

BOLT-W/WASHER

HDF50-7S #0003

9шт.

59

S035-081526

BOLT-W/WASHER

HDF50-7S #0004

10шт.

59

S035-081526

BOLT-W/WASHER

HDF70-7S #0038

9шт.

59

S035-081526

BOLT-W/WASHER

HDF70-7S #0039

10шт.

60

S037-102022

BOLT-W/WASHER

2шт.

61

S035-081522

BOLT-W/WASHER

2шт.

66

S593-001702

CLIP-HARNESS

3шт.

67

21N4-01130

PLATE-CLIP

2шт.

68

S037-102526

BOLT-W/WASHER

2шт.

70

31L7-40030

SWITCH-PRESSURE

HDF50-7S, WET #0001 - #0022

1шт.

70

31L7-40030

SWITCH-PRESSURE

HDF70-7S, WET #0001 - #0168

1шт.

71

P392-120000

WASHER-COPPER

HDF50-7S, WET #0001 - #0022

1шт.

71

P392-120000

WASHER-COPPER

HDF70-7S, WET #0001 - #0168

1шт.

72

25FQ-10250

SWITCH-MICRO

HDF50-7S #0004

1шт.

72

25FQ-10250

SWITCH-MICRO

HDF70-7S #0039

1шт.

73

25FQ-10210

BRACKET-TILT S/W

HDF50-7S #0004

1шт.

73

25FQ-10210

BRACKET-TILT S/W

HDF70-7S #0039

1шт.

74

25FQ-10230

BRACKET-TILT S/W MT

HDF50-7S #0004

1шт.

74

25FQ-10230

BRACKET-TILT S/W MT

HDF70-7S #0039

1шт.

76

S403-042006

WASHER-PLAIN

HDF50-7S #0004

2шт.

76

S403-042006

WASHER-PLAIN

HDF70-7S #0039

2шт.

77

S015-040256

BOLT-HEX

HDF50-7S #0004

2шт.

77

S015-040256

BOLT-HEX

HDF70-7S #0039

2шт.

80

S035-061526

BOLT-W/WASHER

HDF50-7S,OPSS #0012

1шт.

80

S035-061526

BOLT-W/WASHER

HDF70-7S,OPSS #0052

1шт.

83

S593-000652

CLIP-HARNESS

HDF50-7S,OPSS #0012

2шт.

83

S593-000652

CLIP-HARNESS

HDF70-7S,OPSS #0052

2шт.

84

S205-061006

NUT-HEX

HDF50-7S,OPSS #0012

1шт.

84

S205-061006

NUT-HEX

HDF70-7S,OPSS #0052

1шт.
