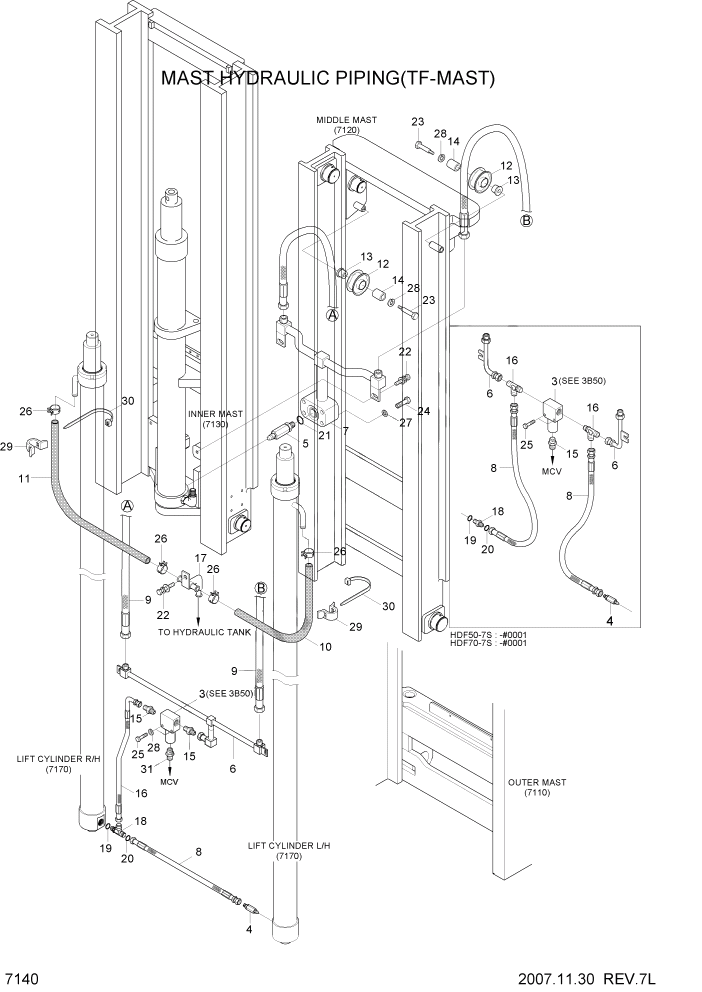

Запчасти Hyundai HDF50/HDF70-7S PAGE 7140 MAST HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

3

@

DOWN CONTROL VALVE

NOT #0001

1шт.

4

33FV-06000

VALVE-VELOCITY FUSE

1шт.

5

33FF-06000

DOWN SAFETY V/V

1шт.

6

33FQ-80060

PIPE WA

HDF50-7S #0001

2шт.

6

33FQ-80061

PIPE WA

HDF50-7S #0002

1шт.

6

33FQ-80060

PIPE WA

HDF70-7S #0001

2шт.

6

33FQ-80061

PIPE WA

HDF70-7S #0002

1шт.

6-1

31FG-10350

CONNECTOR-WELD

HDF50-7S #0001

1шт.

6-1

31FG-10350

CONNECTOR-WELD

HDF70-7S #0001

1шт.

6-2

X610-101106

CONNECTOR-ORFS

HDF50-7S #0001

1шт.

6-2

X610-101106

CONNECTOR-ORFS

HDF70-7S #0001

1шт.

6-3

S621-016001

O-RING

HDF50-7S #0001

1шт.

6-3

S621-016001

O-RING

HDF50-7S #0002

2шт.

6-3

S621-016001

O-RING

HDF70-7S #0001

1шт.

6-3

S621-016001

O-RING

HDF70-7S #0002

2шт.

7

33FQ-80071

PIPE WA

1шт.

7-1

31FG-10230

ELBOW-90D WELD

2шт.

7-2

S621-016001

O-RING

2шт.

8

P910-124014

HOSE ASSY-ORFS 0X0

HDF50-7S #0001

2шт.

8

33FQ-00010

HOSE ASSY-ORFS 0X0

HDF50-7S #0002

1шт.

8

P910-124014

HOSE ASSY-ORFS 0X0

HDF70-7S #0001

2шт.

8

33FQ-00010

HOSE ASSY-ORFS 0X0

HDF70-7S #0002

1шт.

9

P910-104055

HOSE ASSY-ORFS 0X0

TF450,HDF50-7S #0001

2шт.

9

P910-104056

HOSE ASSY-ORFS 0X0

TF450,HDF50-7S #0002

2шт.

9

P910-104055

HOSE ASSY-ORFS 0X0

TF450,HDF70-7S #0001

2шт.

9

P910-104056

HOSE ASSY-ORFS 0X0

TF450,HDF70-7S #0002

2шт.

9

P910-104063

HOSE ASSY-ORFS 0X0

TF500,HDF50-7S #0001

2шт.

9

P910-104064

HOSE ASSY-ORFS 0X0

TF500,HDF50-7S #0002

2шт.

9

P910-104063

HOSE ASSY-ORFS 0X0

TF500,HDF70-7S #0001

2шт.

9

P910-104064

HOSE ASSY-ORFS 0X0

TF500,HDF70-7S #0002

2шт.

9

P910-104070

HOSE ASSY-ORFS 0X0

TF560,HDF50-7S #0001

2шт.

9

P910-104072

HOSE ASSY-ORFS 0X0

TF560,HDF50-7S #0002

2шт.

9

P910-104070

HOSE ASSY-ORFS 0X0

TF560,HDF70-7S #0001

2шт.

9

P910-104072

HOSE ASSY-ORFS 0X0

TF560,HDF70-7S #0002

2шт.

9

P910-104078

HOSE ASSY-ORFS 0X0

TF600,HDF50-7S #0001

2шт.

9

P910-104080

HOSE ASSY-ORFS 0X0

TF600,HDF50-7S #0002

2шт.

9

P910-104078

HOSE ASSY-ORFS 0X0

TF600,HDF70-7S #0001

2шт.

9

P910-104080

HOSE ASSY-ORFS 0X0

TF600,HDF70-7S #0002

2шт.

10

31FF-81140

HOSE-RUBBER

TF450

1шт.

10

31FF-81170

HOSE-RUBBER

TF500

1шт.

10

31FF-81210

HOSE-RUBBER

TF560

1шт.

10

31FF-81240

HOSE-RUBBER

TF600

1шт.

11

31FF-81230

HOSE-RUBBER

TF450

1шт.

11

31FF-81260

HOSE-RUBBER

TF500

1шт.

11

31FF-81300

HOSE-RUBBER

TF560

1шт.

11

31FF-81330

HOSE-RUBBER

TF600

1шт.

12

FMB0200610

PULLEY-HOSE

2шт.

13

33FF-80150

PIN-HOSE PULLEY

2шт.

14

S731-020025

BUSHING-DU

2шт.

15

X500-310005

CONNECTOR-ORFS

HDF50-7S #0001

1шт.

15

X500-310005

CONNECTOR-ORFS

HDF50-7S #0002

2шт.

15

X500-310005

CONNECTOR-ORFS

HDF70-7S #0001

1шт.

15

X500-310005

CONNECTOR-ORFS

HDF70-7S #0002

2шт.

16

31S7-00670

TEE

HDF50-7S #0001

2шт.

16

31FQ-80160

HOSE ASSY-ORFS

HDF50-7S #0002

1шт.

16

31S7-00670

TEE

HDF70-7S #0001

2шт.

16

31FQ-80160

HOSE ASSY-ORFS

HDF70-7S #0002

1шт.

17

31FQ-80010

TEE-RETURN

1шт.

18

X500-110004

CONNECTOR-ORFS

HDF50-7S #0001

1шт.

18

31FQ-80170

TEE

HDF50-7S #0002

1шт.

18

X500-110004

CONNECTOR-ORFS

HDF70-7S #0001

1шт.

18

31FQ-80170

TEE

HDF70-7S #0002

1шт.

19

S631-024004

O-RING

1шт.

20

S621-018001

O-RING

1шт.

21

Y172-003004

O-RING

1шт.

22

S037-102526

BOLT-W/WASHER

HDF50-7S #0001

7шт.

22

S037-102026

BOLT-W/WASHER

HDF50-7S #0002

3шт.

22

S037-102526

BOLT-W/WASHER

HDF70-7S #0001

7шт.

22

S037-102026

BOLT-W/WASHER

HDF70-7S #0002

3шт.

23

S017-120606

BOLT-HEX

2шт.

24

S017-100756

BOLT-HEX

4шт.

25

S017-120756

BOLT-HEX

2шт.

26

S520-027000

CLAMP-HOSE

HDF50-7S #0058

4шт.

26

33HA-83400

HOSE-CLIP

HDF50-7S #0059

4шт.

26

S520-027000

CLAMP-HOSE

HDF70-7S #0313

4шт.

26

33HA-83400

HOSE-CLIP

HDF70-7S #0314

4шт.

27

S411-100006

WASHER-SPRING

4шт.

28

S441-120006

WASHER-HARDENED

2шт.

29

31FB-80080

CLAMP-HOSE

6шт.

30

S552-102370

CLAMP-BAND

HDF50-7S #0001

6шт.

30

S552-102370

CLAMP-BAND

HDF50-7S #0002

8шт.

30

S552-102370

CLAMP-BAND

HDF70-7S #0001

6шт.

30

S552-102370

CLAMP-BAND

HDF70-7S #0002

8шт.

31

33FQ-80081

COVER

HDF50-7S #0001

1шт.

31

31FQ-80180

CONNECTOR

HDF50-7S #0002

1шт.

31

33FQ-80081

COVER

HDF70-7S #0001

1шт.

31

31FQ-80180

CONNECTOR

HDF70-7S #0002

1шт.
