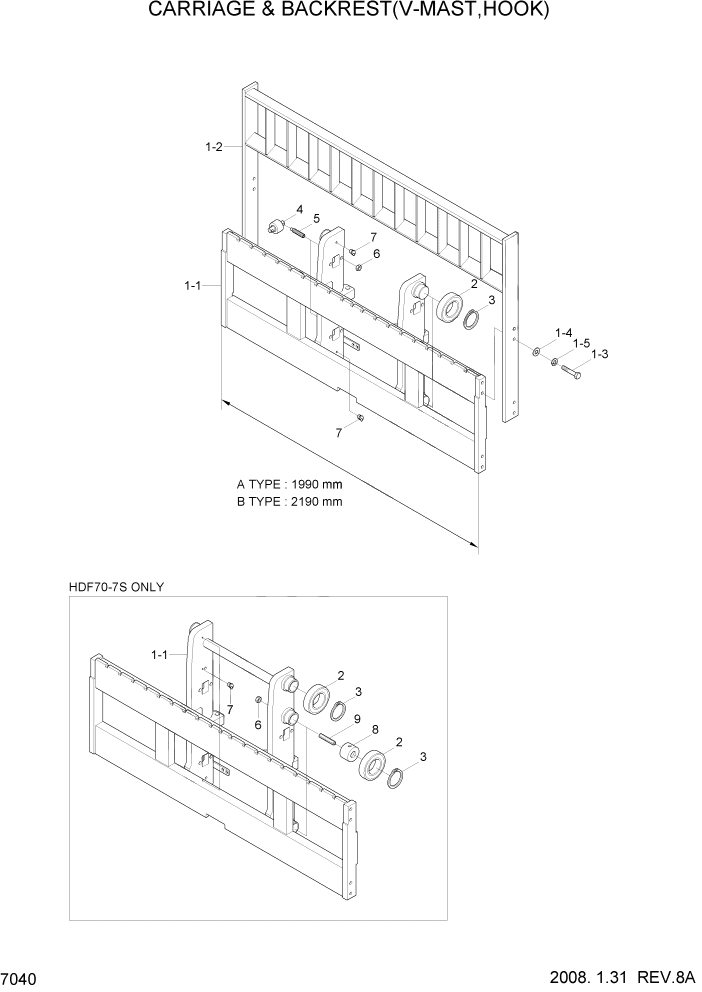

Запчасти Hyundai HDF50/HDF70-7S PAGE 7040 CARRIAGE & BACKREST(V-MAST,HOOK) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

61FQ-29101

CARR & BACKREST SUB

HDF50-7S,A-TYPE

1шт.

1

61FQ-29111

CARR & BACKREST SUB

HDF50-7S,B-TYPE

1шт.

1

61FQ-28100

CARR & BACKREST SUB

HDF70-7S,A-TYPE

1шт.

1

61FQ-28110

CARR & BACKREST SUB

HDF70-7S,B-TYPE

1шт.

1-1

61FQ-29201

CARRIAGE WA

HDF50-7S,A-TYPE

1шт.

1-1

61FQ-29211

CARRIAGE WA

HDF50-7S,B-TYPE

1шт.

1-1

61FQ-28200

CARRIAGE WA

HDF70-7S,A-TYPE

1шт.

1-1

61FQ-28210

CARRIAGE WA

HDF70-7S,B-TYPE

1шт.

1-2

61FF-29301

BACKREST WA

1шт.

1-2

61FF-29521

BACKREST WA

1шт.

1-3

S017-160506

BOLT-HEX

8шт.

1-4

S403-163006

WASHER-PLAIN

8шт.

1-5

S411-160006

WASHER-SPRING

8шт.

2

61FF-18600

LOAD R/BRG ASSY(164.5)

STD,HDF50-7

4шт.

2

61FF-18600

LOAD R/BRG ASSY(164.5)

STD,HDF70-7

6шт.

2

61FF-18610

LOAD R/BRG ASSY(164.0)

50-7S,UNDERSIZE #0115

4шт.

2

61FF-18620

LOAD R/BRG ASSY(165.0)

50-7S,OVERSIZE #0115

4шт.

2

61FF-18610

LOAD R/BRG ASSY(164.0)

70-7S,UNDERSIZE #0647

6шт.

2

61FF-18620

LOAD R/BRG ASSY(165.0)

70-7S,OVERSIZE #0647

6шт.

3

S601-075004

RING-RETAINING

HDF50-7

4шт.

2

61FF-18600

LOAD R/BRG ASSY

4шт.

3

S601-075004

RING-RETAINING

HDF70-7

6шт.

4

63FF-18300

SIDE ROLLER ASSY

HDF50-7S #0071

4шт.

4

63FF-18301

SIDE ROLLER ASSY

HDF50-7S #0072

4шт.

4

63FF-18300

SIDE ROLLER ASSY

HDF70-7S #0431

4шт.

4

63FF-18301

SIDE ROLLER ASSY

HDF70-7S #0432

4шт.

5

61FF-18800

ADJUSTABLE SCREW

8шт.

6

S205-201006

NUT-HEX

8шт.

7

S651-810008

NIPPLE-GREASE

HDF50-7S

4шт.

7

S651-810008

NIPPLE-GREASE

HDF70-7S

6шт.

8

63FF-18100

PLUG-WEAR

HDF70-7S #0121

4шт.

8

63FQ-18100

PLUG-WEAR

HDF70-7S #0122

4шт.

8

63FF-18100

PLUG-WEAR

HDF70-7S #0699

4шт.

8

63FQ-18100

PLUG-WEAR

HDF70-7S #0700

4шт.

9

63FF-18220

SCREW-SET

HDF70-7S

4шт.
